10840.B D2

EAN: 8024482016511

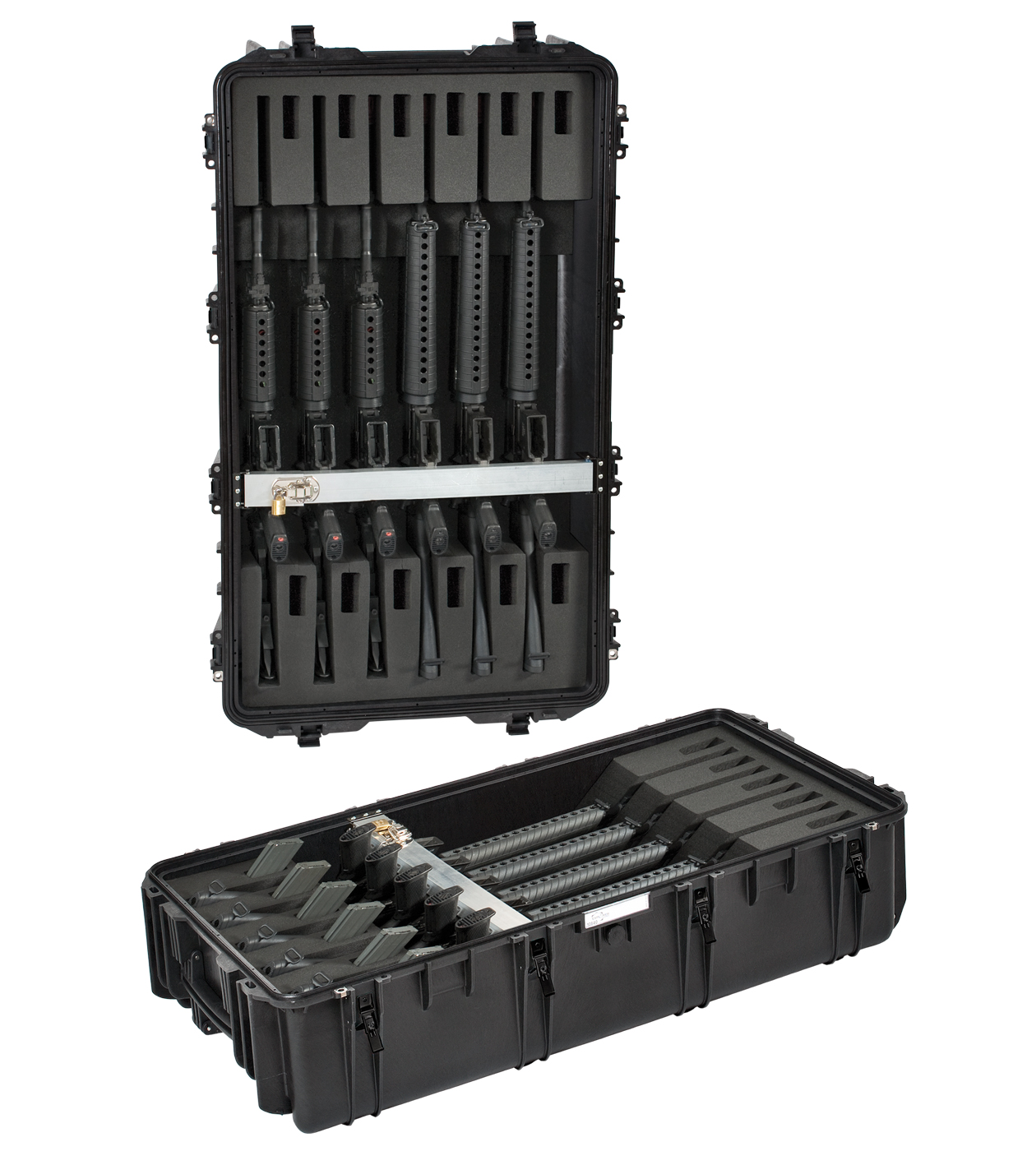

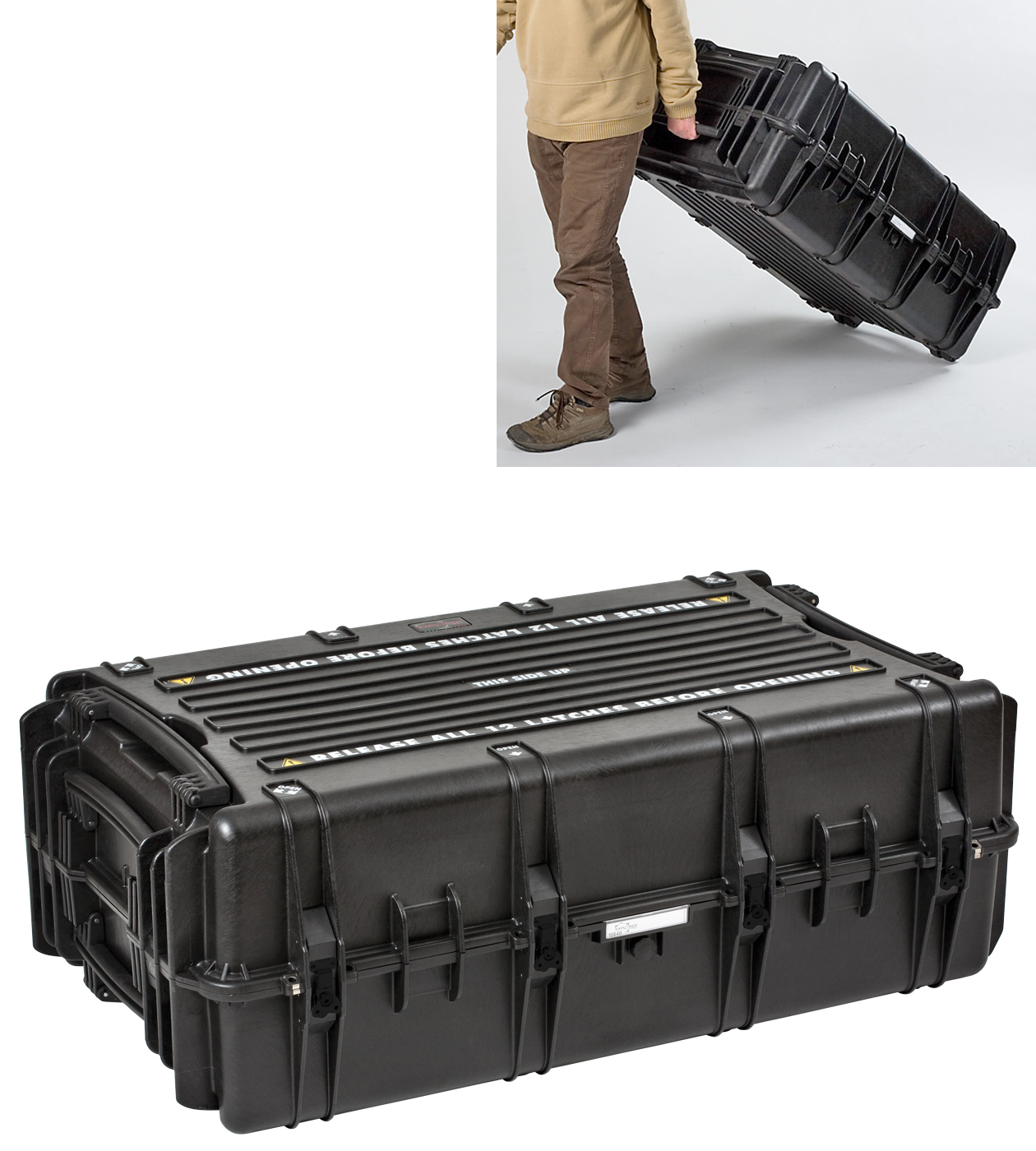

Mobile armoury case for rifles. Self-oiling free running wheels. Removable lid. 12 heavy duty metal latches.

Models

10840X.B

black organizers ready

10840.G E

mil. green empty

10840.G D2

mil. green w/weapons foam

10840.G D1

mil. green w/hum. ind. + weapons foam

10840.G

mil. green w/pre-cubed foam

10840.B E

black empty

10840.B D5

black w/weapons system

10840.B D2

black w/weapons foam

10840.B D1

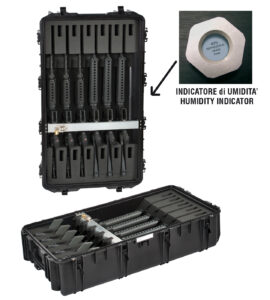

black w/hum. ind. + weapons foam

10840.B

black w/pre-cubed foam

Technical Specifications
Features
Accessories
Spare Parts

Internal dimensions

L Length 42 1/2 in

W Width 24 7/16 in

D Depth 15 3/4 in

Lid 7 7/8 in

Base 7 7/8 in

External dimensions

L Length 46 3/8 in

W Width 28 1/4 in

D Depth 16 13/16 in

Other data

Weight Empty 43.65 lbs

Weight With Foam 57.32 lbs

Weight With Custom Foam lbs

Volume 68.68 gal

Bouyancy lbs/max

Operating Temperature °F min -27.4 / max +194

Internal dimensions

L Length 1080 mm

W Width 620 mm

D Depth 400 mm

Lid 200 mm

Base 200 mm

External dimensions

L Length 1178 mm

W Width 718 mm

D Depth 427 mm

Other data

Weight Empty 19.80 Kg

Weight With Foam 26.30 Kg

Weight With Custom Foam Kg

Volume 260 lt

Bouyancy Kg/max

Operating Temperature °C min -33 / max +90

AUTOMATIC VALVE

AUTOMATIC VALVE

4 SELF-OILING FREE RUNNING WHEELS (model 10840)

4 SELF-OILING FREE RUNNING WHEELS (model 10840)

JAM FREE LATCHES WITH EASY-OPENING MECHANISM

JAM FREE LATCHES WITH EASY-OPENING MECHANISM

(from model 3818 on)

LOCKABLE METAL BAR TO SECURE THE WEAPONS

LOCKABLE METAL BAR TO SECURE THE WEAPONS

SEALING O-RING

(Art. NEOSEAL + nr. art.)

PVC WATERPROOF I. D. REMOVABLE LABEL

PVC WATERPROOF I. D. REMOVABLE LABEL

(Art. LABELCOVER + nr. art.)

TWO MAN LIFT SIDE HANDLES

TWO MAN LIFT SIDE HANDLES

STAINLESS STEEL REINFORCED PADLOCKABLE POINTS

STAINLESS STEEL REINFORCED PADLOCKABLE POINTS

4 stainless steel clip-covers on the two frontal outer padlock points, to grant a better resistance to abrasion.

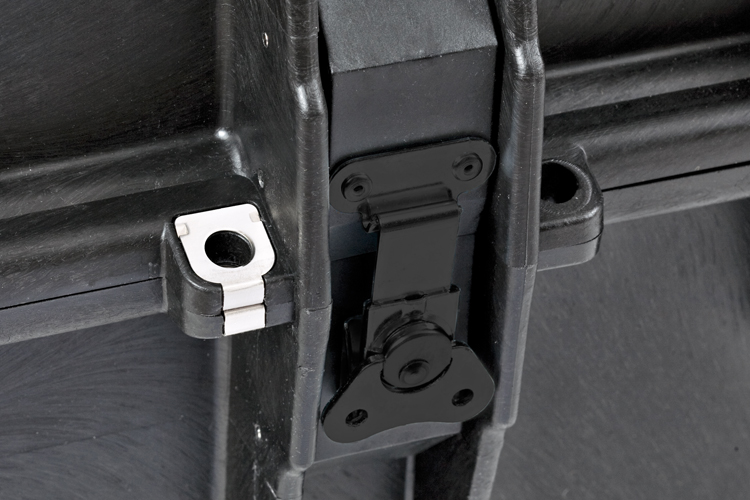

HEAVY DUTY METAL LATCHES

HEAVY DUTY METAL LATCHES

8 heavy duty metal latches, 4 on each longer side, grant a more reliable retaining during rough handling.

HEAVY DUTY METAL LATCHES

HEAVY DUTY METAL LATCHES

HEAVY DUTY METAL LATCHES

HEAVY DUTY METAL LATCHES

HEAVY DUTY METAL LATCHES

HEAVY DUTY METAL LATCHES

HEAVY DUTY METAL LATCHES

HEAVY DUTY METAL LATCHES

HEAVY DUTY METAL LATCHES

HEAVY DUTY METAL LATCHES

HEAVY DUTY METAL LATCHES

HEAVY DUTY METAL LATCHES

HEAVY DUTY METAL LATCHES

HEAVY DUTY METAL LATCHES

HEAVY DUTY METAL LATCHES

HEAVY DUTY METAL LATCHES

HEAVY DUTY METAL LATCHES

HEAVY DUTY METAL LATCHES

HEAVY DUTY METAL LATCHES

HEAVY DUTY METAL LATCHES

Mod. KIN.1031

Wheels for model 5140

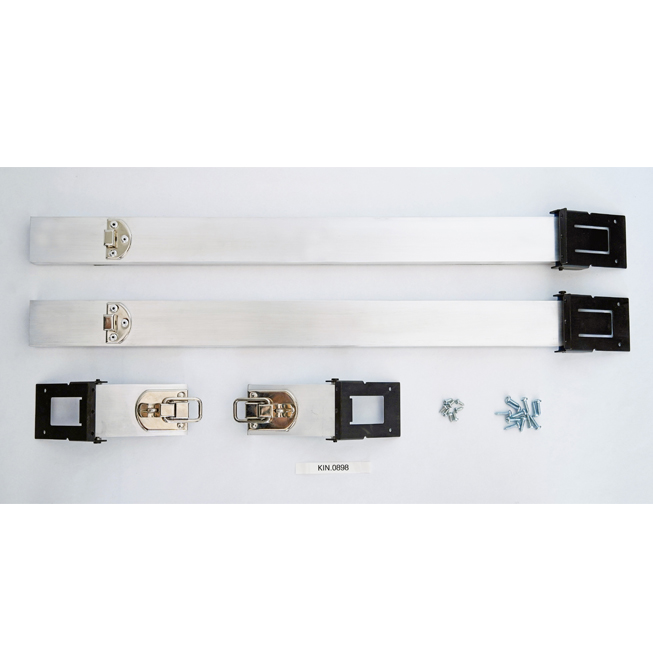

Mod. KIN.0898

Metal bars kit, 2 units – for mod. 10840

Mod. KIN.1214

Metal clips for mod. 3005-4209-16-4412-19-4820-5140-5218-21-5325-26-5822-23-33-7626-30-35-41-7726-45-7814-9413-33-10826-40-11413-13513-27-15416

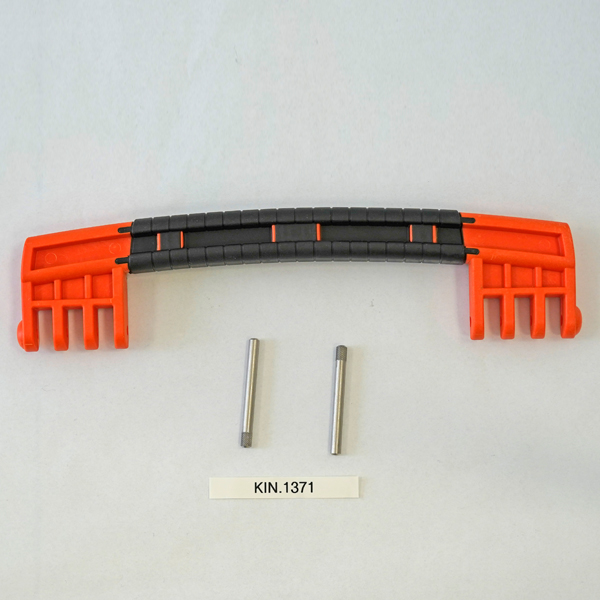

Mod. KIN.1371

Rubber coated handle for models 7626-7635-9433

Mod. KIN.1369

Rubber coated handle for models 7626-7635-9433

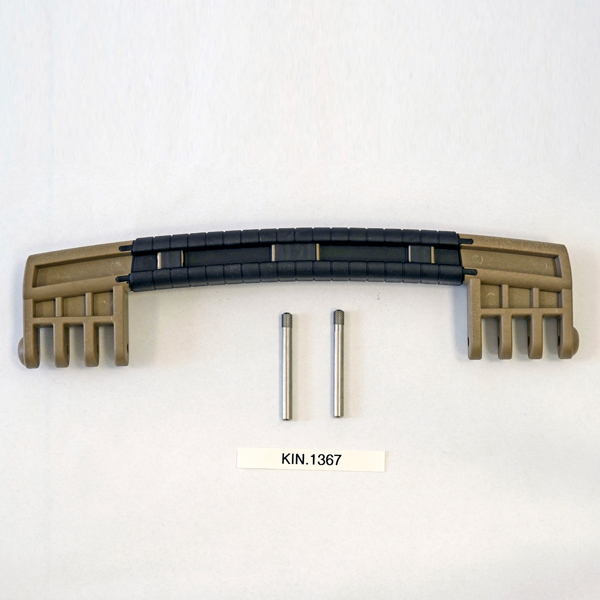

Mod. KIN.1367

Rubber coated handle for models 7626-7635-9433

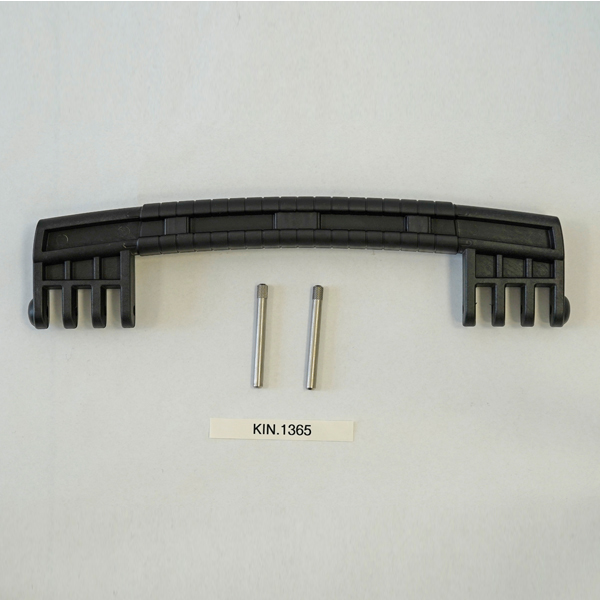

Mod. KIN.1365

Rubber coated handle for models 7626-7635-9433

Mod. KIN.0969

Transparent PC name tag for mod. 4209-4216-4412-4419-4820-5218-5221-5325-5326-5822-5823-5833-7626-7630-7635-7641-7726-7745-7814-9413-9433-10826-10840-11413-13513-13527-15416-MUB65

Mod. KIN.0416

Handle (mod. 9413 front handle – mod. 10826-10840 lateral short handle)

Mod. KIN.0425

Mod. KIN.0881

Mod. KIN.0432

Easy-opening side latch for models 7630, 7641 and 10840

Mod. KIN.0433

Easy-opening side latch for models 7630, 7641 and 10840

Mod. KIN.0446

Easy-opening latch for models from 3818 up

Mod. KIN.0435

Easy-opening latch for models from 3818 up

Mod. KIN.0417

Handle (mod. 9413 front handle – mod. 10826-10840 lateral short handle)

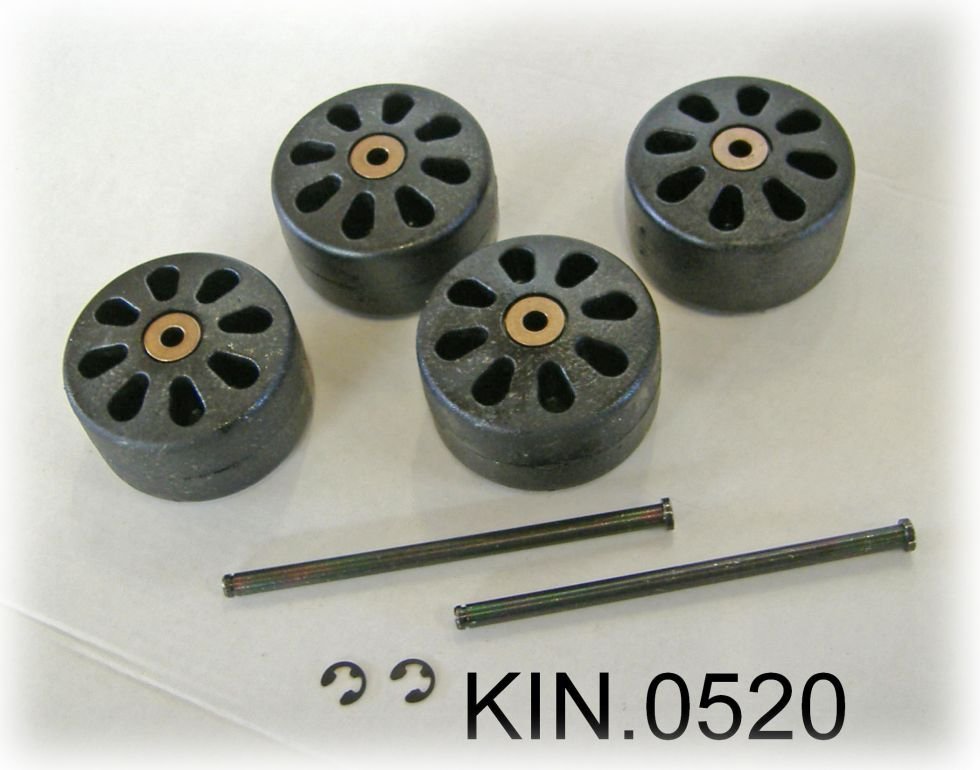

Mod. KIN.0520

Wheels for mod. 10826-10840

Mod. KIN.0424

Mod. KIN.0857

Mod. KIN.0947

Mod. KIN.0423
