Home / Products / Mod. 15416 / 15416.GFF

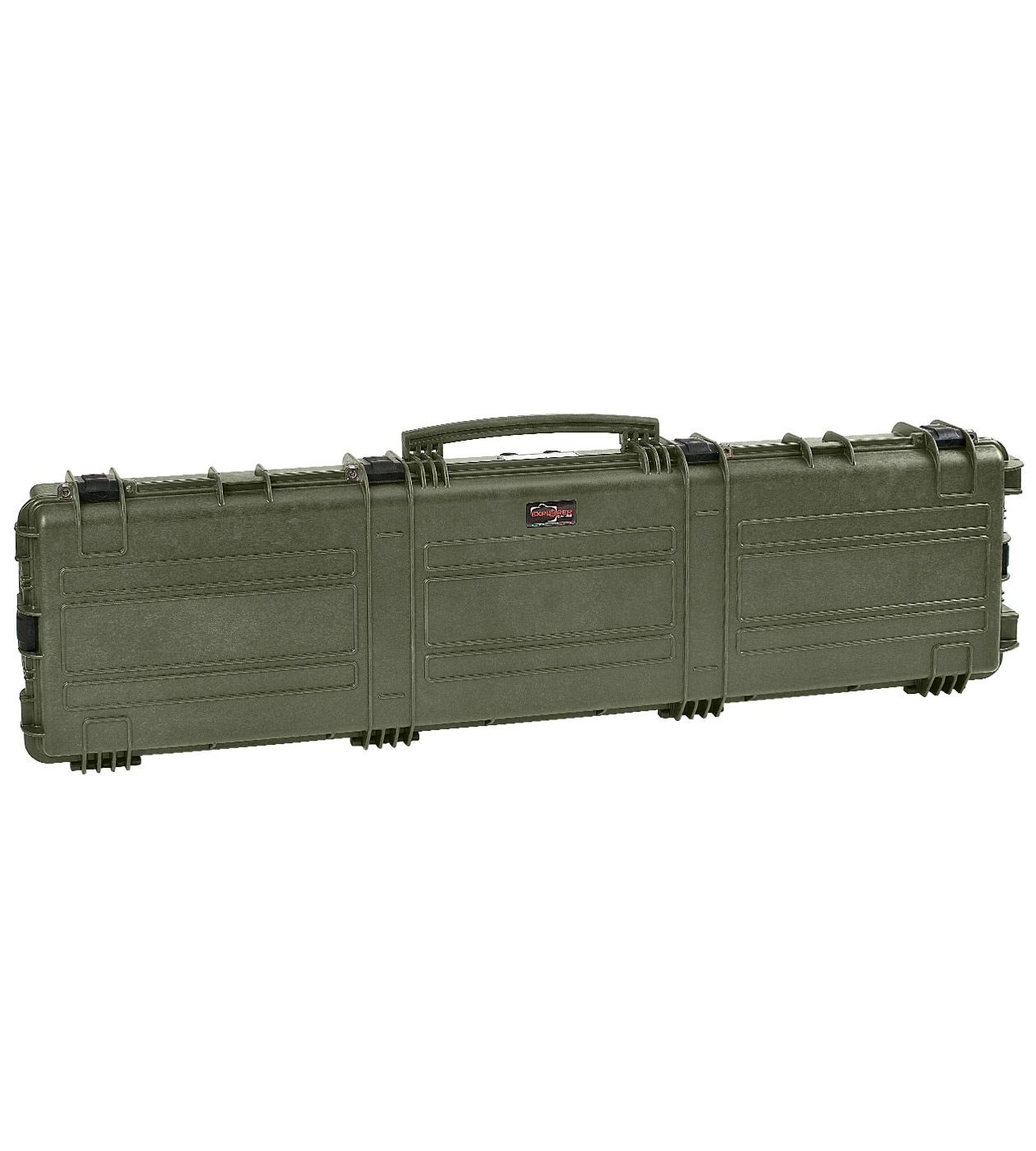

15416.GFF

EAN: 8024482184913

The longest rifle cases on the market. Suitable to accommodate the most used long range rifles and accessories. Wider latches with safe button. Double automatic purge valves. Self-oiling free running wheels.

Models

15416.GFF

mil. green w/high density full foam

15416.G E

mil. green empty

15416.G

mil. green w/pre-cubed foam

15416.DFF

des. sand w/high density full foam

15416.D E

des. sand empty

15416.D

des. sand w/pre-cubed foam

15416.BFF

black w/high density full foam

15416.B E

black empty

15416.B

black w/pre-cubed foam

Technical Specifications
Features
Accessories
Spare Parts

Internal dimensions

L Length 60 5/8 in

W Width 14 13/16 in

D Depth 6 5/16 in

Lid 1 5/8 in

Base 4 5/8 in

External dimensions

L Length 64 1/8 in

W Width 17 15/16 in

D Depth 7 3/16 in

Other data

Weight Empty 24.91 lbs

Weight With Foam 29.54 lbs

Weight With Custom Foam lbs

Volume 24.54 gal

Bouyancy lbs/max

Operating Temperature °F min -27.4 / max +194

Internal dimensions

L Length 1540 mm

W Width 377 mm

D Depth 160 mm

Lid 42 mm

Base 118 mm

External dimensions

L Length 1629 mm

W Width 456 mm

D Depth 183 mm

Other data

Weight Empty 11.30 Kg

Weight With Foam 13.40 Kg

Weight With Custom Foam Kg

Volume 93 lt

Bouyancy Kg/max

Operating Temperature °C min -33 / max +90

AUTOMATIC VALVE

AUTOMATIC VALVE

Automatic pressure release valve.

SELF OILING FREE RUNNING WHEELS

SELF OILING FREE RUNNING WHEELS

CORROSION PROOF METAL HINGES WITH LID STAY FEATURES

CORROSION PROOF METAL HINGES WITH LID STAY FEATURES

INTERNAL SLOTS

Internal slots for optional panel mounting brackets or panel mounting rings

LARGE FRONT HANDLE

LARGE FRONT HANDLE

JAM FREE LATCHES WITH EASY-OPENING MECHANISM

JAM FREE LATCHES WITH EASY-OPENING MECHANISM

(from model 3818 on)

(from model 3818 on)

(from model 3818 on)

(Art. NEOSEAL + nr. art.)

PVC WATERPROOF I. D. REMOVABLE LABEL

PVC WATERPROOF I. D. REMOVABLE LABEL

(Art. LABELCOVER + nr. art.)

TWO MAN LIFT SIDE HANDLES

TWO MAN LIFT SIDE HANDLES

Mod. GBAG 154

PADDED GUN BAG FOR CASE 15416

Mod. TOP ENVELOPE 15

Mod. TOP ENVELOPE 15

PROTECTIVE SLEEVE FOR PC 15"-15.6"

Mod. TOP ENVELOPE 13

Mod. TOP ENVELOPE 13

PROTECTIVE SLEEVE FOR PC 13"-13.3"

Mod. FOAM.15416

Mod. FOAM.15416

FOAM SET FOR CASE 15416

Mod. LIDFOAM.154

Mod. LIDFOAM.154

CONVOLUTED FOAM SET FOR CASE 15416

Mod. EXPL PADLOCK

Mod. EXPL PADLOCK

PATENTED HEAVY DUTY BRASS PADLOCK WITH KEYS

Mod. KIT.DL

DIGITAL LOCK FOR CASES 9413, 9433, 11413, 13513, 13527, 15416, 10826 AND 10840

Mod. EXPL COMBILOCK

Mod. EXPL COMBILOCK

PATENTED COMBINATION PADLOCK

Mod. KIT.EXPL.PLUGS

Mod. KIT.EXPL.PLUGS

BLIND INSERT

Mod. EXPL TSA.DIGILOCK

Mod. EXPL TSA.DIGILOCK

TSA APPROVED PADLOCK WITH COMBINATION

Mod. KIT SUPP.EXPL.

Mod. KIT SUPP.EXPL.

METAL BRACKET - KIT SUPP. EXPL

Mod. KIT SUPP.PLAST.

Mod. KIT SUPP.PLAST.

PLASTIC BRACKET

Mod. KIN.1214

Metal clips for mod. 3005-4209-16-4412-19-4820-5140-5218-21-5325-26-5822-23-33-7626-30-35-41-7726-45-7814-9413-33-10826-40-11413-13513-27-15416

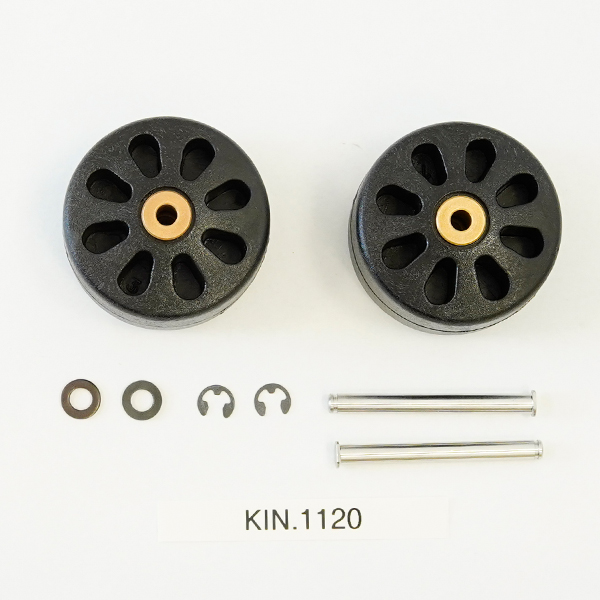

Mod. KIN.1120

Wheels for model 15416

Mod. KIN.1119

Polyurethane o-ring seal for model 15416

Mod. KIN.1284

Grey trigger pull release latch for model 15416

Mod. KIN.0969

Transparent PC name tag for mod. 4209-4216-4412-4419-4820-5218-5221-5325-5326-5822-5823-5833-7626-7630-7635-7641-7726-7745-7814-9413-9433-10826-10840-11413-13513-13527-15416-MUB65

Mod. KIN.0426

Side handle for models 5325-5326-5822-5823-5833-7630-7814-13513-13527-15416

Mod. KIN.0880

Side handle for models 5325-5326-5822-5823-5833-7630-7814-13513-13527-15416

Mod. KIN.0412

Side handle for models 5325-5326-5822-5823-5833-7630-7814-13513-13527-15416

Mod. KIN.0425

Mod. KIN.0881

Mod. KIN.0448

Side handle for models 5325-5326-5822-5823-5833-7630-7814-13513-13527-15416

Mod. KIN.0424

Mod. KIN.0423

Download

Product data sheet condensed

Product data sheet complete

High res. picture: case open

High res. picture: case closed

Technical Drawings

Certifications

Certificate 15416 - IP67-DS-ST ITA PU
