2214.O

EAN: 8024482015262

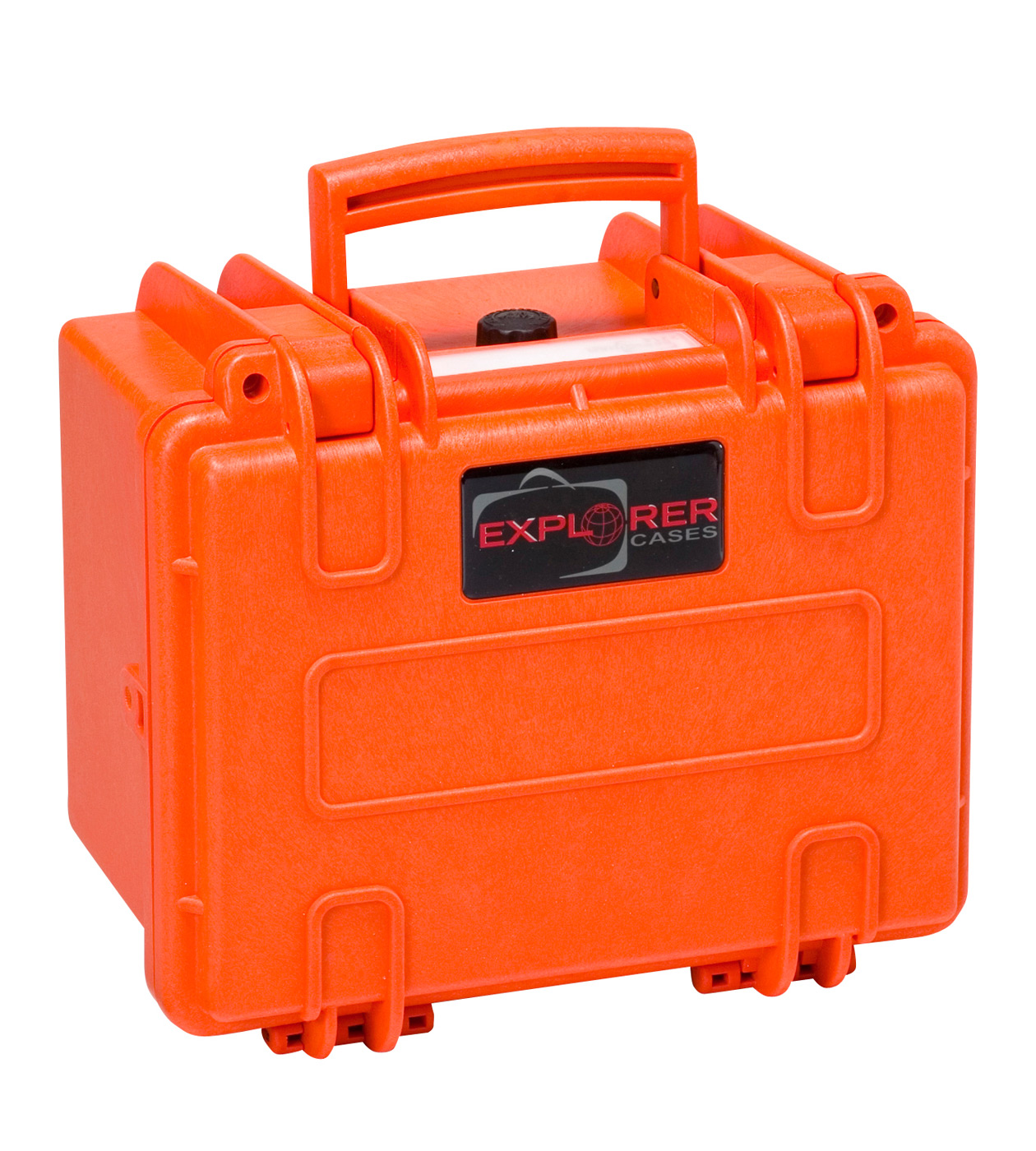

Impact resistant cases ideal for transporting and storing all kinds of small instrumentation. Available in three colors and two internal configurations.

Models

2214.O E

orange empty

2214.O

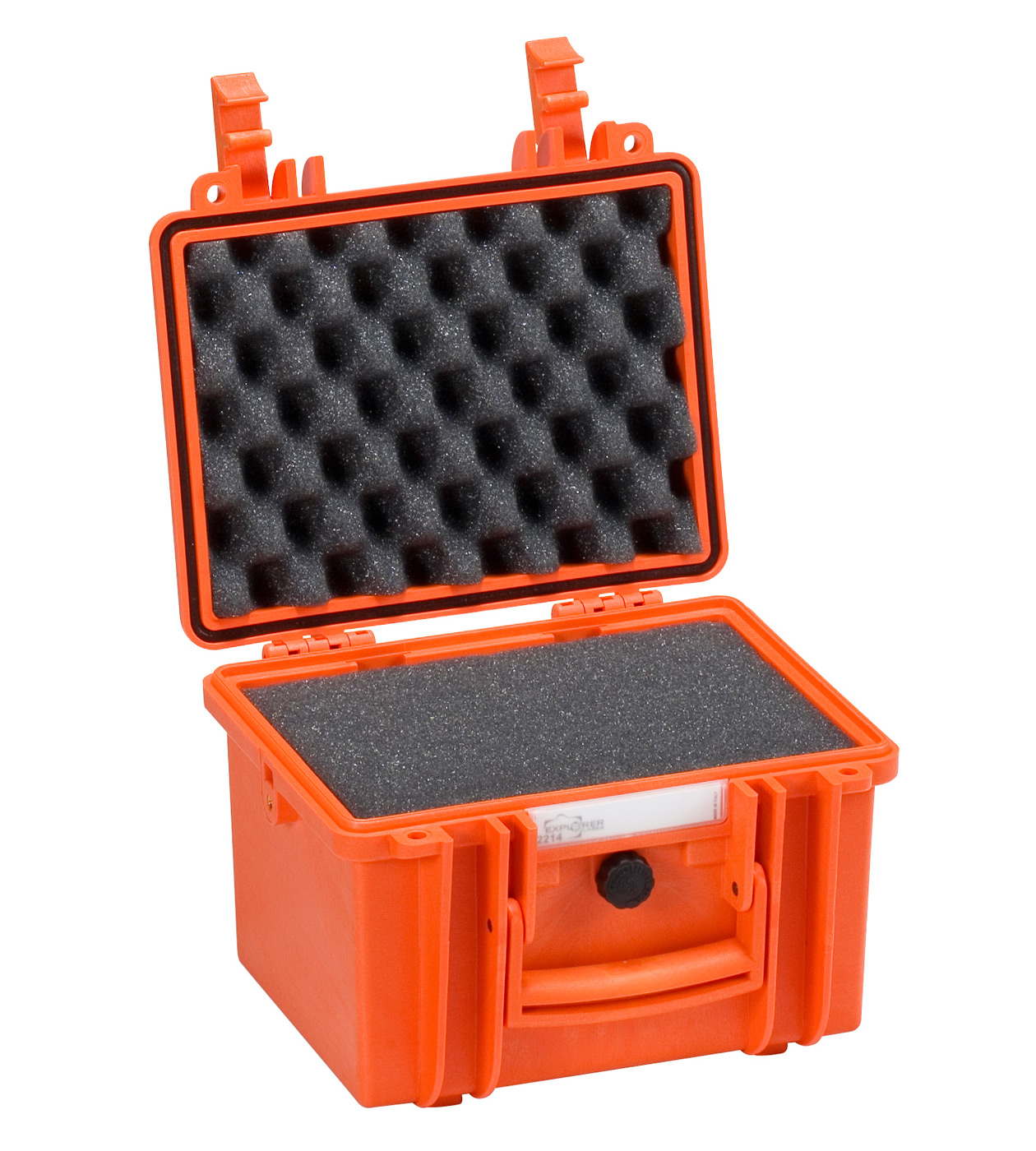

orange w/pre-cubed foam

2214.G E

mil. green empty

2214.G

mil. green w/pre-cubed foam

2214.B E

black empty

2214.B

black w/pre-cubed foam

Technical Specifications
Features
Accessories
Spare Parts

Internal dimensions

L Length 8 11/16 in

W Width 6 5/16 in

D Depth 5 11/16 in

Lid 13/16 in

Base 4 15/16 in

External dimensions

L Length 9 11/16 in

W Width 8 7/16 in

D Depth 6 3/8 in

Other data

Weight Empty 2.56 lbs

Weight With Foam 2.84 lbs

Weight With Custom Foam lbs

Volume 1.32 gal

Bouyancy lbs/max

Operating Temperature °F min -27.4 / max +194

Internal dimensions

L Length 220 mm

W Width 160 mm

D Depth 145 mm

Lid 20 mm

Base 125 mm

External dimensions

L Length 246 mm

W Width 215 mm

D Depth 162 mm

Other data

Weight Empty 1.16 Kg

Weight With Foam 1.29 Kg

Weight With Custom Foam Kg

Volume 5.10 lt

Bouyancy Kg/max

Operating Temperature °C min -33 / max +90

CORROSION PROOF METAL HINGES WITH LID STAY FEATURES

INTERNAL SLOTS

Internal slots for optional panel mounting brackets or panel mounting rings

LATCH

SEALING O-RING

(Art. NEOSEAL + nr. art.)

MANUAL PRESSURE RELEASE VALVE

The internal stop ring prevents valve from being completely

PVC WATERPROOF I. D. REMOVABLE LABEL

(Art. LABELCOVER + nr. art.)

OPTIONAL SHOULDER STRAP (universal)

(art. SHOULDERKIT.U)

Mod. DIV2214

PADDED DIVIDER FOR 2214

Mod. LIDFOAM.22

CONVOLUTED FOAM SET FOR CASE 2209 AND 2214

Mod. SHOULDERKIT.U

ADJUSTABLE SHOULDER KIT

Mod. EXPL PADLOCK

PATENTED HEAVY DUTY BRASS PADLOCK WITH KEYS

Mod. EXPL COMBILOCK

PATENTED COMBINATION PADLOCK

Mod. KIT.EXPL.PLUGS

BLIND INSERT

Mod. EXPL TSA.DIGILOCK

TSA APPROVED PADLOCK WITH COMBINATION

Mod. KIT SUPP.EXPL.

METAL BRACKET - KIT SUPP. EXPL

Mod. KIT SUPP.PLAST.

PLASTIC BRACKET

Mod. FOAM.2214

FOAM SET FOR CASE 2214

Mod. KIN.0846

Mod. KIN.0525

Manual pressure release valve for models 1908-1913-2209-2214-3005
