Home / Products / Mod. 2712 / 2712.BCV

2712.BCV

EAN: 8024482184395

Shockproof cases realized in copolymer polypropylene material. Removable lid and counterbalance supports. Temperature rating from -33 °C to +90 °C.

Models

2712.O E

orange empty

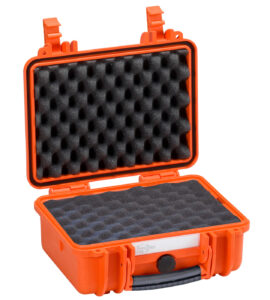

2712.OCV

orange w/convoluted foam

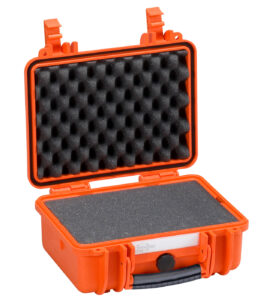

2712.O

orange w/pre-cubed foam

2712.G E

mil. green empty

2712.GCV

mil. green w/convoluted foam

2712.G

mil. green w/pre-cubed foam

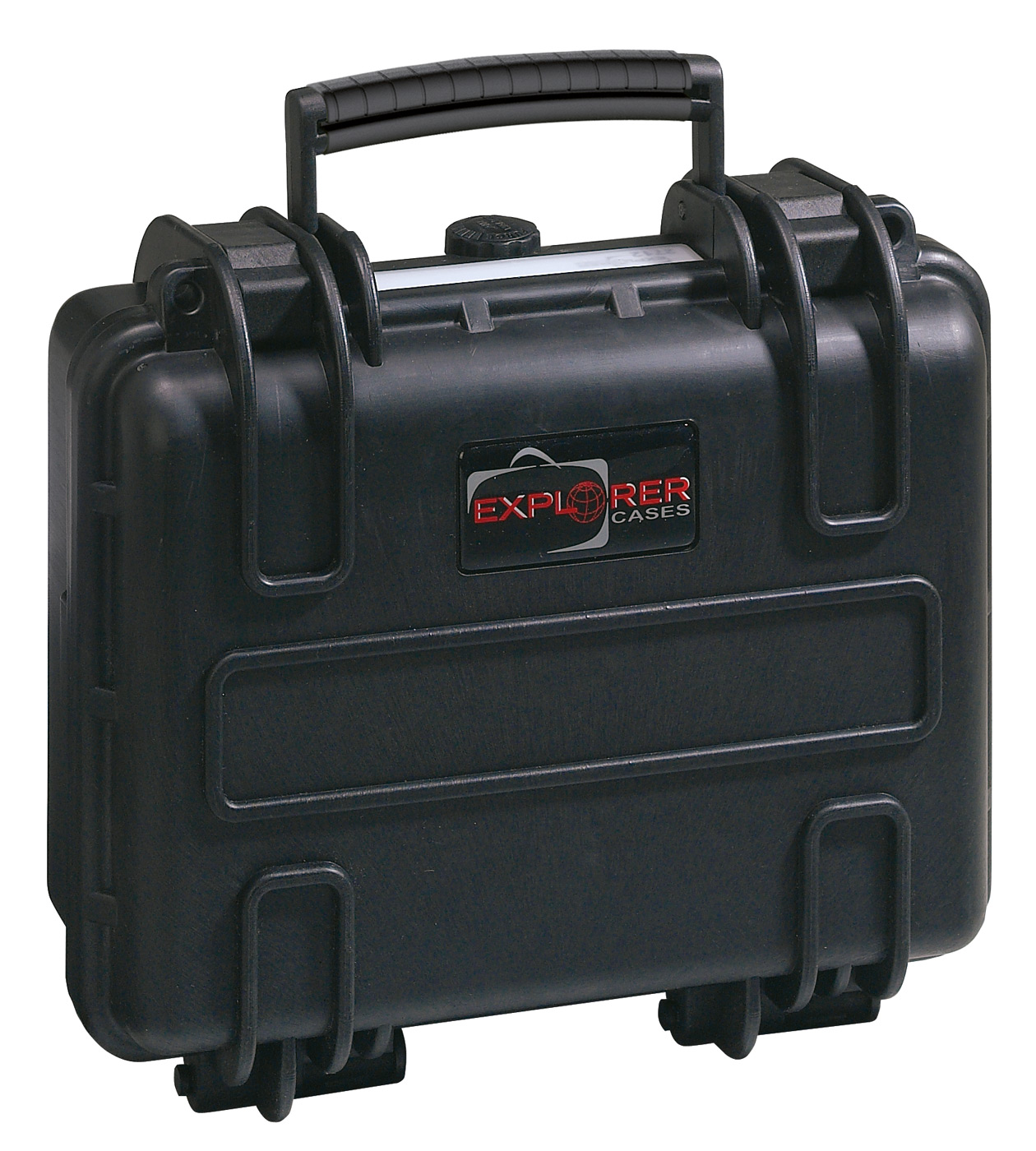

2712.B E

black empty

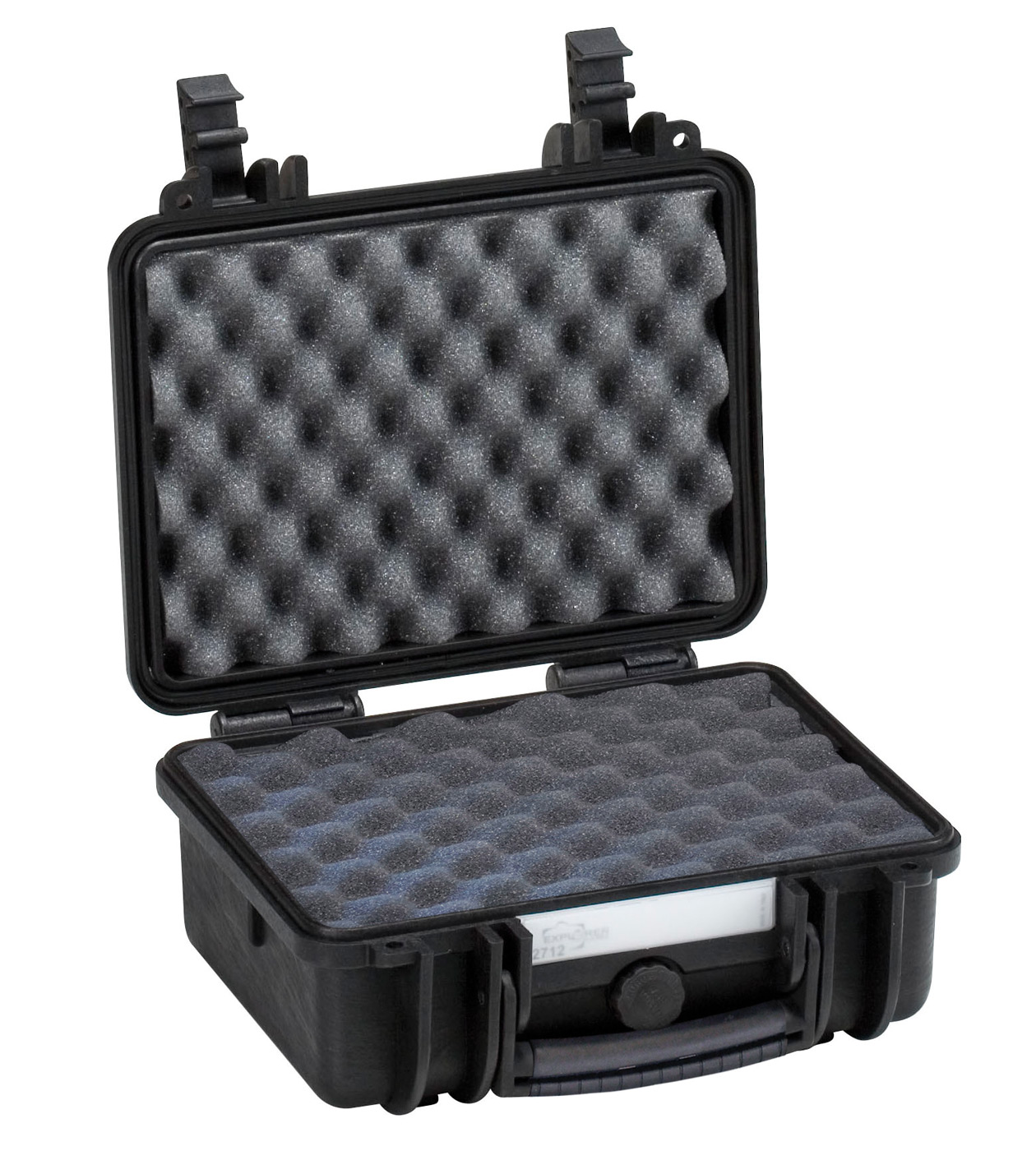

2712.BCV

black w/convoluted foam

2712.B

black w/pre-cubed foam

Technical Specifications
Features
Accessories
Spare Parts

Internal dimensions

L Length 10 7/8 in

W Width 7 7/8 in

D Depth 4 3/4 in

Lid 1 3/8 in

Base 3 3/8 in

External dimensions

L Length 12 in

W Width 10 5/8 in

D Depth 5 11/16 in

Other data

Weight Empty 3.57 lbs

Weight With Foam 4.03 lbs

Weight With Custom Foam lbs

Volume 1.58 gal

Bouyancy lbs/max

Operating Temperature °F min -27.4 / max +194

Internal dimensions

L Length 276 mm

W Width 200 mm

D Depth 120 mm

Lid 35 mm

Base 85 mm

External dimensions

L Length 305 mm

W Width 270 mm

D Depth 144 mm

Other data

Weight Empty 1.62 Kg

Weight With Foam 1.83 Kg

Weight With Custom Foam Kg

Volume 6.60 lt

Bouyancy Kg/max

Operating Temperature °C min -33 / max +90

CORROSION PROOF METAL HINGES WITH LID STAY FEATURES

CORROSION PROOF METAL HINGES WITH LID STAY FEATURES

INTERNAL SLOTS

Internal slots for optional panel mounting brackets or panel mounting rings

LATCH

SEALING O-RING

(Art. NEOSEAL + nr. art.)

MANUAL PRESSURE RELEASE VALVE

MANUAL PRESSURE RELEASE VALVE

The internal stop ring prevents valve from being completely extracted (Art. PURGEVALVE.B)

PVC WATERPROOF I. D. REMOVABLE LABEL

PVC WATERPROOF I. D. REMOVABLE LABEL

(Art. LABELCOVER + nr. art.)

LID CAN BE SET TO SLIDE-OFF

LID CAN BE SET TO SLIDE-OFF

By releasing the back screw, lid becomes set to slide-off when opened at 70°

COUNTERBALANCE SUPPORTS

COUNTERBALANCE SUPPORTS

(in certain models)

Mod. DIV2712

PADDED DIVIDER FOR 2712

Mod. BAG-R

PADDED BAG WITH ADJUSTABLE DIVIDERS

Mod. PANEXPL27

LID PANEL WITH ORGANIZED POUCHES

Mod. FOAM.2712

FOAM SET FOR CASE 2712

Mod. PANRING27

PANEL RING FOR CASE 2712 AND 2717

Mod. EXPL PADLOCK

Mod. EXPL PADLOCK

PATENTED HEAVY DUTY BRASS PADLOCK WITH KEYS

Mod. EXPL COMBILOCK

Mod. EXPL COMBILOCK

PATENTED COMBINATION PADLOCK

Mod. KIT.EXPL.PLUGS

Mod. KIT.EXPL.PLUGS

BLIND INSERT

Mod. EXPL TSA.DIGILOCK

Mod. EXPL TSA.DIGILOCK

TSA APPROVED PADLOCK WITH COMBINATION

Mod. KIT SUPP.EXPL.

Mod. KIT SUPP.EXPL.

METAL BRACKET - KIT SUPP. EXPL

Mod. KIT SUPP.PLAST.

Mod. KIT SUPP.PLAST.

PLASTIC BRACKET

Mod. LIDFOAM.27

Mod. LIDFOAM.27

CONVOLUTED FOAM SET FOR CASE 2712 AND 2717

Mod. PANRING27

PANEL RING FOR CASE 2712 AND 2717

Mod. KIN.0847

Polyurethane o-ring seal for models 2712 and 2717

Mod. KIN.0496

Name tag holder for mod. 2712-2717-3317-3317W-3818-5117-5122-MUB78

Mod. KIN.0429

Handle for model from 2712 to 3317W

Mod. KIN.0439

Handle for model from 2712 to 3317W

Mod. KIN.0495

Manual pressure release valve for models from 2712 up (except mod. 3005)

Mod. KIN.0437

Handle for model from 2712 to 3317W

Mod. KIN.0465

Handle for model from 2712 to 3317W

Mod. KIN.0475

Handle for model from 2712 to 3317W

Mod. KIN.0473

Handle for model from 2712 to 3317W
