3317.O E

EAN: 8024482010977

Indestructible cases recommended for professional applications. Various colors and configurations available. Lid can be set to slide-off. Internal fixing points for devices.

Models

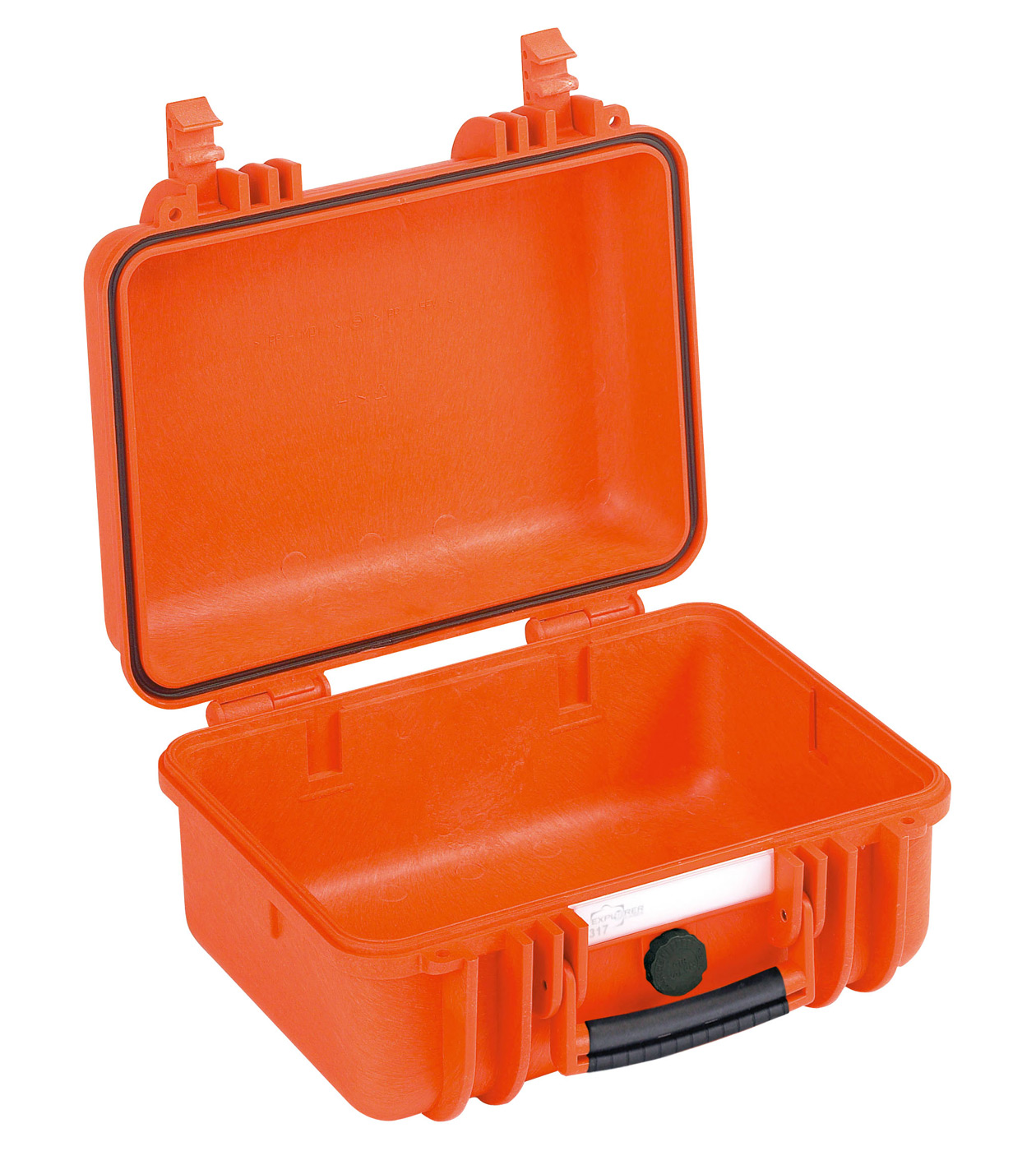

3317.O E

orange empty

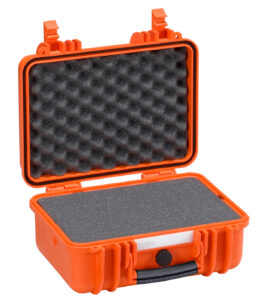

3317.O

orange w/pre-cubed foam

3317.G E

mil. green empty

3317.G

mil. green w/pre-cubed foam

3317.B E

black empty

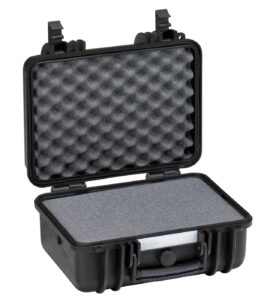

3317.B

black w/pre-cubed foam

Technical Specifications
Features
Accessories
Spare Parts

Internal dimensions

L Length 13 in

W Width 9 3/16 in

D Depth 6 11/16 in

Lid 2 11/16 in

Base 4 in

External dimensions

L Length 14 3/16 in

W Width 11 15/16 in

D Depth 7 5/8 in

Other data

Weight Empty 5.04 lbs

Weight With Foam 5.53 lbs

Weight With Custom Foam lbs

Volume 3.43 gal

Bouyancy lbs/max

Operating Temperature °F min -27.4 / max 194

Internal dimensions

L Length 330 mm

W Width 234 mm

D Depth 170 mm

Lid 68 mm

Base 102 mm

External dimensions

L Length 360 mm

W Width 304 mm

D Depth 194 mm

Other data

Weight Empty 2.29 Kg

Weight With Foam 2.51 Kg

Weight With Custom Foam Kg

Volume 13.10 lt

Bouyancy Kg/max

Operating Temperature °C min -33 / max 90

CORROSION PROOF METAL HINGES WITH LID STAY FEATURES

CORROSION PROOF METAL HINGES WITH LID STAY FEATURES

INTERNAL SLOTS

Internal slots for optional panel mounting brackets or panel mounting rings

LATCH

SEALING O-RING

(Art. NEOSEAL + nr. art.)

MANUAL PRESSURE RELEASE VALVE

MANUAL PRESSURE RELEASE VALVE

The internal stop ring prevents valve from being completely extracted (Art. PURGEVALVE.B)

PVC WATERPROOF I. D. REMOVABLE LABEL

PVC WATERPROOF I. D. REMOVABLE LABEL

(Art. LABELCOVER + nr. art.)

LID CAN BE SET TO SLIDE-OFF

LID CAN BE SET TO SLIDE-OFF

By releasing the back screw, lid becomes set to slide-off when opened at 70°

COUNTERBALANCE SUPPORTS

COUNTERBALANCE SUPPORTS

(in certain models)

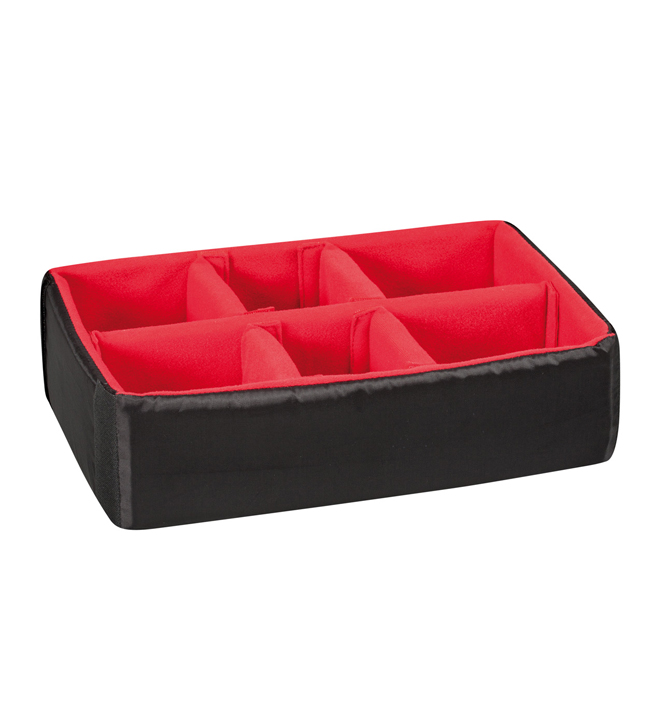

Mod. DIV3317

PADDED DIVIDER FOR 3317

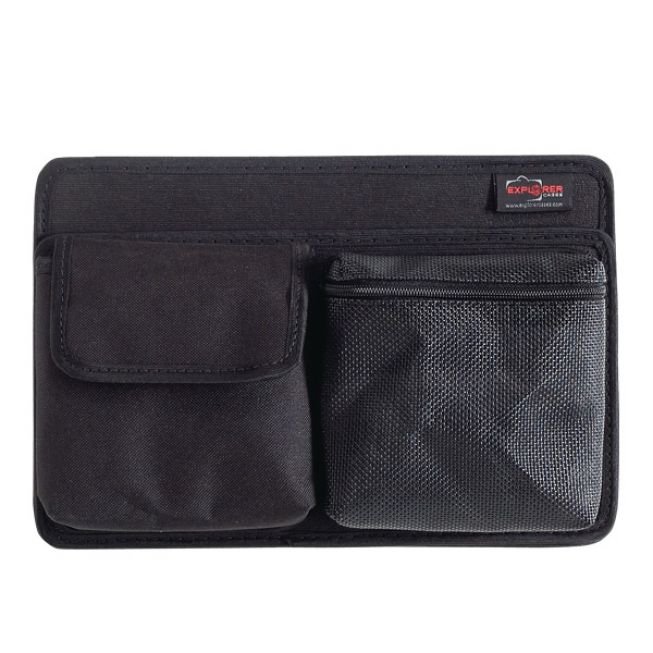

Mod. PANEXPL33

LID PANEL WITH ORGANIZED POUCHES

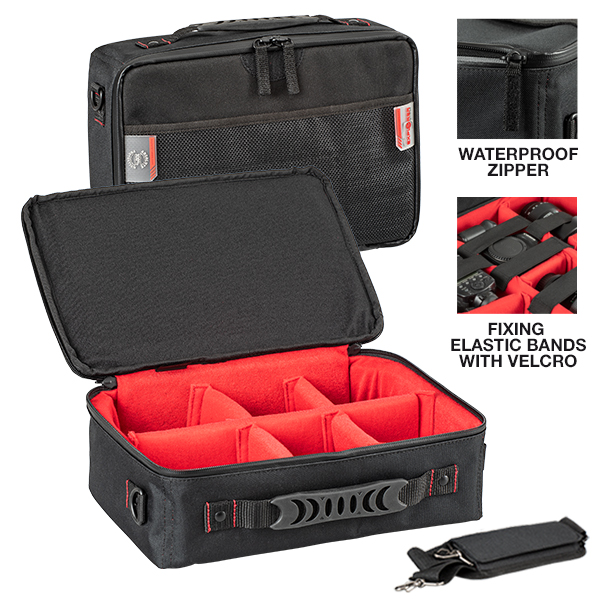

Mod. BAG-T

PADDED BAG WITH ADJUSTABLE DIVIDERS

Mod. EXPL PADLOCK

Mod. EXPL PADLOCK

PATENTED HEAVY DUTY BRASS PADLOCK WITH KEYS

Mod. LIDFOAM.33

Mod. LIDFOAM.33

CONVOLUTED FOAM SET FOR CASE 3317

Mod. EXPL COMBILOCK

Mod. EXPL COMBILOCK

PATENTED COMBINATION PADLOCK

Mod. KIT.EXPL.PLUGS

Mod. KIT.EXPL.PLUGS

BLIND INSERT

Mod. EXPL TSA.DIGILOCK

Mod. EXPL TSA.DIGILOCK

TSA APPROVED PADLOCK WITH COMBINATION

Mod. KIT SUPP.EXPL.

Mod. KIT SUPP.EXPL.

METAL BRACKET - KIT SUPP. EXPL

Mod. PANRING33

PANEL RING FOR CASE 3317

Mod. KIT SUPP.PLAST.

Mod. KIT SUPP.PLAST.

PLASTIC BRACKET

Mod. FOAM.3317

FOAM SET FOR CASE 3317

Mod. PANRING33.USA

Mod. PANRING33.USA

PANEL RING FOR CASE 3317

Mod. BACKPACK M

Mod. BACKPACK M

HANDY BACKPACK CARRYING SYSTEM FOR CASES

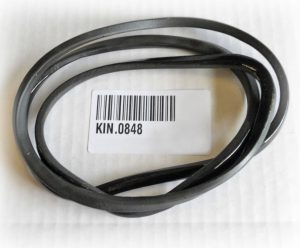

Mod. KIN.0848

Mod. KIN.0496

Name tag holder for mod. 2712-2717-3317-3317W-3818-5117-5122-MUB78

Mod. KIN.0429

Handle for model from 2712 to 3317W

Mod. KIN.0439

Handle for model from 2712 to 3317W

Mod. KIN.0495

Manual pressure release valve for models from 2712 up (except mod. 3005)

Mod. KIN.0437

Handle for model from 2712 to 3317W

Mod. KIN.0465

Handle for model from 2712 to 3317W

Mod. KIN.0475

Handle for model from 2712 to 3317W

Mod. KIN.0473

Handle for model from 2712 to 3317W

Download

Product data sheet condensed

Product data sheet complete

High res. picture: case open

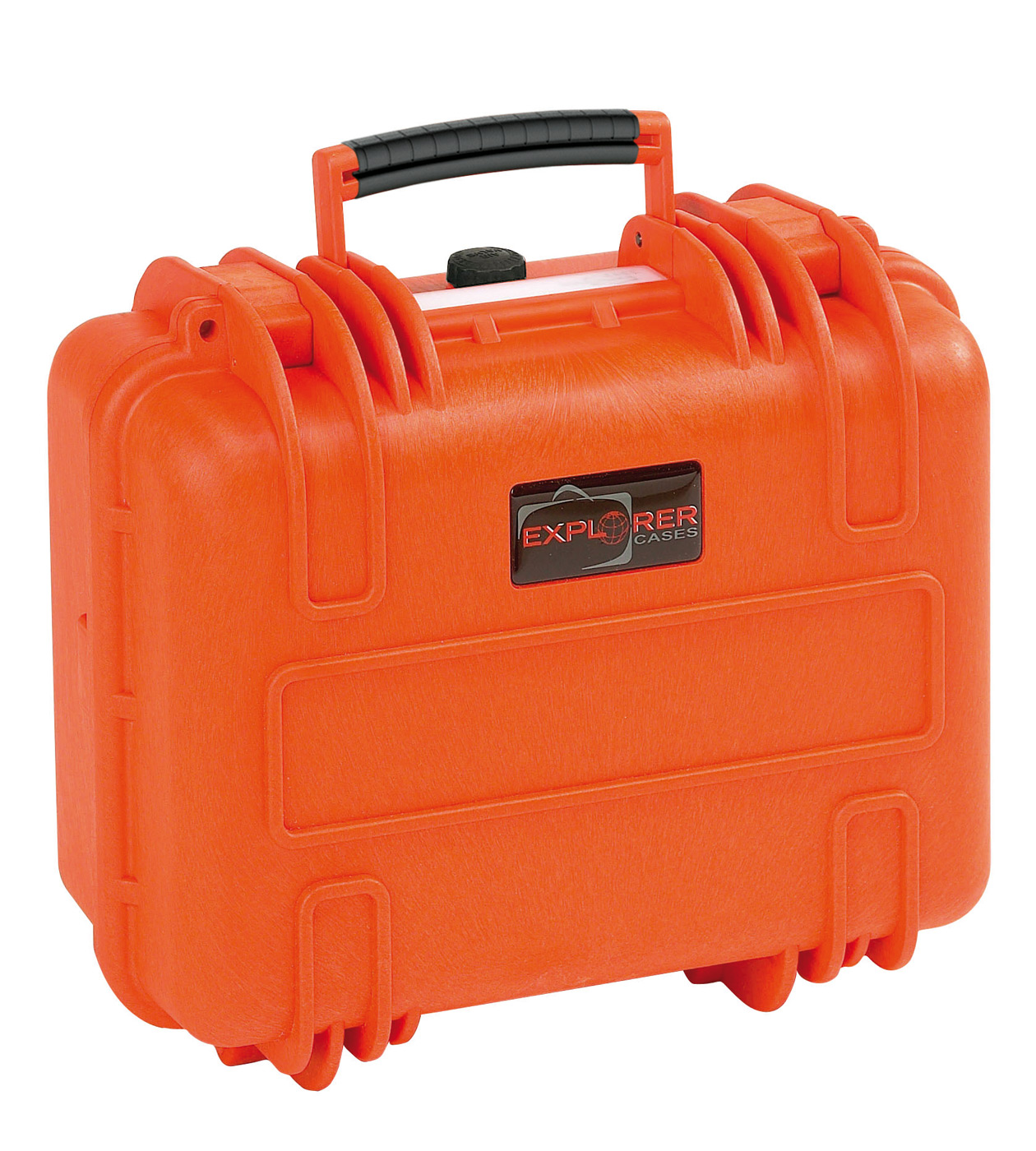

High res. picture: case closed
