3317W.B

EAN: 8024482176239

Resistant waterproof cases, made of a special plastic resin compound. Internal configurations with pre-cubed foam layers and convoluted foams, or completely empty.

Models

3317W.B E

black empty

3317W.B

black w/pre-cubed foam

Technical Specifications
Features
Accessories
Spare Parts

Internal dimensions

L Length 13 in

W Width 13 3/4 in

D Depth 6 11/16 in

Lid 2 11/16 in

Base 4 in

External dimensions

L Length 14 3/16 in

W Width 16 9/6 in

D Depth 7 5/8 in

Other data

Weight Empty 6.43 lbs

Weight With Foam 7.27 lbs

Weight With Custom Foam lbs

Volume 5.17 gal

Bouyancy lbs/max

Operating Temperature °F min -27.4 / max 194

Internal dimensions

L Length 330 mm

W Width 350 mm

D Depth 170 mm

Lid 68 mm

Base 102 mm

External dimensions

L Length 360 mm

W Width 420 mm

D Depth 194 mm

Other data

Weight Empty 2.92 Kg

Weight With Foam 3.30 Kg

Weight With Custom Foam Kg

Volume 19.60 lt

Bouyancy Kg/max

Operating Temperature °C min -33 / max 90

CORROSION PROOF METAL HINGES WITH LID STAY FEATURES

CORROSION PROOF METAL HINGES WITH LID STAY FEATURES

INTERNAL SLOTS

Internal slots for optional panel mounting brackets or panel mounting rings

LATCH

SEALING O-RING

(Art. NEOSEAL + nr. art.)

MANUAL PRESSURE RELEASE VALVE

MANUAL PRESSURE RELEASE VALVE

The internal stop ring prevents valve from being completely extracted (Art. PURGEVALVE.B)

PVC WATERPROOF I. D. REMOVABLE LABEL

PVC WATERPROOF I. D. REMOVABLE LABEL

(Art. LABELCOVER + nr. art.)

LID CAN BE SET TO SLIDE-OFF

LID CAN BE SET TO SLIDE-OFF

By releasing the back screw, lid becomes set to slide-off when opened at 70°

COUNTERBALANCE SUPPORTS

COUNTERBALANCE SUPPORTS

(in certain models)

Mod. DIV3317W

PADDED DIVIDER FOR 3317W

Mod. BAG-U

PADDED BAG WITH ADJUSTABLE DIVIDERS

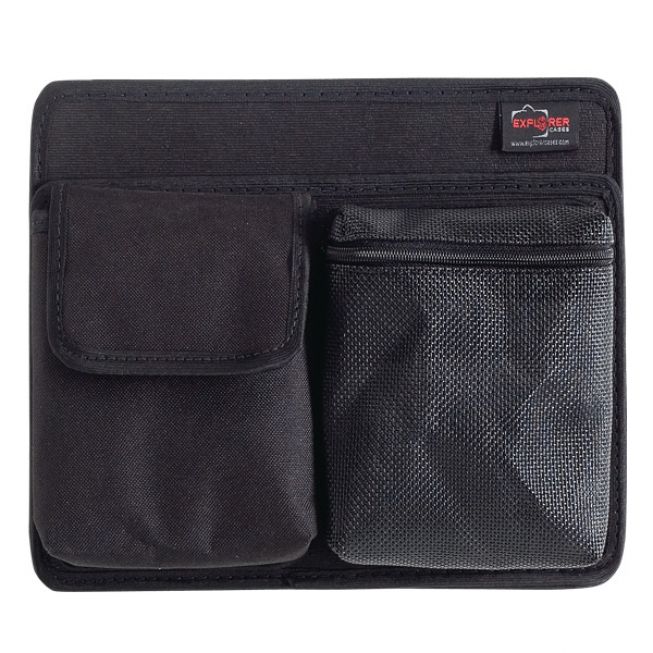

Mod. PANEXPL33W

Mod. PANEXPL33W

LID PANEL WITH ORGANIZED POUCHES

Mod. LIDFOAM.33W

Mod. LIDFOAM.33W

CONVOLUTED FOAM SET FOR CASE 3317W

Mod. EXPL PADLOCK

Mod. EXPL PADLOCK

PATENTED HEAVY DUTY BRASS PADLOCK WITH KEYS

Mod. EXPL COMBILOCK

Mod. EXPL COMBILOCK

PATENTED COMBINATION PADLOCK

Mod. BACKPACK L

Mod. BACKPACK L

HANDY BACKPACK CARRYING SYSTEM FOR CASES

Mod. KIT.EXPL.PLUGS

Mod. KIT.EXPL.PLUGS

BLIND INSERT

Mod. EXPL TSA.DIGILOCK

Mod. EXPL TSA.DIGILOCK

TSA APPROVED PADLOCK WITH COMBINATION

Mod. KIT SUPP.EXPL.

Mod. KIT SUPP.EXPL.

METAL BRACKET - KIT SUPP. EXPL

Mod. KIT SUPP.PLAST.

Mod. KIT SUPP.PLAST.

PLASTIC BRACKET

Mod. FOAM.3317W

Mod. FOAM.3317W

FOAM SET FOR CASE 3317W

Mod. KIN.0496

Name tag holder for mod. 2712-2717-3317-3317W-3818-5117-5122-MUB78

Mod. KIN.0429

Handle for model from 2712 to 3317W

Mod. KIN.0439

Handle for model from 2712 to 3317W

Mod. KIN.0904

Mod. KIN.0495

Manual pressure release valve for models from 2712 up (except mod. 3005)

Mod. KIN.0437

Handle for model from 2712 to 3317W

Mod. KIN.0465

Handle for model from 2712 to 3317W

Mod. KIN.0475

Handle for model from 2712 to 3317W

Mod. KIN.0473

Handle for model from 2712 to 3317W

Download

Product data sheet condensed

Product data sheet complete

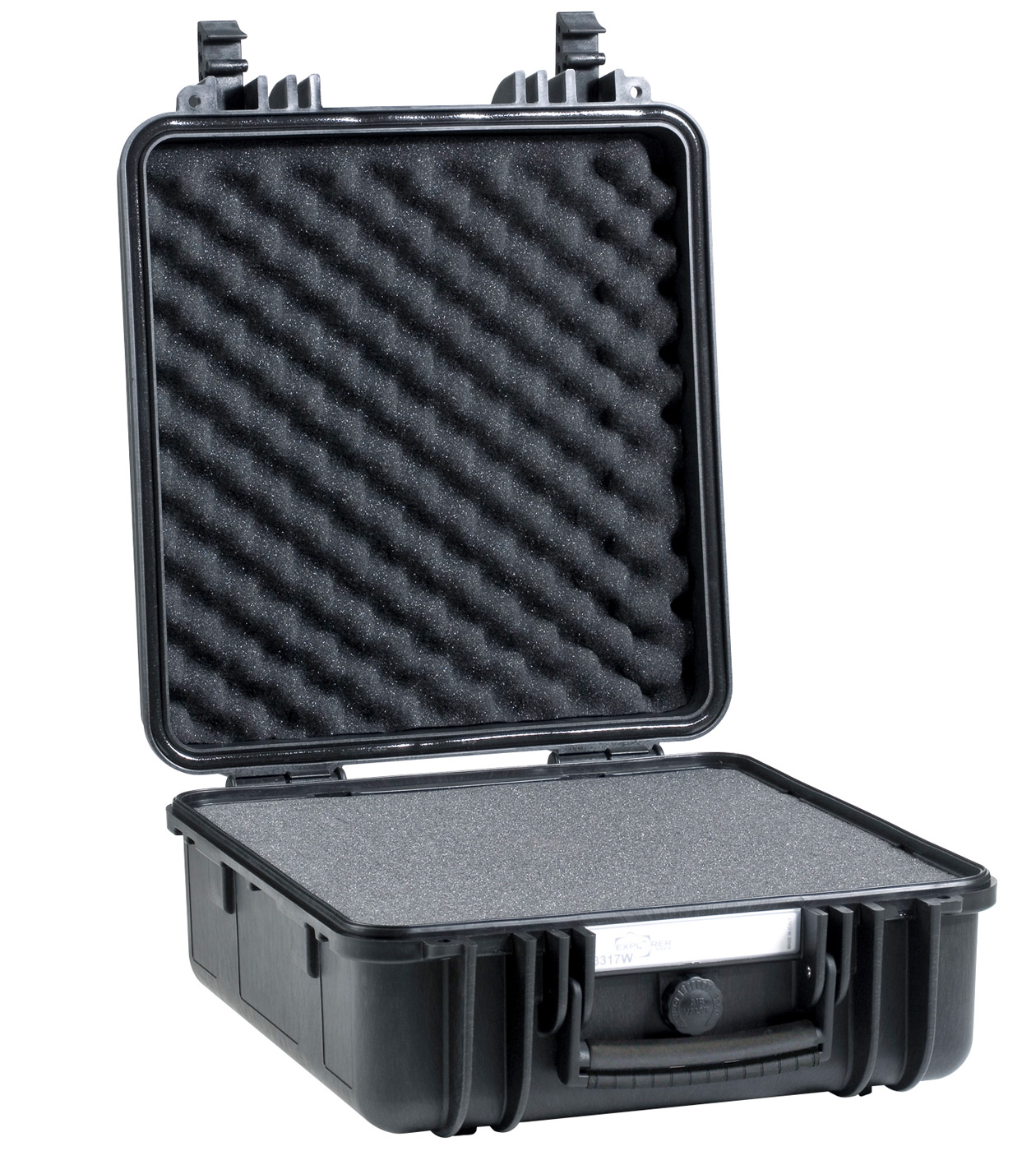

High res. picture: case open

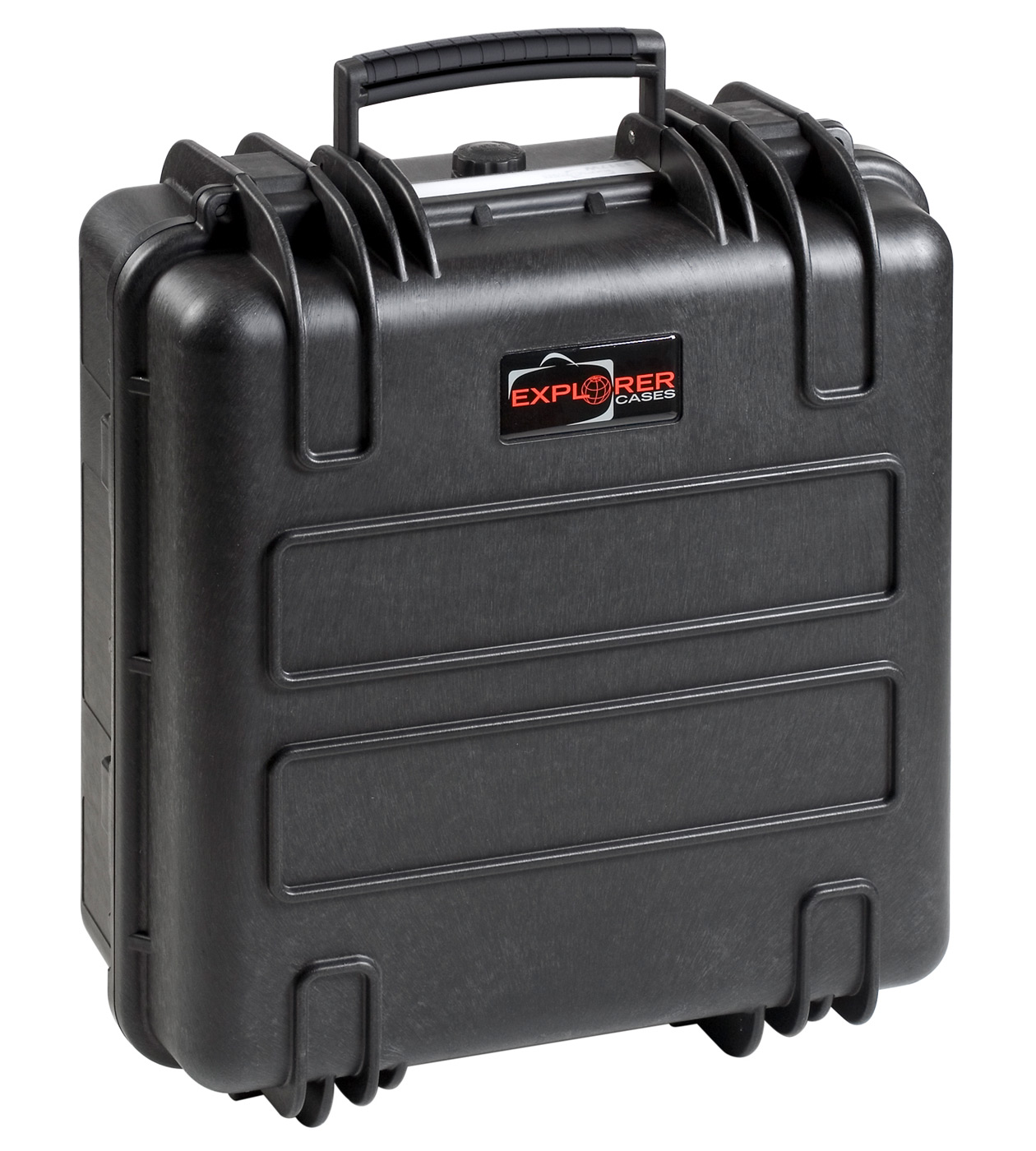

High res. picture: case closed

Technical Drawings

Certifications

Certificate 3317W - IP67-DS-ST ITA-ING PU
