4209HL.GCV

EAN: 8024482185354

Industrial waterproof case

Models

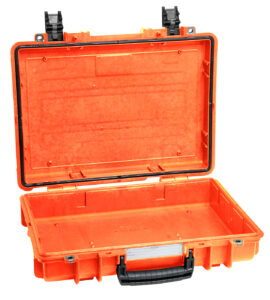

4209HL.O E

orange empty

4209HL.O

orange w/convoluted foam

4209HL.GGB

mil. green with gun bag

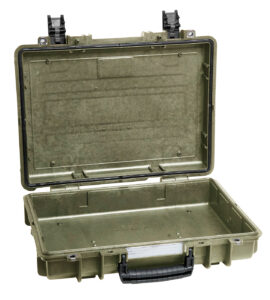

4209HL.G E

mil. green empty

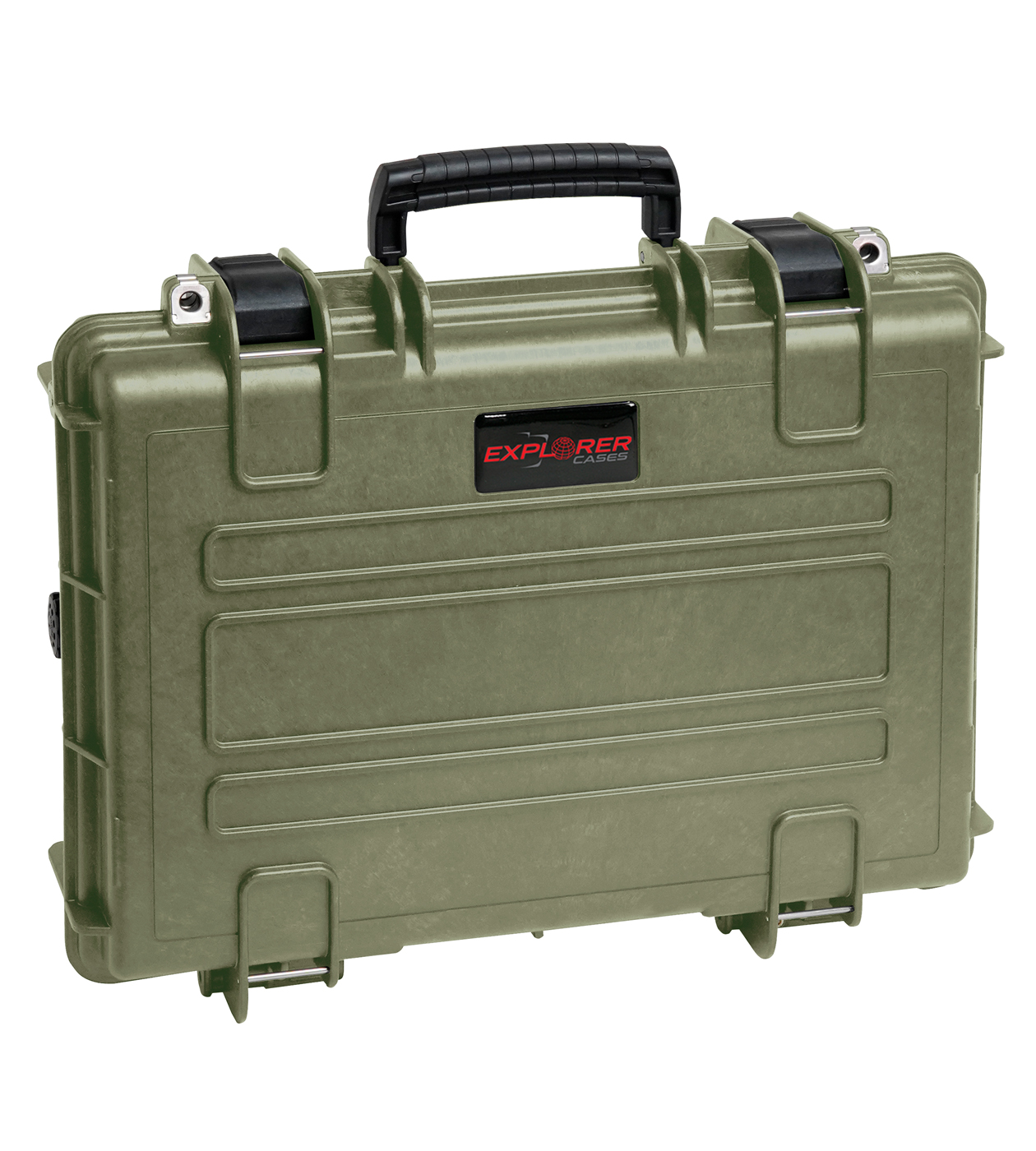

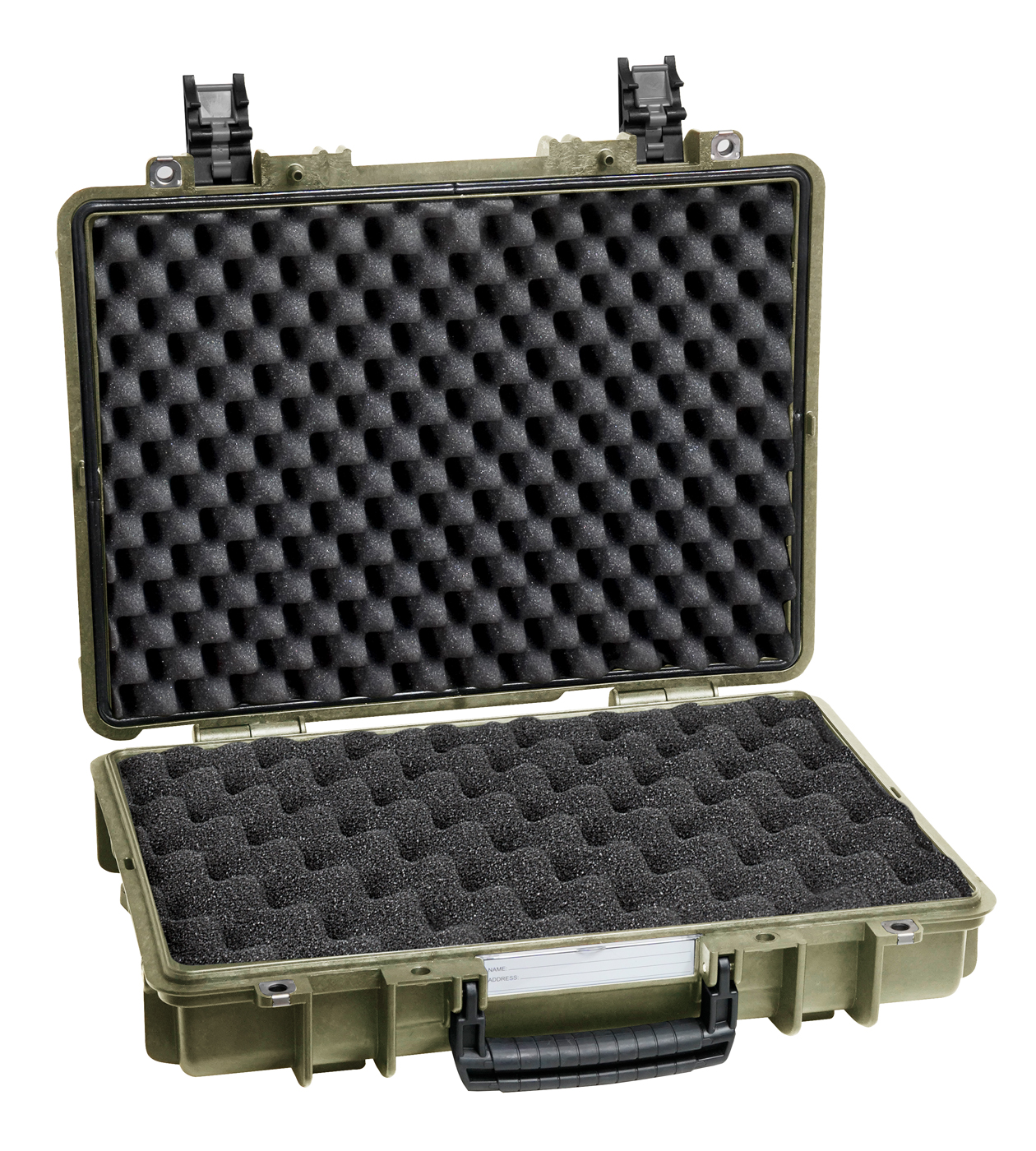

4209HL.GCV

mil. green w/convoluted foam

4209HL.G

mil. green w/pre-cubed foam

4209HL.DGB

des. sand with gun bag

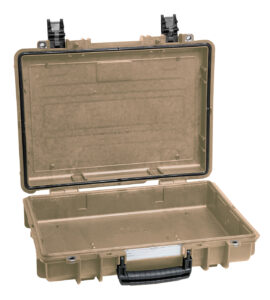

4209HL.D E

des. sand empty

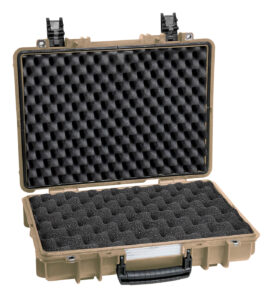

4209HL.DCV

des. sand w/convoluted foam

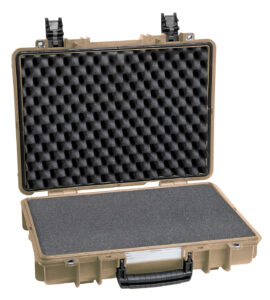

4209HL.D

des. sand w/pre-cubed foam

4209HL.BGB

black with gun bag

4209HL.B E

black empty

4209HL.BCV

black w/convoluted foam

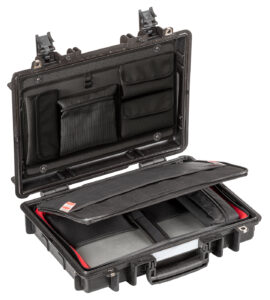

4209HL.B C

black w/pc bag

4209HL.B

black w/pre-cubed foam

Technical Specifications
Features
Accessories
Spare Parts

Internal dimensions

L Length 16 9/16 in

W Width 11 13/16 in

D Depth 3 3/4 in

Lid 1 3/8 in

Base 2 3/8 in

External dimensions

L Length 18 in

W Width 14 7/16 in

D Depth 4 5/8 in

Other data

Weight Empty 4.85 lbs

Weight With Foam 5.73 lbs

Weight With Custom Foam lbs

Volume 3.17 gal

Bouyancy lbs/max

Operating Temperature °F min -27.4 / max 194

Internal dimensions

L Length 420 mm

W Width 300 mm

D Depth 95 mm

Lid 35 mm

Base 60 mm

External dimensions

L Length 457 mm

W Width 366 mm

D Depth 118 mm

Other data

Weight Empty 2.2 Kg

Weight With Foam 2.6 Kg

Weight With Custom Foam Kg

Volume 12 lt

Bouyancy Kg/max

Operating Temperature °C min -33 / max +90

AUTOMATIC VALVE

AUTOMATIC VALVE

Automatic pressure release valve.

INTERNAL SLOTS

Internal slots for optional panel mounting brackets or panel mounting rings

JAM FREE LATCHES WITH EASY-OPENING MECHANISM

JAM FREE LATCHES WITH EASY-OPENING MECHANISM

(from model 3818 on)

PVC WATERPROOF I. D. REMOVABLE LABEL

PVC WATERPROOF I. D. REMOVABLE LABEL

(Art. LABELCOVER + nr. art.)

LID CAN BE SET TO SLIDE-OFF

LID CAN BE SET TO SLIDE-OFF

By releasing the back screw, lid becomes set to slide-off when opened at 70°

By releasing the back screw, lid becomes set to slide-off when opened at 70°

By releasing the back screw, lid becomes set to slide-off when opened at 70°

4 stainless steel clip-covers on the two frontal outer padlock points, to grant a better resistance to abrasion.

ABILITY TO STACK

ABILITY TO STACK

The special design of the bottom and the lid feet, grants a perfect stackability.

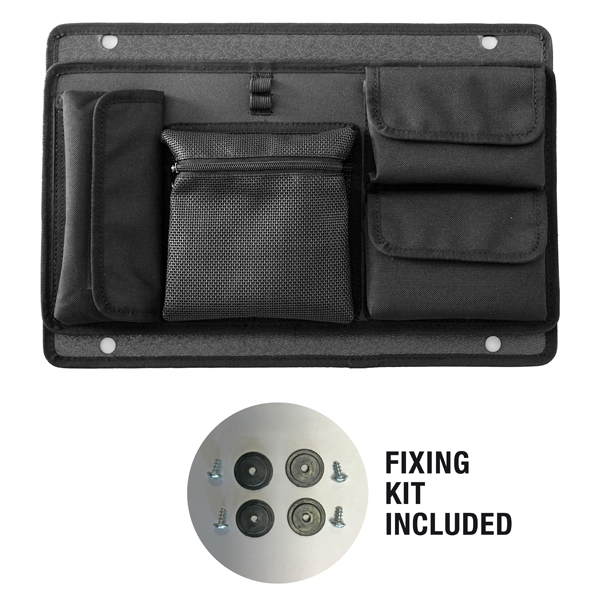

Mod. PANEXPL42

LID PANEL WITH ORGANIZED POUCHES

Mod. LIDFOAM.42

Mod. LIDFOAM.42

CONVOLUTED FOAM SET FOR CASE 4209 AND 4216

Mod. FOAM.4209

FOAM SET FOR CASE 4209

Mod. GBAG 42

PADDED GUN BAG FOR CASE 4209

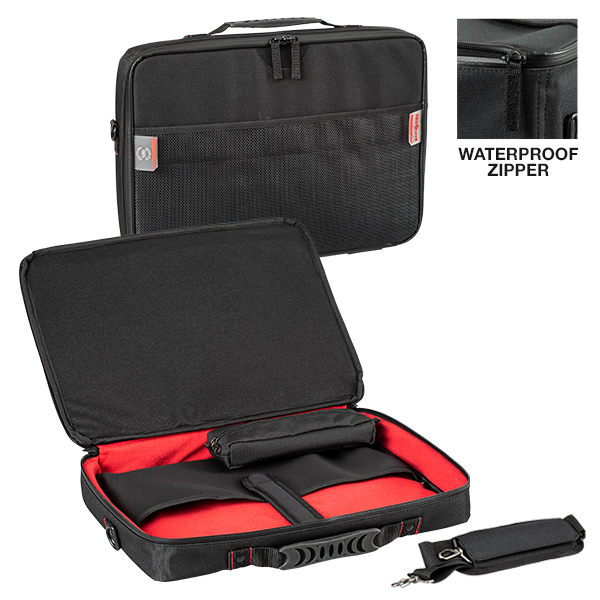

Mod. BAG-PC42

LAPTOP PADDED BAG

Mod. TOP ENVELOPE 15

Mod. TOP ENVELOPE 15

PROTECTIVE SLEEVE FOR PC 15"-15.6"

Mod. TOP ENVELOPE 13

Mod. TOP ENVELOPE 13

PROTECTIVE SLEEVE FOR PC 13"-13.3"

Mod. EXPL PADLOCK

Mod. EXPL PADLOCK

PATENTED HEAVY DUTY BRASS PADLOCK WITH KEYS

Mod. EXPL COMBILOCK

Mod. EXPL COMBILOCK

PATENTED COMBINATION PADLOCK

Mod. KIT.EXPL.PLUGS

Mod. KIT.EXPL.PLUGS

BLIND INSERT

Mod. EXPL TSA.DIGILOCK

Mod. EXPL TSA.DIGILOCK

TSA APPROVED PADLOCK WITH COMBINATION

Mod. KIT SUPP.EXPL.

Mod. KIT SUPP.EXPL.

METAL BRACKET - KIT SUPP. EXPL

Mod. KIT SUPP.PLAST.

Mod. KIT SUPP.PLAST.

PLASTIC BRACKET

Mod. BACKPACK M

Mod. BACKPACK M

HANDY BACKPACK CARRYING SYSTEM FOR CASES

Mod. KIN.1214

Metal clips for mod. 3005-4209-16-4412-19-4820-5140-5218-21-5325-26-5822-23-33-7626-30-35-41-7726-45-7814-9413-33-10826-40-11413-13513-27-15416

Mod. KIN.1211

Red trigger pull release latch for models 4209-4216-5218-5221

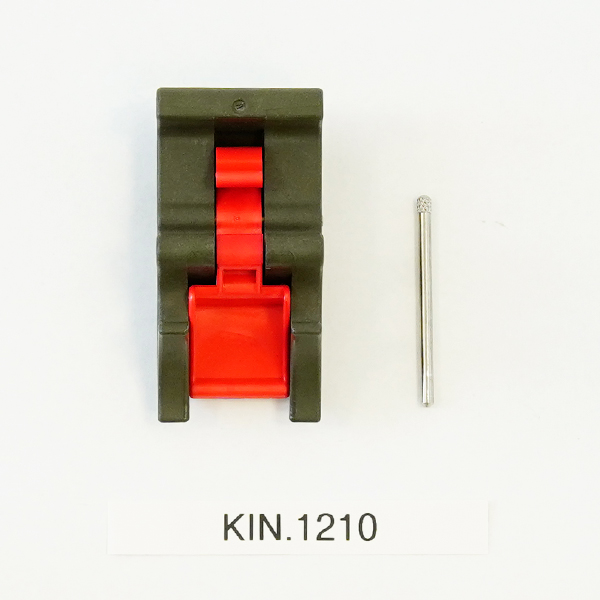

Mod. KIN.1210

Red trigger pull release latch for models 4209-4216-5218-5221

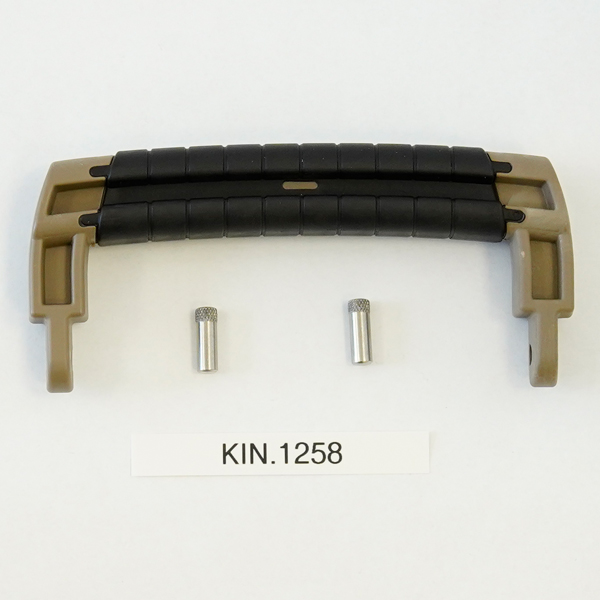

Mod. KIN.1258

Rubber coated handle for model 4209

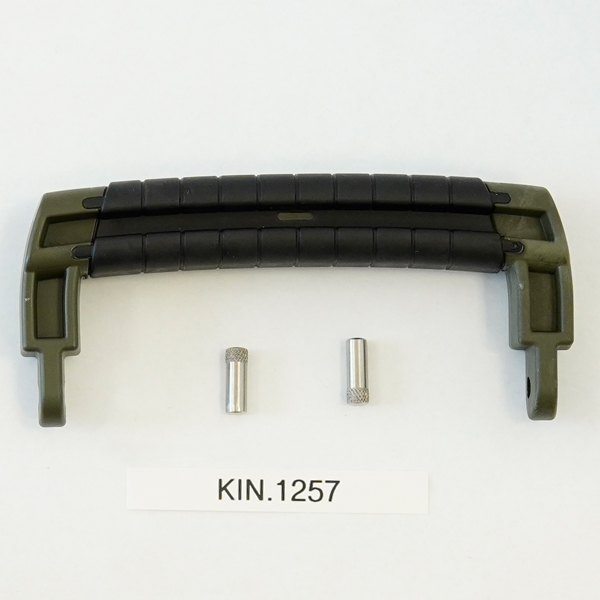

Mod. KIN.1257

Rubber coated handle for model 4209

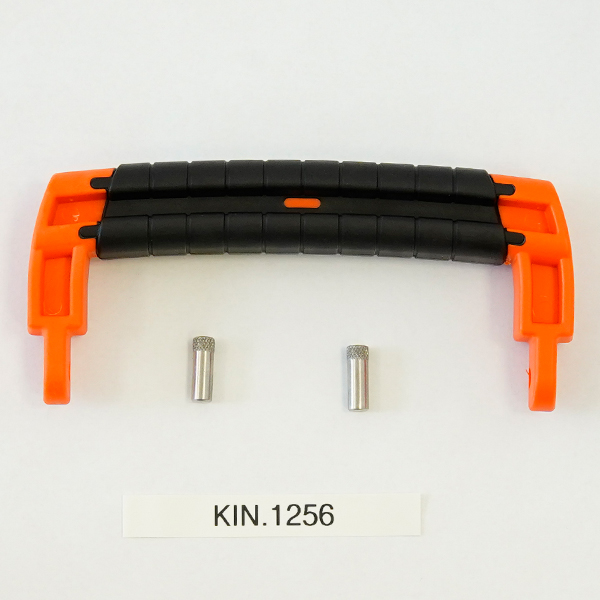

Mod. KIN.1256

Rubber coated handle for model 4209

Mod. KIN.1259

Rubber coated handle for model 4209

Mod. KIN.1209

Red trigger pull release latch for models 4209-4216-5218-5221

Mod. KIN.1297

Polyurethane o-ring seal for models 4209 and 4216

Mod. KIN.0969

Transparent PC name tag for mod. 4209-4216-4412-4419-4820-5218-5221-5325-5326-5822-5823-5833-7626-7630-7635-7641-7726-7745-7814-9413-9433-10826-10840-11413-13513-13527-15416-MUB65

Mod. KIN.0446

Easy-opening latch for models from 3818 up

Mod. KIN.0435

Easy-opening latch for models from 3818 up

Mod. KIN.0434

Easy-opening latch for models from 3818 up

Mod. KIN.0883

Easy-opening latch for models from 3818 up

Download

Product data sheet condensed

Product data sheet complete

High res. picture: case open

High res. picture: case closed

Technical Drawings

Certifications

Certificate 4209 - IP67-DS-ST-ITA-ING-PU
