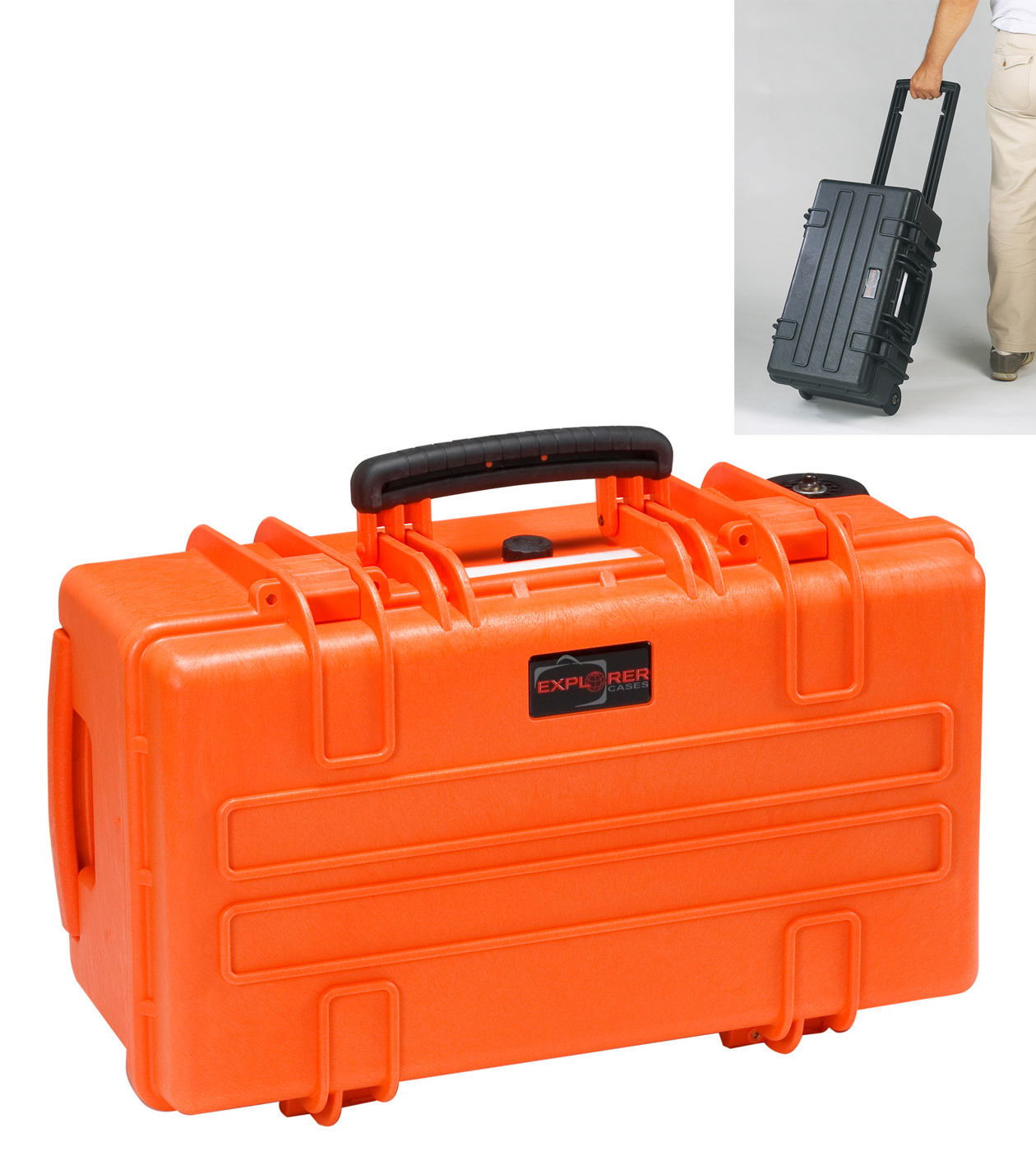

5122.O

EAN: 8024482014135

Heavy duty cases with wheels and telescopic handle. Sealing o-ring and removable lid. Available empty or with layers of pre-cubed foam in the bottom and convoluted foam in the lid. Self oiling free running wheels.

Models

5122.O E

orange empty

5122.O

orange w/pre-cubed foam

5122.G E

mil. green empty

5122.G

mil. green w/pre-cubed foam

5122.B E

black empty

5122.B

black w/pre-cubed foam

Technical Specifications
Features
Accessories
Spare Parts

Internal dimensions

L Length 20 3/8 in

W Width 10 7/8 in

D Depth 8 9/16 in

Lid 1 15/16 in

Base 6 9/16 in

External dimensions

L Length 21 1/2 in

W Width 13 11/16 in

D Depth 9 3/4 in

Other data

Weight Empty 13.22 lbs

Weight With Foam 15.43 lbs

Weight With Custom Foam lbs

Volume 8.18 gal

Bouyancy lbs/max

Operating Temperature °F min -27.4 / max +194

Internal dimensions

L Length 517 mm

W Width 277 mm

D Depth 217 mm

Lid 50 mm

Base 167 mm

External dimensions

L Length 546 mm

W Width 347 mm

D Depth 247 mm

Other data

Weight Empty 6 Kg

Weight With Foam 7 Kg

Weight With Custom Foam Kg

Volume 31 lt

Bouyancy Kg/max

Operating Temperature °C min -33 / max +90

CORROSION PROOF METAL HINGES WITH LID STAY FEATURES

CORROSION PROOF METAL HINGES WITH LID STAY FEATURES

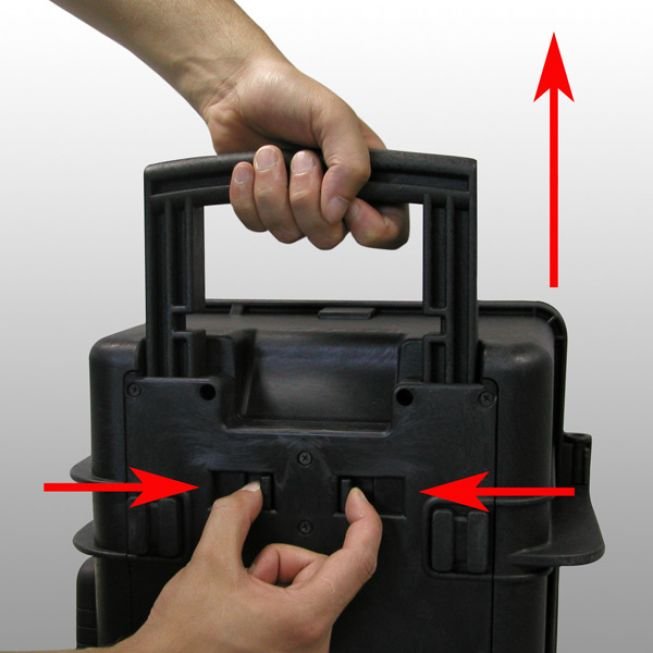

EASY TO OPEN RELEASE TELESCOPIC HANDLE (model 5122)

EASY TO OPEN RELEASE TELESCOPIC HANDLE (model 5122)

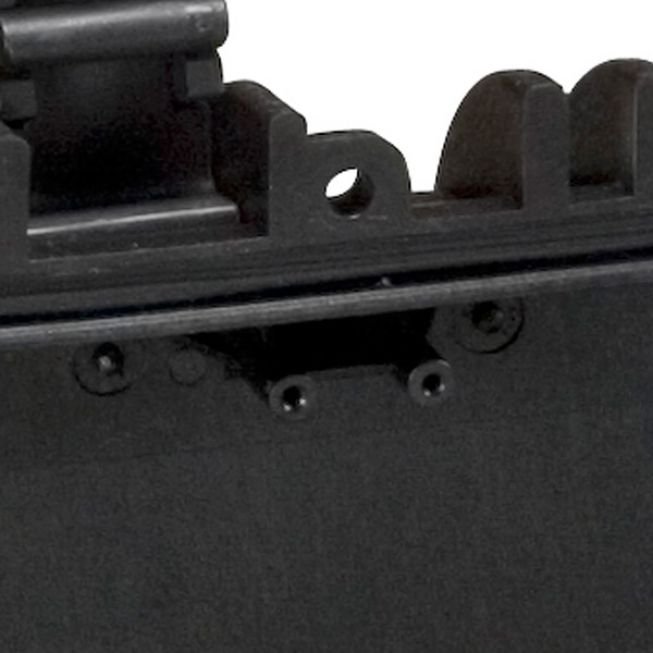

FIXING POINTS

Additional fixing points on the lid, available on certain models

INTERNAL SLOTS

Internal slots for optional panel mounting brackets or panel mounting rings

JAM FREE LATCHES WITH EASY-OPENING MECHANISM

JAM FREE LATCHES WITH EASY-OPENING MECHANISM

(from model 3818 on)

SEALING O-RING

(Art. NEOSEAL + nr. art.)O-RING

MANUAL PRESSURE RELEASE VALVE

MANUAL PRESSURE RELEASE VALVE

The internal stop ring prevents valve from being completely extracted (Art. PURGEVALVE.B)

PVC WATERPROOF I. D. REMOVABLE LABEL

PVC WATERPROOF I. D. REMOVABLE LABEL

(Art. LABELCOVER + nr. art.)

LID CAN BE SET TO SLIDE-OFF

LID CAN BE SET TO SLIDE-OFF

By releasing the back screw, lid becomes set to slide-off when opened at 70°

SOFT GRIP RUBBER HANDLE

SOFT GRIP RUBBER HANDLE

Load tested handle, reinforced with corrosion proof steel pins

WHEELS WITH BEARINGS

WHEELS WITH BEARINGS

Mod. TOP ENVELOPE 15

Mod. TOP ENVELOPE 15

PROTECTIVE SLEEVE FOR PC 15"-15.6"

Mod. TOP ENVELOPE 13

Mod. TOP ENVELOPE 13

PROTECTIVE SLEEVE FOR PC 13"-13.3"

Mod. COV51

TOP COVER FOR DIV51

Mod. DIV51

PADDED DIVIDER FOR 5117-5122

Mod. PANRING51.USA

Mod. PANRING51.USA

PANEL RING FOR CASE 5117 AND 5122

Mod. PANEXPL51

LID PANEL WITH ORGANIZED POUCHES

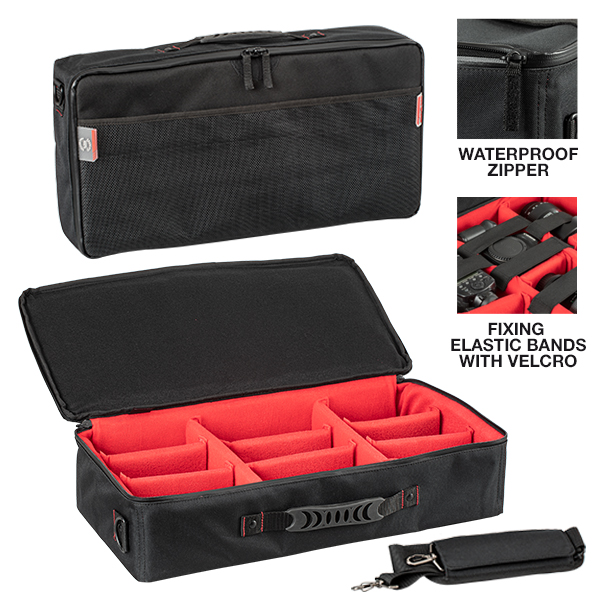

Mod. BAG-B

PADDED BAG WITH ADJUSTABLE DIVIDERS

Mod. PANRING51

PANEL RING FOR CASE 5117 AND 5122

Mod. EXPL PADLOCK

Mod. EXPL PADLOCK

PATENTED HEAVY DUTY BRASS PADLOCK WITH KEYS

Mod. EXPL COMBILOCK

Mod. EXPL COMBILOCK

PATENTED COMBINATION PADLOCK

Mod. KIT.EXPL.PLUGS

Mod. KIT.EXPL.PLUGS

BLIND INSERT

Mod. EXPL TSA.DIGILOCK

Mod. EXPL TSA.DIGILOCK

TSA APPROVED PADLOCK WITH COMBINATION

Mod. KIT SUPP.EXPL.

Mod. KIT SUPP.EXPL.

METAL BRACKET - KIT SUPP. EXPL

Mod. KIT SUPP.PLAST.

Mod. KIT SUPP.PLAST.

PLASTIC BRACKET

Mod. LIDFOAM.51

Mod. LIDFOAM.51

CONVOLUTED FOAM SET FOR CASE 5117 AND 5122

Mod. FOAM.5122

FOAM SET FOR CASE 5122

Mod. KIN.0479

Rubber coated handle for models 3818-4412-4419-5117-5122

Mod. KIN.0469

Rubber coated handle for models 3818-4412-4419-5117-5122

Mod. KIN.0852

Polyurethane o-ring seal for models 5117 and 5122

Mod. KIN.0496

Name tag holder for mod. 2712-2717-3317-3317W-3818-5117-5122-MUB78

Mod. KIN.0446

Easy-opening latch for models from 3818 up

Mod. KIN.0435

Easy-opening latch for models from 3818 up

Mod. KIN.0434

Easy-opening latch for models from 3818 up

Mod. KIN.0523

Wheels for model 5122

Mod. KIN.0468

Rubber coated handle for models 3818-4412-4419-5117-5122

Mod. KIN.0445

Extractable handle for model 5122

Mod. KIN.0883

Easy-opening latch for models from 3818 up

Mod. KIN.0495

Manual pressure release valve for models from 2712 up (except mod. 3005)

Download

Product data sheet condensed

Product data sheet complete

High res. picture: case open

High res. picture: case closed

Technical Drawings

Certifications

Certificate 5122 - IP67-DS ITA-ING EPDM
