Home / Products / Mod. 5140 / 5140X.B.7A

5140X.B.7A

EAN: 8024482187969

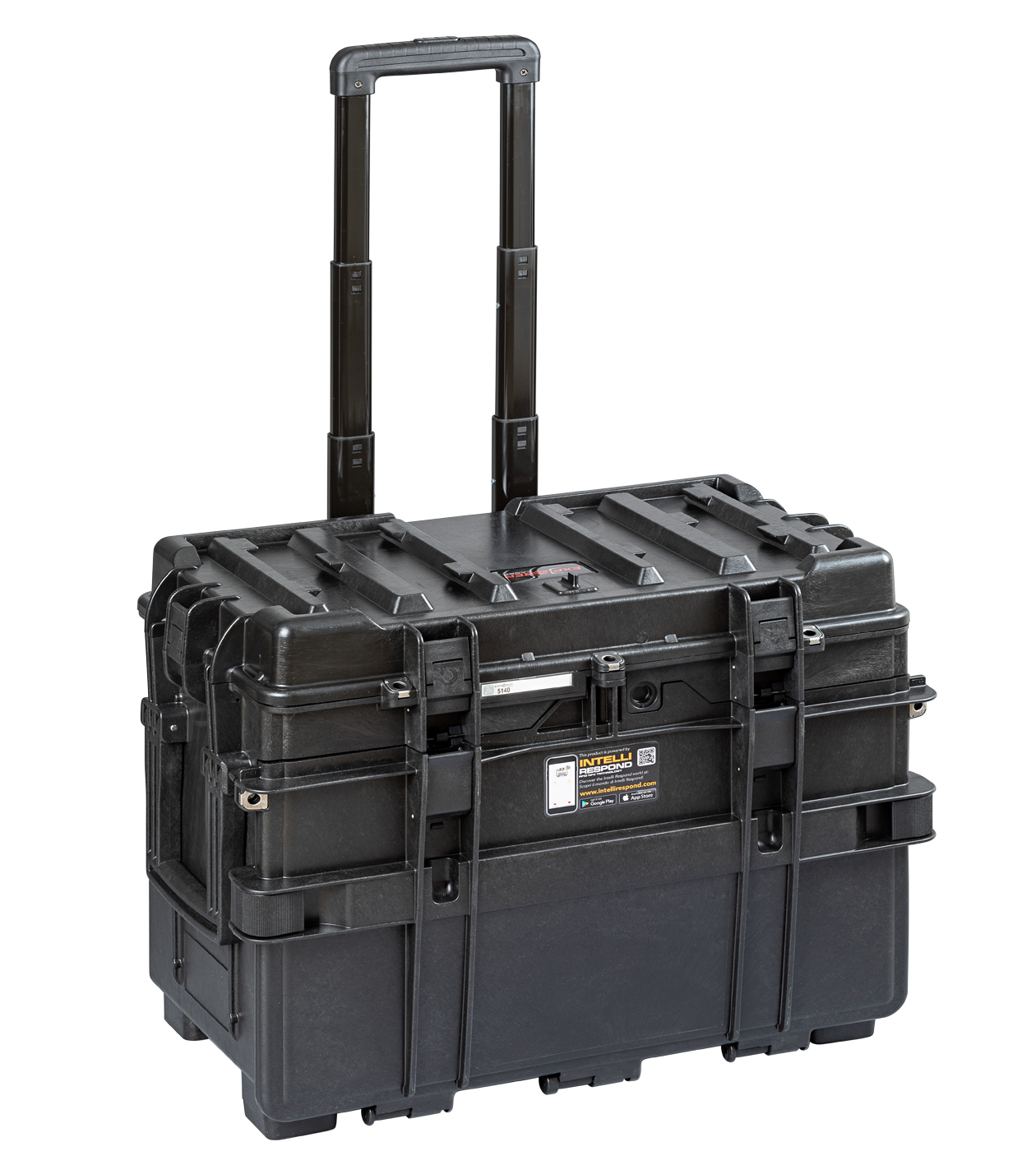

Polypropylene waterproof containers with extractable drawers. This trolley is specifically engineered for the professionals who need to carry a variety of tools and spare components. Pivoting wheels on demand.

Models

5140.B.L2R

BLACK DRAWERS EMPTY

5140X.B.C3M

BLACK ORGANIZERS WITH FOAM

5140X.B.C2S

BLACK ORGANIZERS WITH FOAM

5140X.B.A3L

BLACK ORGANIZERS EMPTY

5140X.B.A2R

BLACK ORGANIZERS EMPTY

5140X.B.7C

BLACK ORGANIZERS WITH FOAM

5140X.B.7A

BLACK ORGANIZERS EMPTY

5140X.B.5CM

BLACK ORGANIZERS WITH FOAM

5140X.B.5AL

BLACK ORGANIZERS EMPTY

5140X.B.4CS

BLACK ORGANIZERS WITH FOAM

5140X.B.4AR

BLACK ORGANIZERS EMPTY

5140X.B.3C2M

BLACK ORGANIZERS WITH FOAM

5140X.B.3A2L

BLACK ORGANIZERS EMPTY

5140X.B.2MS

BLACK ORGANIZERS WITH FOAM

5140X.B.2LR

BLACK ORGANIZERS EMPTY

5140X.B.2CMS

BLACK ORGANIZERS WITH FOAM

5140X.B.2ALR

BLACK ORGANIZERS EMPTY

5140X.B

black organizers ready

5140.BKTE.AH

black drawers ready

5140.BKT03.AH

BLACK DRAWERS EMPTY

5140.BKT02.AH

black empty

5140.BKT01.AH

BLACK DRAWERS WITH FOAM

5140.BE.AH

black completely empty

5140.B.M2S

BLACK DRAWERS WITH FOAM

5140.B.8C

BLACK DRAWERS WITH FOAM

5140.B.8A

BLACK DRAWERS EMPTY

5140.B.6CM

BLACK DRAWERS WITH FOAM

5140.B.6AL

BLACK DRAWERS EMPTY

5140.B.5CS

BLACK DRAWERS WITH FOAM

5140.B.5AR

BLACK DRAWERS EMPTY

5140.B.4M

BLACK DRAWERS WITH FOAM

5140.B.4L

BLACK DRAWERS EMPTY

5140.B.4C2M

BLACK DRAWERS WITH FOAM

5140.B.3CMS

BLACK DRAWERS WITH FOAM

5140.B.3ALR

BLACK DRAWERS EMPTY

5140.B.2C3M

BLACK DRAWERS WITH FOAM

5140.B.2C2S

BLACK DRAWERS WITH FOAM

5140.B.2A3L

BLACK DRAWERS EMPTY

5140.B.2A2R

BLACK DRAWERS EMPTY

Technical Specifications
Features
Accessories
Spare Parts

Internal dimensions

L Length 20 5/6 in

W Width 11 5/8 in

D Depth 15 13/16 in

Lid in

Base in

External dimensions

L Length 22 7/8 in

W Width 15 in

D Depth 17 15/16 in

Other data

Weight Empty 21.49 lbs

Weight With Foam lbs

Weight With Custom Foam lbs

Volume gal

Bouyancy lbs/max

Operating Temperature °F min -27.4 / max +194

Internal dimensions

L Length 516 mm

W Width 296 mm

D Depth 402 mm

Lid mm

Base mm

External dimensions

L Length 581 mm

W Width 381 mm

D Depth 455 mm

Other data

Weight Empty 9.75 Kg

Weight With Foam Kg

Weight With Custom Foam Kg

Volume lt

Bouyancy Kg/max

Operating Temperature °C min -33 / max +90

UNIQUE "STOP-IN-OPEN-POSITION" DRAWERS SYSTEM

UNIQUE "STOP-IN-OPEN-POSITION" DRAWERS SYSTEM

All drawers are provided with a self-restrain stop to prevent the accidental falling out.

ABILITY TO STACK

ABILITY TO STACK

The special design of the bottom and the lid feet, grants a perfect stackability.

TOP AND FRONT LIDS LATCHES

TOP AND FRONT LIDS LATCHES

4 Jam free top lid latches with easy opening mechanism and 4 front main door latches.

METAL CLIPS

Clips metálicos reforzados en los principales puntos para candados.

TOP LID O-RING

Both the top and front lids are equipped with a polyurethane sealing o-rings, that make the case to be completely waterproof.

FRONT LID O-RING

FRONT LID O-RING

Both the top and front lids are equipped with a polyurethane sealing o-rings, that make the case to be completely waterproof.

SIDE HANDLES

Two side handles allow an easy transportation.

WRITABLE NAME TAG

WRITABLE NAME TAG

PVC waterproof ID removable label

AUTOMATIC PURGE VALVE

AUTOMATIC PURGE VALVE

Automatic pressure release valve.

REMOVABLE TOP LID

REMOVABLE TOP LID

By releasing the screw both, the top and front lids can be slide off.

REMOVABLE FRONT LID

REMOVABLE FRONT LID

By releasing the screw both, the top and front lids can be slide off.

FRONT LID OPENING

FRONT LID OPENING

La tapa frontal se puede abrir hasta 180°.

WHEELS

4 self-oiling free running wheels

Mod. AIDRAW9.F

TOOL ORGANIZER

Mod. AIDRAW9.E

TOOL ORGANIZER

Mod. AIDRAW6.F

TOOL ORGANIZER

Mod. AIDRAW6.E

TOOL ORGANIZER

Mod. AIDRAW3.F

TOOL ORGANIZER

Mod. AIDRAW3.E

TOOL ORGANIZER

Mod. AIBOX9.F

TOOL ORGANIZER WITH LID

Mod. AIBOX6.F

TOOL ORGANIZER WITH LID

Mod. AIBOX3.F

TOOL ORGANIZER WITH LID

Mod. AIPANEL PLEXI

Mod. AIPANEL PLEXI

AIPANEL PLEXI

Mod. TOP ENVELOPE 15

Mod. TOP ENVELOPE 15

PROTECTIVE SLEEVE FOR PC 15"-15.6"

Mod. TOP ENVELOPE 13

Mod. TOP ENVELOPE 13

PROTECTIVE SLEEVE FOR PC 13"-13.3"

Mod. AIBOX6.E

TOOL ORGANIZER WITH LID

Mod. AIWHEELS

Set of pivoting wheels

Mod. AIBOX9.E

TOOL ORGANIZER WITH LID

Mod. AIBOX3.E

TOOL ORGANIZER WITH LID

Mod. EXPL PADLOCK

Mod. EXPL PADLOCK

PATENTED HEAVY DUTY BRASS PADLOCK WITH KEYS

Mod. EXPL COMBILOCK

Mod. EXPL COMBILOCK

PATENTED COMBINATION PADLOCK

Mod. KIT.EXPL.PLUGS

Mod. KIT.EXPL.PLUGS

BLIND INSERT

Mod. EXPL TSA.DIGILOCK

Mod. EXPL TSA.DIGILOCK

TSA APPROVED PADLOCK WITH COMBINATION

Mod. KIT SUPP.EXPL.

Mod. KIT SUPP.EXPL.

METAL BRACKET - KIT SUPP. EXPL

Mod. KIT SUPP.PLAST.

Mod. KIT SUPP.PLAST.

PLASTIC BRACKET

Mod. KIN.1093

Fixed divider for upper compartment – mod. 5140

Mod. KIN.1214

Metal clips for mod. 3005-4209-16-4412-19-4820-5140-5218-21-5325-26-5822-23-33-7626-30-35-41-7726-45-7814-9413-33-10826-40-11413-13513-27-15416

Mod. KIN.1166

Polyurethane o-ring seal for model 5140 – front lid

Mod. KIN.1077

Vertical sliding frontal latch for model 5140 – green slide

Mod. KIN.1051

Curved side latch for model 5140

Mod. KIN.1306

Extractable handle for mod. 5140 (new version)

Mod. KIN.1197

Side handle for models 5140 (new version) and 9433

Mod. KIN.1165

Polyurethane o-ring seal for model 5140 – top lid

Mod. KIN.1032

Feet for model 5140

Mod. KIN.1031

Wheels for model 5140

Mod. KIN.1019

Upper removable tray for mod. 5140

Mod. KIN.0446

Easy-opening latch for models from 3818 up

Mod. KIN.0435

Easy-opening latch for models from 3818 up

Mod. KIN.0434

Easy-opening latch for models from 3818 up

Mod. KIN.0837

Mod. KIN.0497

Name tag holder for models 1908-1913-2209-2214-3005-5140

Mod. KIN.0495

Manual pressure release valve for models from 2712 up (except mod. 3005)
