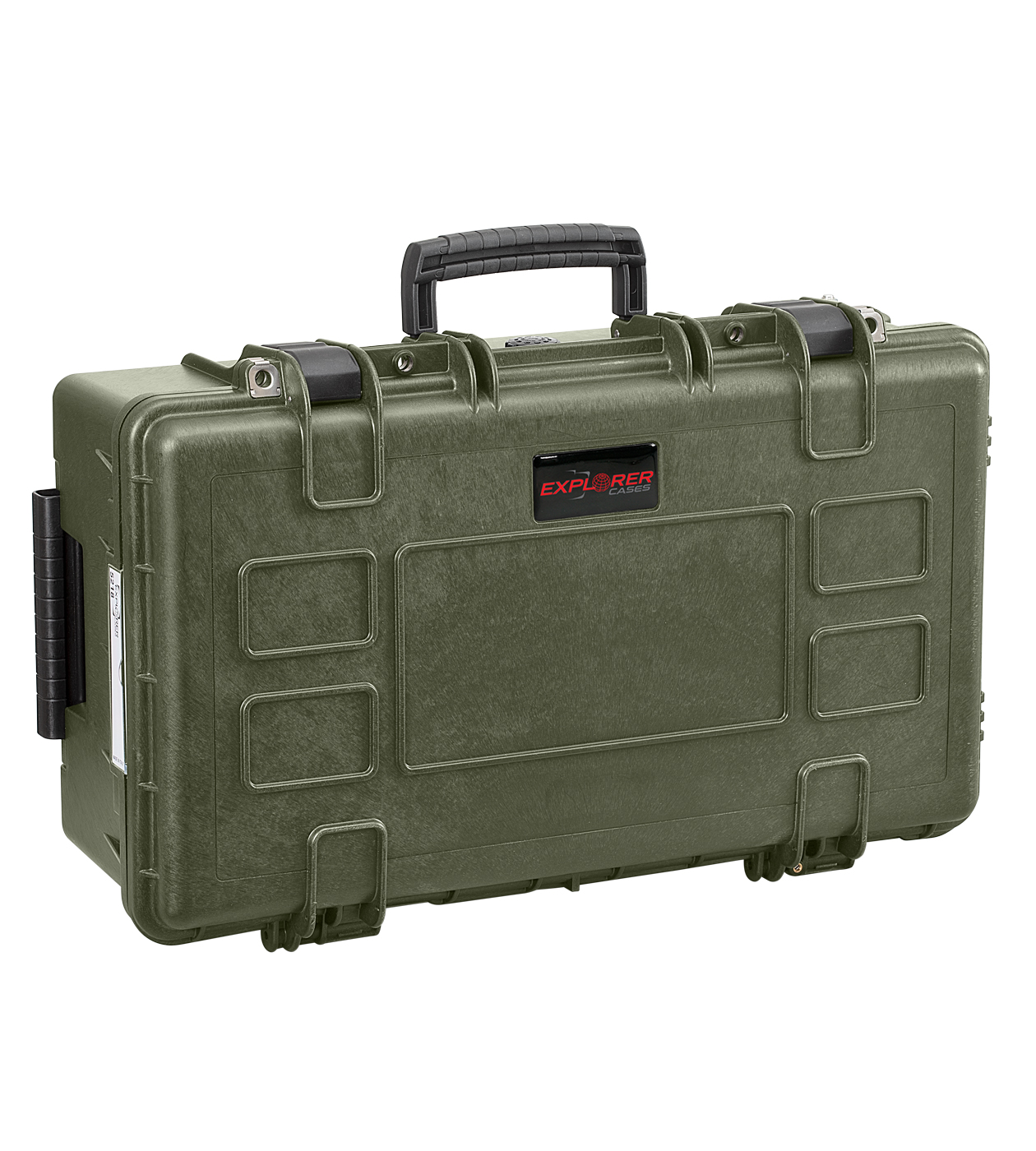

5218HL.G E

EAN: 8024482183329

Heavy duty cases with wheels with ball bearings and telescopic handle. Sealing o-ring and removable lid. Available empty or with layers of pre-cubed foam in the bottom and convoluted foam in the lid.

Models

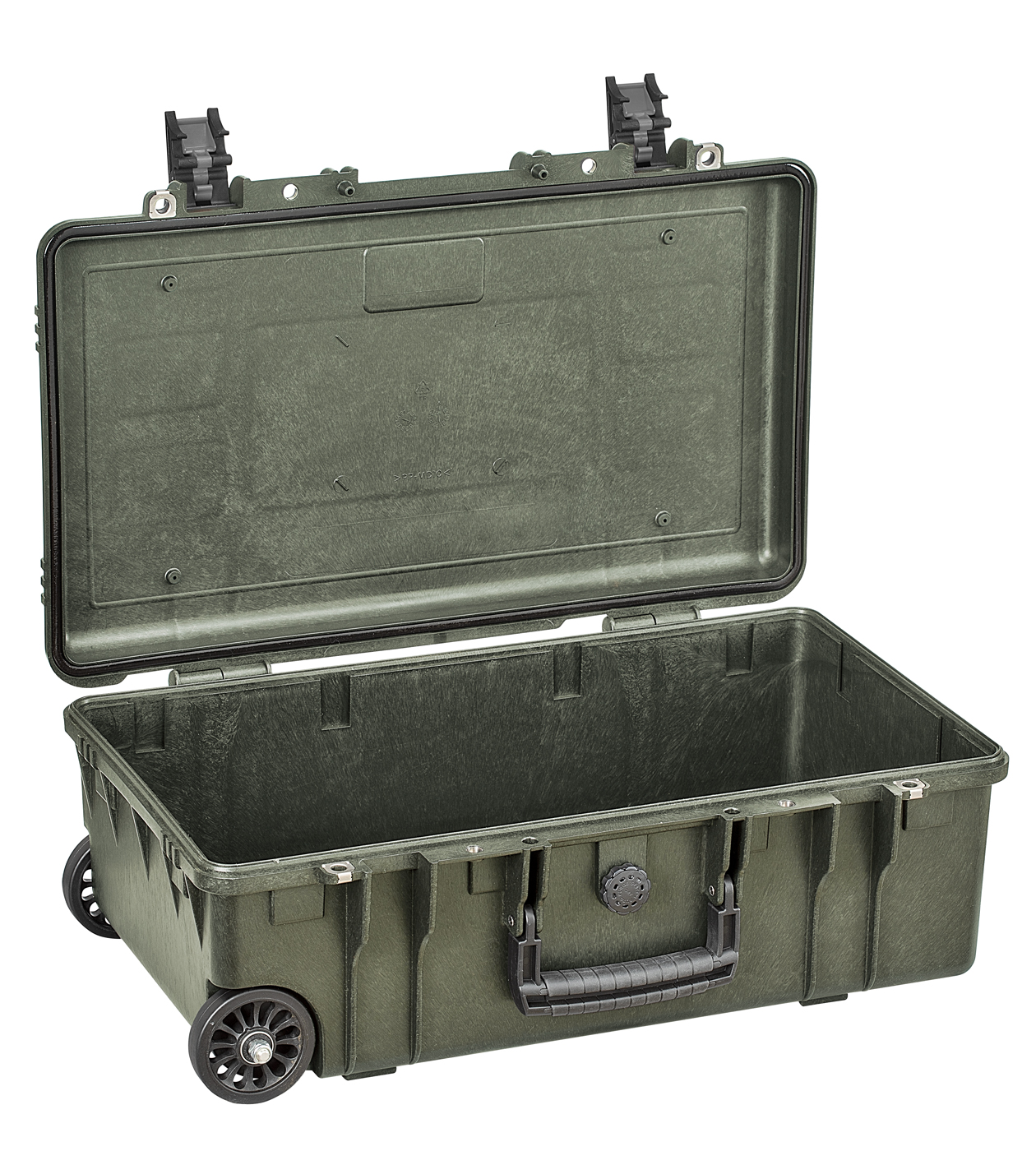

5218HL.G E

mil. green empty

5218HL.G

mil. green w/pre-cubed foam

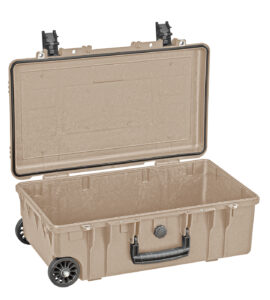

5218HL.D E

des. sand empty

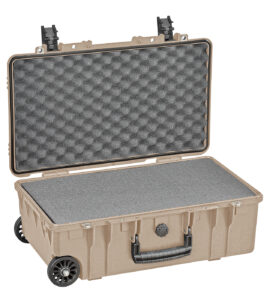

5218HL.D

des. sand w/pre-cubed foam

5218HL.B E

black empty

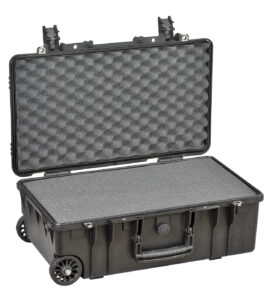

5218HL.B

black w/pre-cubed foam

Technical Specifications
Features
Accessories
Spare Parts

Internal dimensions

L Length 20 1/2 in

W Width 11 1/4 in

D Depth 7 1/16 in

Lid 1 3/16 in

Base 5 7/8 in

External dimensions

L Length 21 5/8 in

W Width 13 3/4 in

D Depth 7 7/8 in

Other data

Weight Empty 8.26 lbs

Weight With Foam 9.47 lbs

Weight With Custom Foam lbs

Volume 6.86 gal

Bouyancy lbs/max

Operating Temperature °F min -27.4 / max +194

Internal dimensions

L Length 520 mm

W Width 285 mm

D Depth 180 mm

Lid 30 mm

Base 150 mm

External dimensions

L Length 550 mm

W Width 350 mm

D Depth 200 mm

Other data

Weight Empty 3.75 Kg

Weight With Foam 4.30 Kg

Weight With Custom Foam Kg

Volume 26 lt

Bouyancy Kg/max

Operating Temperature °C min -33 / max +90

LID CAN BE SET SLIDE-OFF

LID CAN BE SET SLIDE-OFF

By releasing the back screw, lid becomes set to slide-off when opened at 70°

REINFORCED PADLOCKABLE POINTS

REINFORCED PADLOCKABLE POINTS

Stainless steel clip-covers, to grant a better resistance to abrasion.

EASY TO OPEN RELEASE TELESCOPIC HANDLE (5218-5221)

EASY TO OPEN RELEASE TELESCOPIC HANDLE (5218-5221)

PULL RELEASE LATCH

PULL RELEASE LATCH

New pull release latch grants additional safety and avoids accidental opening

SHIPPING LABEL HOLDER (OPTIONAL)

SHIPPING LABEL HOLDER (OPTIONAL)

Polycarbonate removable label

AUTOMATIC VALVE

AUTOMATIC VALVE

Automatic pressure release valve.

SOFT GRIP HANDLE

SOFT GRIP HANDLE

Load tested handle, reinforced with corrosion proof steel pins

SELF OILING FREE RUNNING WHEELS

SELF OILING FREE RUNNING WHEELS

INTERNAL SLOTS

Internal slots for optional panel mounting brackets or panel mounting rings

SEALING O-RING

(Art. NEOSEAL + nr. art.)

PVC WATERPROOF I. D. REMOVABLE LABEL

PVC WATERPROOF I. D. REMOVABLE LABEL

(Art. LABELCOVER + nr. art.)

WRITABLE NAME TAG

WRITABLE NAME TAG

PVC waterproof ID removable label

Mod. BACKPACK CABIN

Mod. BACKPACK CABIN

HANDY BACKPACK CARRYING SYSTEM FOR CASES 5218-5221

Mod. DIV52

PADDED DIVIDER FOR 5218-5221

Mod. PANEXPL52

LID PANEL WITH ORGANIZED POUCHES

Mod. FOAM.5218

FOAM SET FOR CASE 5218

Mod. LIDFOAM.5218

Mod. LIDFOAM.5218

CONVOLUTED FOAM SET FOR CASE 5218

Mod. EXPL PADLOCK

Mod. EXPL PADLOCK

PATENTED HEAVY DUTY BRASS PADLOCK WITH KEYS

Mod. EXPL COMBILOCK

Mod. EXPL COMBILOCK

PATENTED COMBINATION PADLOCK

Mod. BACKPACK L

Mod. BACKPACK L

HANDY BACKPACK CARRYING SYSTEM FOR CASES

Mod. KIT.EXPL.PLUGS

Mod. KIT.EXPL.PLUGS

BLIND INSERT

Mod. EXPL TSA.DIGILOCK

Mod. EXPL TSA.DIGILOCK

TSA APPROVED PADLOCK WITH COMBINATION

Mod. KIT SUPP.EXPL.

Mod. KIT SUPP.EXPL.

METAL BRACKET - KIT SUPP. EXPL

Mod. KIT SUPP.PLAST.

Mod. KIT SUPP.PLAST.

PLASTIC BRACKET

Mod. KIN.1214

Metal clips for mod. 3005-4209-16-4412-19-4820-5140-5218-21-5325-26-5822-23-33-7626-30-35-41-7726-45-7814-9413-33-10826-40-11413-13513-27-15416

Mod. KIN.1211

Red trigger pull release latch for models 4209-4216-5218-5221

Mod. KIN.1210

Red trigger pull release latch for models 4209-4216-5218-5221

Mod. KIN.1255

Rubber coated handle for models 4216-5218-5221

Mod. KIN.1207

Rubber coated handle for models 4216-5218-5221

Mod. KIN.1206

Rubber coated handle for models 4216-5218-5221

Mod. KIN.1204

Extractable handle for models 5218-5221

Mod. KIN.1203

Extractable handle for models 5218-5221

Mod. KIN.1224

transparent polycarbonate shipping label holders for mod. 5218-5221-7626-7635-7726-7745-9433

Mod. KIN.1216

Wheels for models 5218-5221

Mod. KIN.1209

Red trigger pull release latch for models 4209-4216-5218-5221

Mod. KIN.1205

Rubber coated handle for models 4216-5218-5221

Mod. KIN.1202

Extractable handle for models 5218-5221

Mod. KIN.1201

Polyurethane o-ring seal for models 5218 and 5221

Mod. KIN.0969

Transparent PC name tag for mod. 4209-4216-4412-4419-4820-5218-5221-5325-5326-5822-5823-5833-7626-7630-7635-7641-7726-7745-7814-9413-9433-10826-10840-11413-13513-13527-15416-MUB65

Mod. KIN.0446

Easy-opening latch for models from 3818 up

Mod. KIN.0435

Easy-opening latch for models from 3818 up

Mod. KIN.0434

Easy-opening latch for models from 3818 up

Mod. KIN.0883

Easy-opening latch for models from 3818 up

Download

Product data sheet condensed

Product data sheet complete

High res. picture: case open

High res. picture: case closed

Certifications

Certificate 5218 - IP67-DS-ST ING PU
