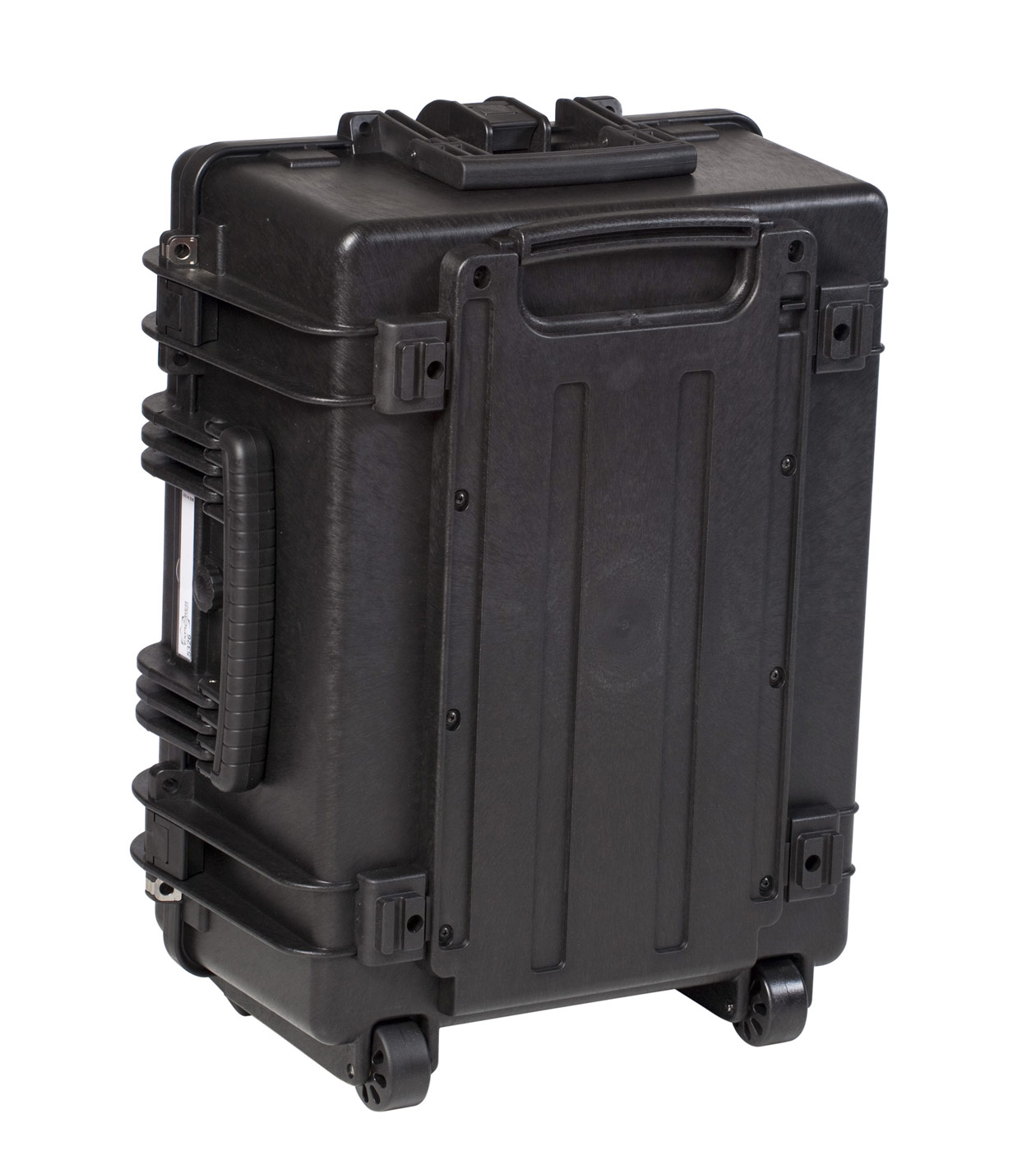

5326.B E

EAN: 8024482177007

Transport cases resistant to chemicals, humidity and dust. Resistant to harshest temperatures (-33°C / +90°C). Custom foams available on demand. Self oiling free running wheels.

Models

5326.O E

orange empty

5326.O

orange w/pre-cubed foam

5326.G E

mil. green empty

5326.G

mil. green w/pre-cubed foam

5326.B E

black empty

5326.B

black w/pre-cubed foam

Technical Specifications
Features
Accessories
Spare Parts

Internal dimensions

L Length 21 3/16 in

W Width 15 15/16 in

D Depth 9 13/16 in

Lid 2 3/8 in

Base 7 1/2 in

External dimensions

L Length 24 11/16 in

W Width 18 11/16 in

D Depth 11 1/2 in

Other data

Weight Empty 22.04 lbs

Weight With Foam 24.80 lbs

Weight With Custom Foam lbs

Volume 14 gal

Bouyancy lbs/max

Operating Temperature °F min -27.4 / max +194

Internal dimensions

L Length 538 mm

W Width 405 mm

D Depth 250 mm

Lid 60 mm

Base 190 mm

External dimensions

L Length 627 mm

W Width 475 mm

D Depth 292 mm

Other data

Weight Empty 10 Kg

Weight With Foam 11.25 Kg

Weight With Custom Foam Kg

Volume 53 lt

Bouyancy Kg/max

Operating Temperature °C min -33 / max +90

SELF OILING FREE RUNNING WHEELS

SELF OILING FREE RUNNING WHEELS

CORROSION PROOF METAL HINGES WITH LID STAY FEATURES

CORROSION PROOF METAL HINGES WITH LID STAY FEATURES

INTERNAL SLOTS

JAM FREE LATCHES WITH EASY-OPENING MECHANISM

JAM FREE LATCHES WITH EASY-OPENING MECHANISM

(from model 3818 on)

SEALING O-RING

(Art. NEOSEAL + nr. art.)

MANUAL PRESSURE RELEASE VALVE

MANUAL PRESSURE RELEASE VALVE

The internal stop ring prevents valve from being completely extracted (Art. PURGEVALVE.B)

PVC WATERPROOF I. D. REMOVABLE LABEL

PVC WATERPROOF I. D. REMOVABLE LABEL

(Art. LABELCOVER + nr. art.)

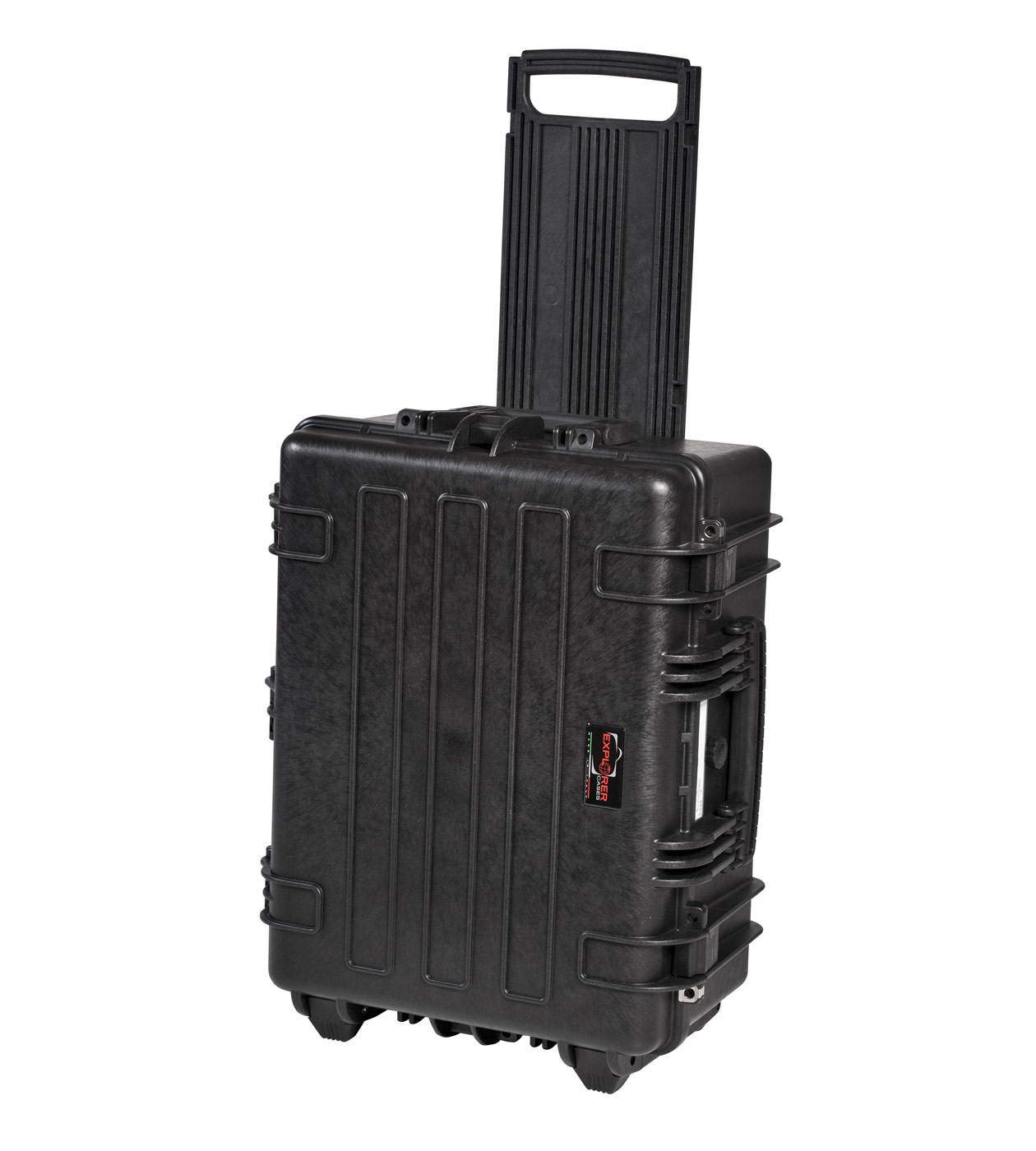

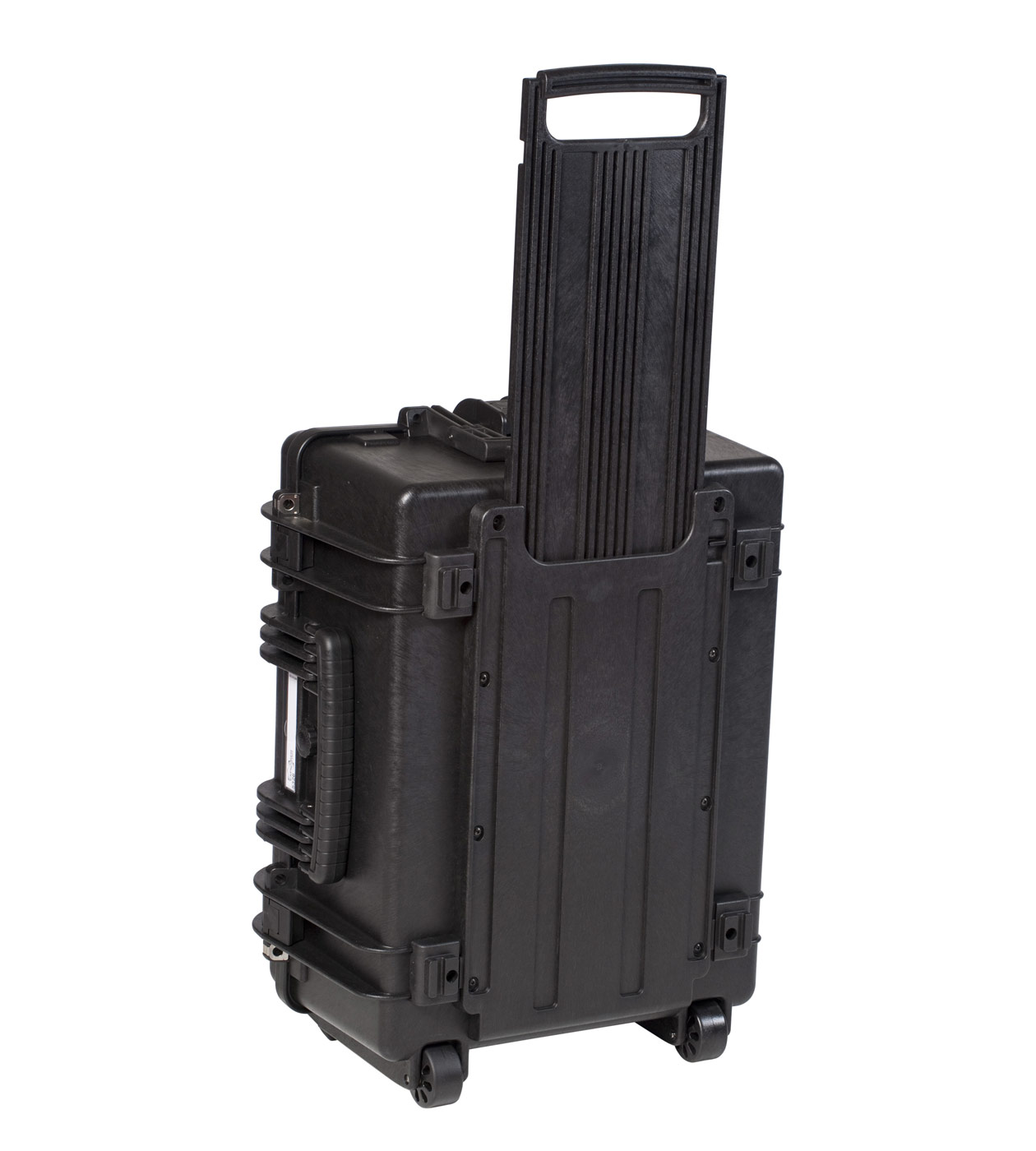

TELESCOPIC HANDLE WITH QUICK AND SAFE LOCK-UNLOCK SYSTEM

TELESCOPIC HANDLE WITH QUICK AND SAFE LOCK-UNLOCK SYSTEM

LID CAN BE SET TO SLIDE-OFF

LID CAN BE SET TO SLIDE-OFF

By releasing the back screw, lid becomes set to slide-off when opened at 70°

SOFT GRIP RUBBER HANDLE

SOFT GRIP RUBBER HANDLE

Load tested handle, reinforced with corrosion proof steel pins

TWO MAN LIFT SIDE HANDLES

TWO MAN LIFT SIDE HANDLES

STAINLESS STEEL REINFORCED PADLOCKABLE POINTS WITH CLIPS

STAINLESS STEEL REINFORCED PADLOCKABLE POINTS WITH CLIPS

4 stainless steel clip-covers on the two frontal outer padlock points, to grant a better resistance to abrasion.

FIXING POINTS (5325-5326)

FIXING POINTS (5325-5326)

Additional fixing points on the lid.

Mod. TOP ENVELOPE 15

Mod. TOP ENVELOPE 15

PROTECTIVE SLEEVE FOR PC 15"-15.6"

Mod. TOP ENVELOPE 13

Mod. TOP ENVELOPE 13

PROTECTIVE SLEEVE FOR PC 13"-13.3"

Mod. BPH53

PADDED BAG-BACKPACK FOR 5326

Mod. DRN53

PADDED BAG-BACKPACK FOR DRONE FOR 5326

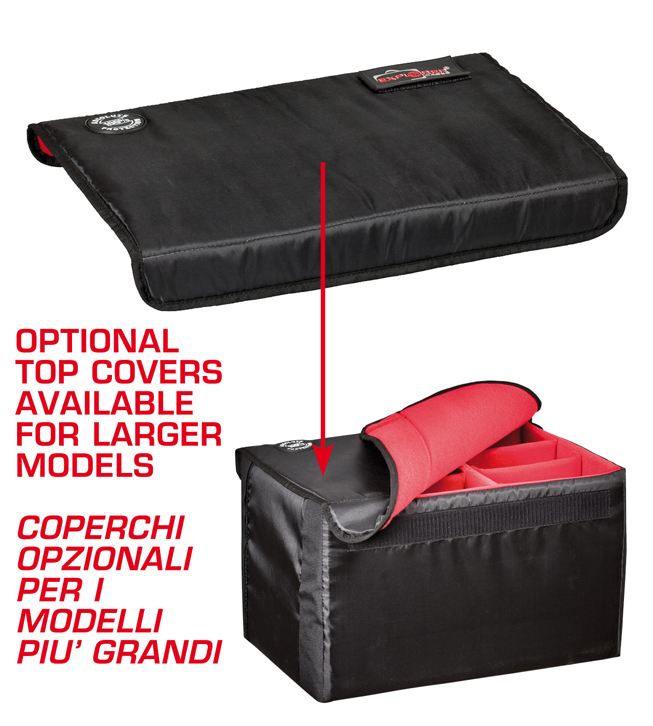

Mod. COV53

TOP COVER FOR DIV53

Mod. DIV53

PADDED DIVIDER FOR 5325-5326

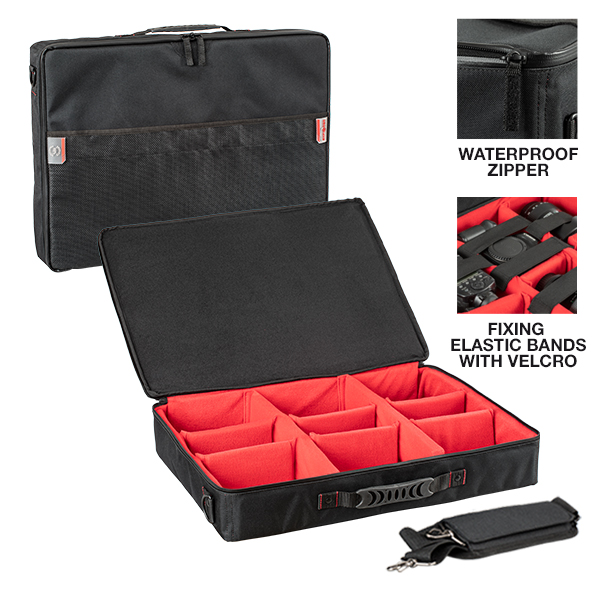

Mod. BAG-V

PADDED BAG WITH ADJUSTABLE DIVIDERS

Mod. PANEXPL53

LID PANEL WITH ORGANIZED POUCHES

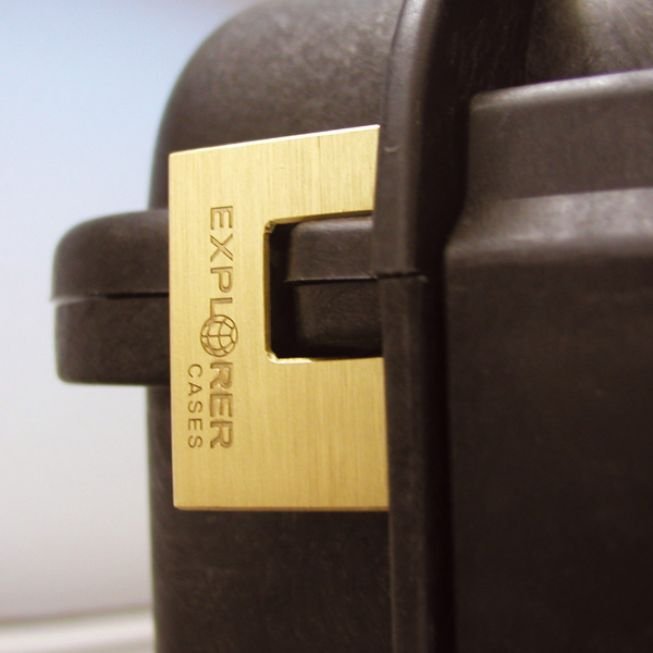

Mod. EXPL PADLOCK

Mod. EXPL PADLOCK

PATENTED HEAVY DUTY BRASS PADLOCK WITH KEYS

Mod. EXPL COMBILOCK

Mod. EXPL COMBILOCK

PATENTED COMBINATION PADLOCK

Mod. KIT.EXPL.PLUGS

Mod. KIT.EXPL.PLUGS

BLIND INSERT

Mod. EXPL TSA.DIGILOCK

Mod. EXPL TSA.DIGILOCK

TSA APPROVED PADLOCK WITH COMBINATION

Mod. KIT SUPP.EXPL.

Mod. KIT SUPP.EXPL.

METAL BRACKET - KIT SUPP. EXPL

Mod. KIT SUPP.PLAST.

Mod. KIT SUPP.PLAST.

PLASTIC BRACKET

Mod. FOAM.5325

FOAM SET FOR CASE 5325 AND 5326

Mod. LIDFOAM.53

Mod. LIDFOAM.53

CONVOLUTED FOAM SET FOR CASE 5325 AND 5326

Mod. KIN.1214

Metal clips for mod. 3005-4209-16-4412-19-4820-5140-5218-21-5325-26-5822-23-33-7626-30-35-41-7726-45-7814-9413-33-10826-40-11413-13513-27-15416

Mod. KIN.0969

Transparent PC name tag for mod. 4209-4216-4412-4419-4820-5218-5221-5325-5326-5822-5823-5833-7626-7630-7635-7641-7726-7745-7814-9413-9433-10826-10840-11413-13513-13527-15416-MUB65

Mod. KIN.0426

Side handle for models 5325-5326-5822-5823-5833-7630-7814-13513-13527-15416

Mod. KIN.0880

Side handle for models 5325-5326-5822-5823-5833-7630-7814-13513-13527-15416

Mod. KIN.0412

Side handle for models 5325-5326-5822-5823-5833-7630-7814-13513-13527-15416

Mod. KIN.0540

Rubber coated handle for models 4820-5325-5326-5822-5823-5833

Mod. KIN.0542

Rubber coated handle for models 4820-5325-5326-5822-5823-5833

Mod. KIN.0925

Polyurethane o-ring seal for models 5325-5326

Mod. KIN.0930

Mod. KIN.0446

Easy-opening latch for models from 3818 up

Mod. KIN.0435

Easy-opening latch for models from 3818 up

Mod. KIN.0434

Easy-opening latch for models from 3818 up

Mod. KIN.0541

Rubber coated handle for models 4820-5325-5326-5822-5823-5833

Mod. KIN.0522

Wheels for models 5326-5823-5833-7630-7641-7726-7745

Mod. KIN.0448

Side handle for models 5325-5326-5822-5823-5833-7630-7814-13513-13527-15416

Mod. KIN.0526

Mod. KIN.0883

Easy-opening latch for models from 3818 up

Mod. KIN.0495

Manual pressure release valve for models from 2712 up (except mod. 3005)

Download

Product data sheet condensed

Product data sheet complete

High res. picture: case open

High res. picture: case closed

Technical Drawings

Certifications

Certificate 5326 - IP67-DS-ST ITA-ING PU
