Home / Products / Mod. 7630.B.15U / 7630.B.15U

7630.B.15U

EAN: 8024482185491

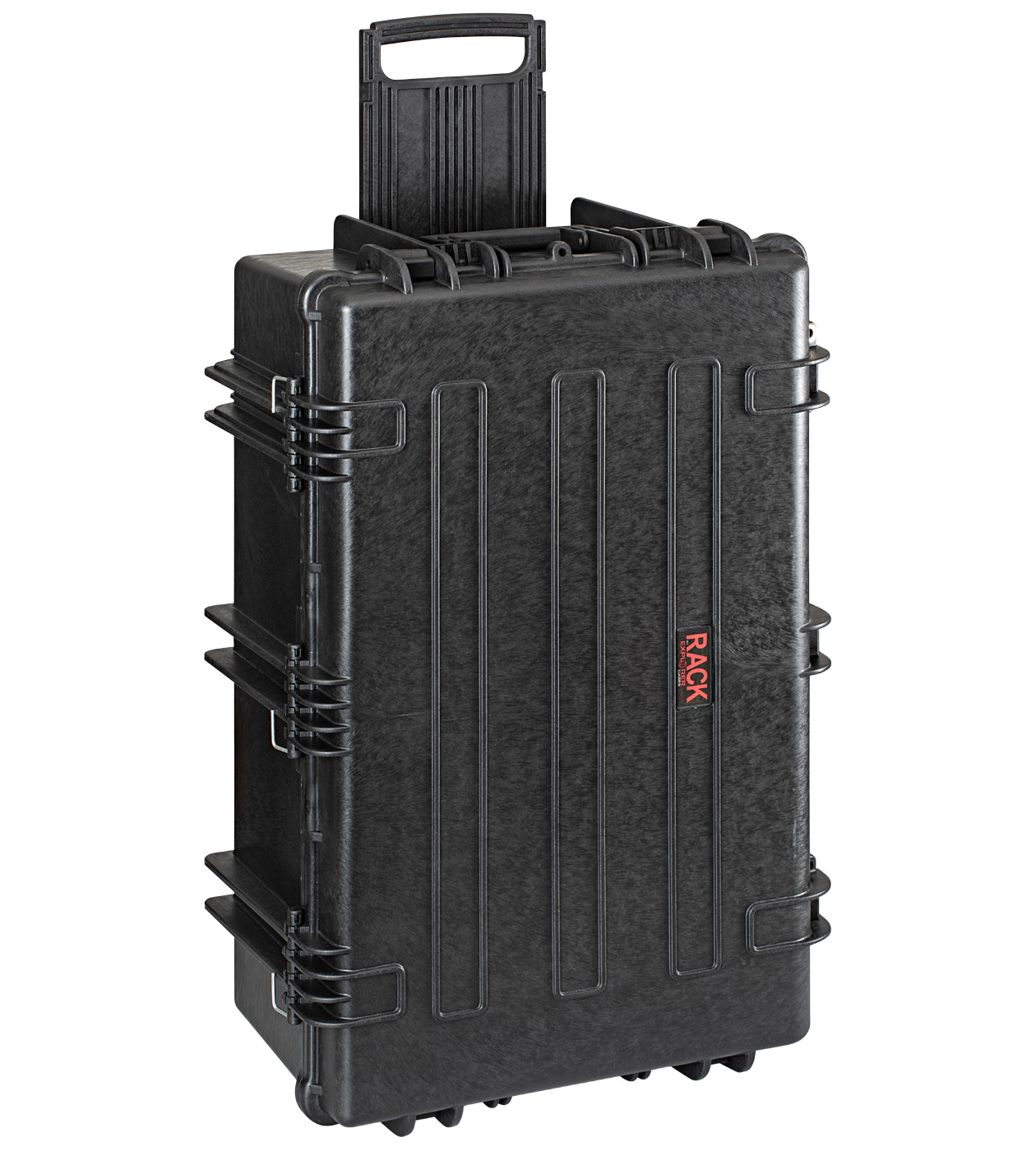

15U (units) rack-size waterproof case with wheels and trolley handle. This model is provided with an internal alu racking frame that can be pulled out by mean of the practical handles, for cabling or stand-alone use. Lids can be left in position or completely removed for an easier use on location. The provided M6 Cage Nuts and screws grants practical mounting of any device. RACK LENGTH: 220 mm LID DEPTH: 65 mm

Models

7630.B.15U

15 UNITS

Technical Specifications
Features
Accessories
Spare Parts

Internal dimensions

L Length 30 1/8 in

W Width 19 1/8 in

D Depth 12 in

Lid 2 3/8 in

Base 9 5/8 in

External dimensions

L Length 33 7/8 in

W Width 22 1/16 in

D Depth 14 in

Other data

Weight Empty 36.59 lbs

Weight With Foam lbs

Weight With Custom Foam lbs

Volume 29.85 gal

Bouyancy lbs/max

Operating Temperature °F min -27.4 / max +194

Internal dimensions

L Length 765 mm

W Width 485 mm

D Depth 305 mm

Lid 60 mm

Base 245 mm

External dimensions

L Length 860 mm

W Width 560 mm

D Depth 355 mm

Other data

Weight Empty 16.6 Kg

Weight With Foam Kg

Weight With Custom Foam Kg

Volume 113.1 lt

Bouyancy Kg/max

Operating Temperature °C min -33 / max 90

SELF OILING FREE RUNNING WHEELS

SELF OILING FREE RUNNING WHEELS

CORROSION PROOF METAL HINGES WITH LID STAY FEATURES

CORROSION PROOF METAL HINGES WITH LID STAY FEATURES

INTERNAL SLOTS

Internal slots for optional panel mounting brackets or panel mounting rings

LARGE FRONT HANDLE

LARGE FRONT HANDLE

JAM FREE LATCHES WITH EASY-OPENING MECHANISM

JAM FREE LATCHES WITH EASY-OPENING MECHANISM

(from model 3818 on)

SEALING O-RING

(Art. NEOSEAL + nr. art.)

MANUAL PRESSURE RELEASE VALVE

MANUAL PRESSURE RELEASE VALVE

The internal stop ring valve fromprevents being completely extracted (Art. PURGEVALVE.B)

PVC WATERPROOF I. D. REMOVABLE LABEL

PVC WATERPROOF I. D. REMOVABLE LABEL

(Art. LABELCOVER + nr. art.)

RETRACTABLE HANDLE

RETRACTABLE HANDLE

TWO MAN LIFT SIDE HANDLES

TWO MAN LIFT SIDE HANDLES

Mod. TOP ENVELOPE 15

Mod. TOP ENVELOPE 15

PROTECTIVE SLEEVE FOR PC 15"-15.6"

Mod. TOP ENVELOPE 13

Mod. TOP ENVELOPE 13

PROTECTIVE SLEEVE FOR PC 13"-13.3"

Mod. GBAG 76

PADDED GUN BAG FOR CASES 7630-7641 AND 7814

Mod. COV48-76

TOP COVER FOR DIV4820-DIV7630 AND DIV7641

Mod. DIV7630

PADDED DIVIDER FOR 7630

Mod. PANEXPL76

LID PANEL WITH ORGANIZED POUCHES

Mod. EXPL PADLOCK

Mod. EXPL PADLOCK

PATENTED HEAVY DUTY BRASS PADLOCK WITH KEYS

Mod. EXPL COMBILOCK

Mod. EXPL COMBILOCK

PATENTED COMBINATION PADLOCK

Mod. KIT.EXPL.PLUGS

Mod. KIT.EXPL.PLUGS

BLIND INSERT

Mod. EXPL TSA.DIGILOCK

Mod. EXPL TSA.DIGILOCK

TSA APPROVED PADLOCK WITH COMBINATION

Mod. KIT SUPP.EXPL.

Mod. KIT SUPP.EXPL.

METAL BRACKET - KIT SUPP. EXPL

Mod. LIDFOAM.76

Mod. LIDFOAM.76

CONVOLUTED FOAM SET FOR CASE 7630 AND 7641

Mod. KIT SUPP.PLAST.

Mod. KIT SUPP.PLAST.

PLASTIC BRACKET

Mod. FOAM.7630

FOAM SET FOR CASE 7630

Mod. KIN.1214

Metal clips for mod. 3005-4209-16-4412-19-4820-5140-5218-21-5325-26-5822-23-33-7626-30-35-41-7726-45-7814-9413-33-10826-40-11413-13513-27-15416

Mod. KIN.1364

Side handle for mod. 5131-7626HL-7635HL-7814HL

Mod. KIN.0969

Transparent PC name tag for mod. 4209-4216-4412-4419-4820-5218-5221-5325-5326-5822-5823-5833-7626-7630-7635-7641-7726-7745-7814-9413-9433-10826-10840-11413-13513-13527-15416-MUB65

Mod. KIN.0412

Side handle for models 5325-5326-5822-5823-5833-7630-7814-13513-13527-15416

Mod. KIN.0425

Mod. KIN.0446

Easy-opening latch for models from 3818 up

Mod. KIN.0522

Wheels for models 5326-5823-5833-7630-7641-7726-7745

Mod. KIN.0854

Polyurethane o-ring seal for models 7630-7641

Mod. KIN.0837

Mod. KIN.0415

Mod. KIN.0495

Manual pressure release valve for models from 2712 up (except mod. 3005)
