Home / Products / Mod. 7635HL / 7635HL.G

7635HL.G

EAN: 8024482187853

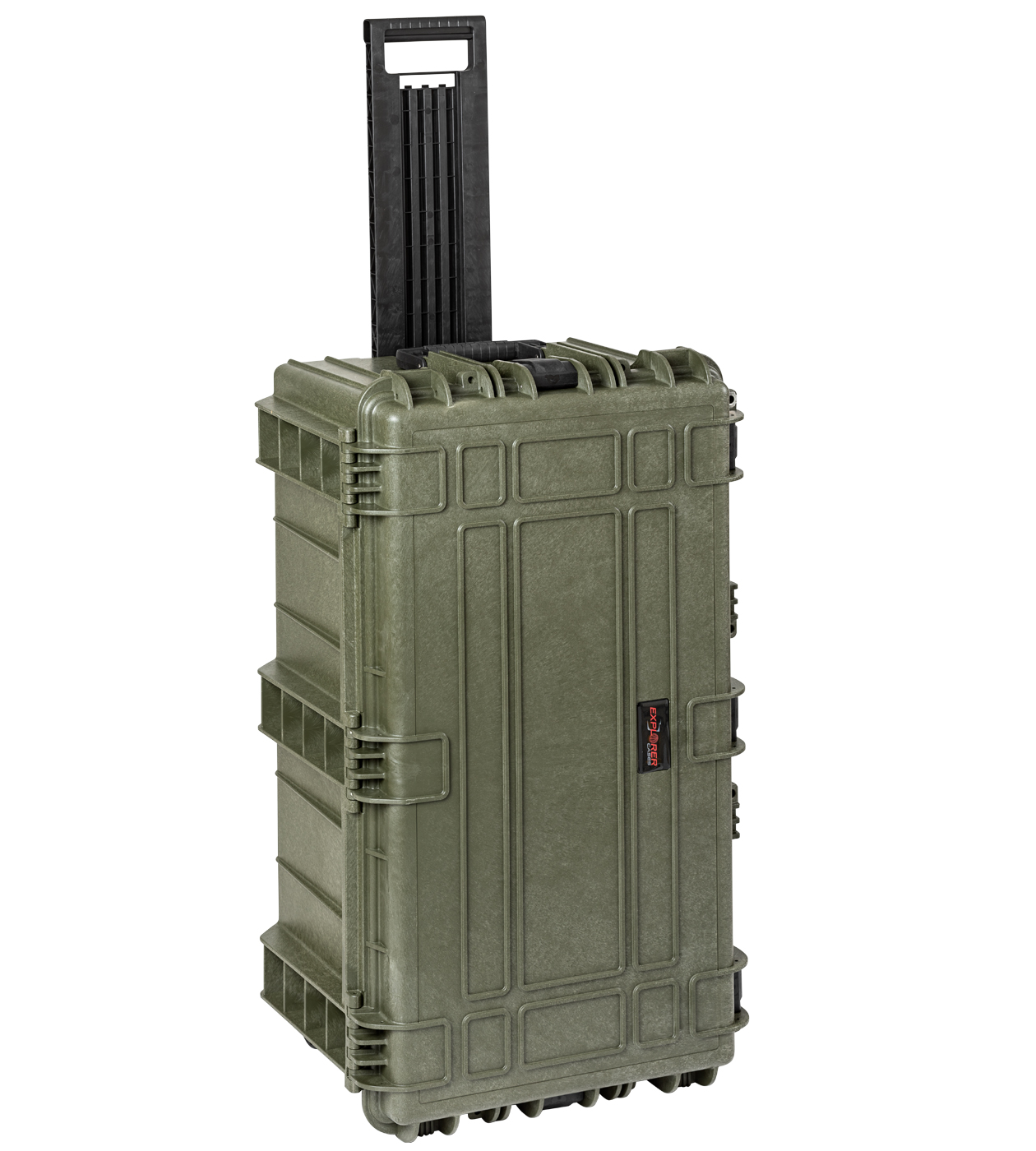

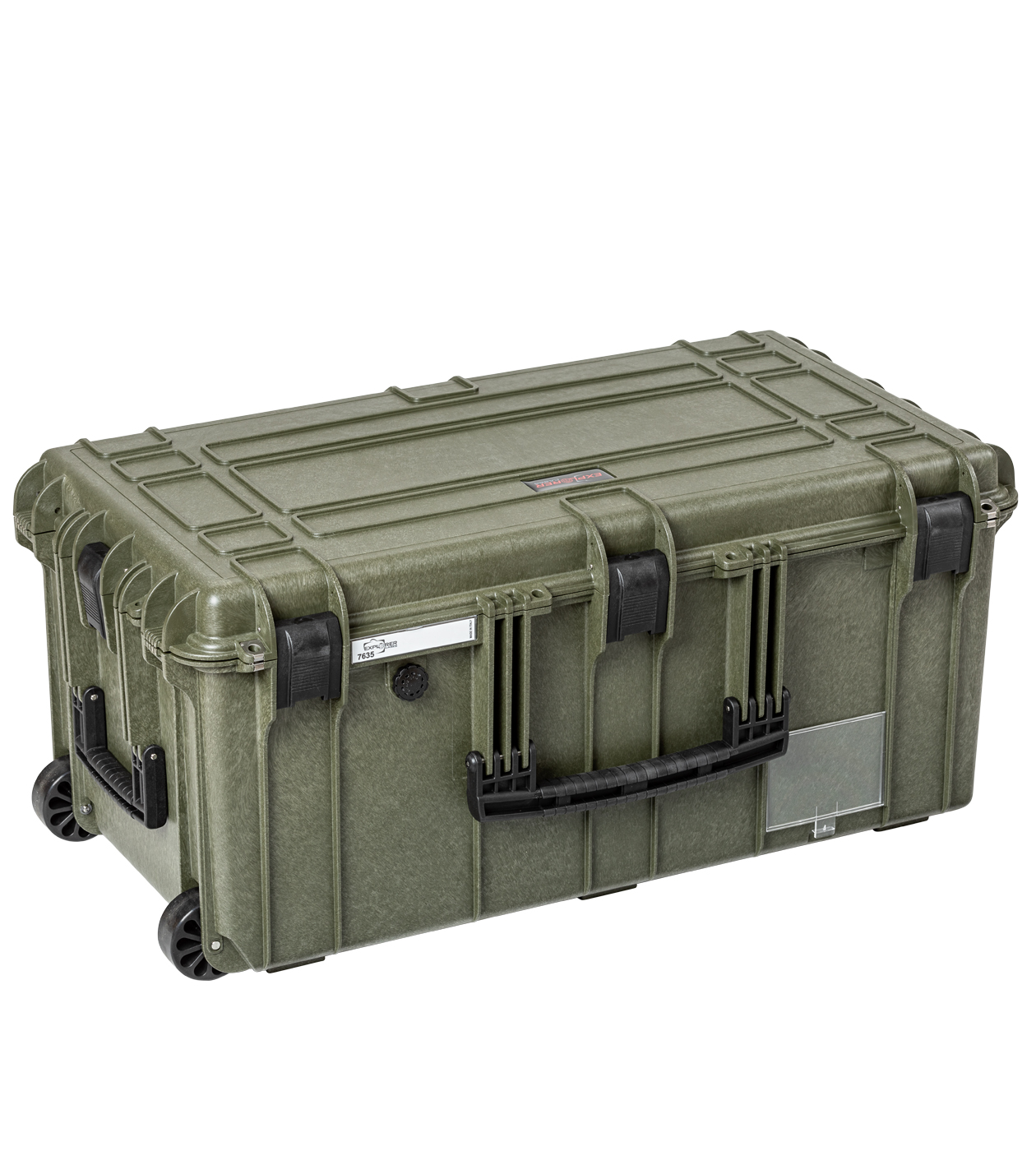

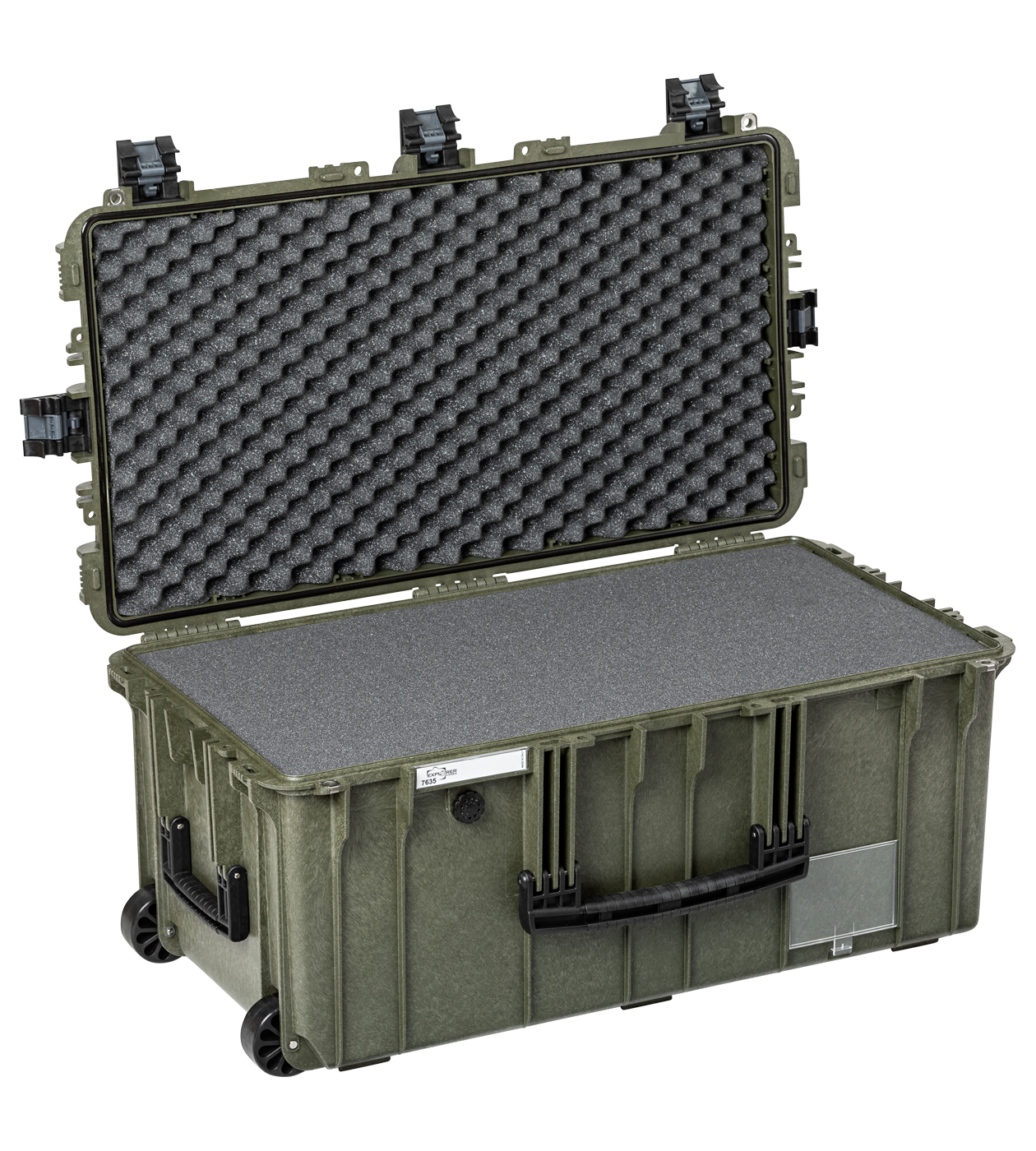

Large cases IP67 certified. Two man lift side handles and retractable handle. Self-oiling free running wheels. Four colors available and two internal standard configurations.

Models

7635HL.O E

orange empty

7635HL.O

orange w/pre-cubed foam

7635HL.G E

mil. green empty

7635HL.G

mil. green w/pre-cubed foam

7635HL.D E

des. sand empty

7635HL.D

des. sand w/pre-cubed foam

7635HL.B E

black empty

7635HL.B

black w/pre-cubed foam

Technical Specifications
Features
Accessories
Spare Parts

Internal dimensions

L Length 30 1/16 in

W Width 15 11/16 in

D Depth 13 3/4 in

Lid 1 15/16 in

Base 11 13/16 in

External dimensions

L Length 32 3/4 in

W Width 18 3/8 in

D Depth 14 1/2 in

Other data

Weight Empty 20.72 lbs

Weight With Foam 26.01 lbs

Weight With Custom Foam lbs

Volume 28.16 gal

Bouyancy lbs/max

Operating Temperature °F min -27.4 / max 194

Internal dimensions

L Length 763 mm

W Width 399 mm

D Depth 350 mm

Lid 50 mm

Base 300 mm

External dimensions

L Length 832 mm

W Width 466 mm

D Depth 369 mm

Other data

Weight Empty 9.4 Kg

Weight With Foam 11.8 Kg

Weight With Custom Foam Kg

Volume 106.6 lt

Bouyancy Kg/max

Operating Temperature °C min -33 / max 90

SELF OILING FREE RUNNING WHEELS

SELF OILING FREE RUNNING WHEELS

CORROSION PROOF METAL HINGES WITH LID STAY FEATURES

CORROSION PROOF METAL HINGES WITH LID STAY FEATURES

INTERNAL SLOTS

Internal slots for optional panel mounting brackets or panel mounting rings

LARGE FRONT HANDLE

LARGE FRONT HANDLE

JAM FREE LATCHES WITH EASY-OPENING MECHANISM

JAM FREE LATCHES WITH EASY-OPENING MECHANISM

(from model 3818 on)

SEALING O-RING

(Art. NEOSEAL + nr. art.)

PVC WATERPROOF I. D. REMOVABLE LABEL

PVC WATERPROOF I. D. REMOVABLE LABEL

(Art. LABELCOVER + nr. art.)

Mod. LIDFOAM.76CS

Mod. LIDFOAM.76CS

CONVOLUTED FOAM SET FOR CASE 7626 AND 7635

Mod. FOAM.7635

FOAM SET FOR CASE 7635

Mod. TOP ENVELOPE 15

Mod. TOP ENVELOPE 15

PROTECTIVE SLEEVE FOR PC 15"-15.6"

Mod. TOP ENVELOPE 13

Mod. TOP ENVELOPE 13

PROTECTIVE SLEEVE FOR PC 13"-13.3"

Mod. EXPL PADLOCK

Mod. EXPL PADLOCK

PATENTED HEAVY DUTY BRASS PADLOCK WITH KEYS

Mod. EXPL COMBILOCK

Mod. EXPL COMBILOCK

PATENTED COMBINATION PADLOCK

Mod. KIT.EXPL.PLUGS

Mod. KIT.EXPL.PLUGS

BLIND INSERT

Mod. EXPL TSA.DIGILOCK

Mod. EXPL TSA.DIGILOCK

TSA APPROVED PADLOCK WITH COMBINATION

Mod. KIT SUPP.EXPL.

Mod. KIT SUPP.EXPL.

METAL BRACKET - KIT SUPP. EXPL

Mod. KIT SUPP.PLAST.

Mod. KIT SUPP.PLAST.

PLASTIC BRACKET

Mod. KIN.1214

Metal clips for mod. 3005-4209-16-4412-19-4820-5140-5218-21-5325-26-5822-23-33-7626-30-35-41-7726-45-7814-9413-33-10826-40-11413-13513-27-15416

Mod. KIN.1381

Wheels for models 7626-7635-9433

Mod. KIN.1380

Polyurethane o-ring seal for models 7626-7635

Mod. KIN.1115

Red trigger pull release latch for models 7626-7635

Mod. KIN.1114

Red trigger pull release latch for models 7626-7635

Mod. KIN.1113

Red trigger pull release latch for models 7626-7635

Mod. KIN.1370

Side handle for mod. 5822-5823-5833-7626-7630-7635-7641-7726-7745-13513-13527

Mod. KIN.1368

Side handle for mod. 5822-5823-5833-7626-7630-7635-7641-7726-7745-13513-13527

Mod. KIN.1366

Side handle for mod. 5822-5823-5833-7626-7630-7635-7641-7726-7745-13513-13527

Mod. KIN.1364

Side handle for mod. 5131-7626HL-7635HL-7814HL

Mod. KIN.1363

Extractable handle for models 7626-7635

Mod. KIN.1362

Extractable handle for models 7626-7635

Mod. KIN.1361

Extractable handle for models 7626-7635

Mod. KIN.1360

Extractable handle for models 7626-7635

Mod. KIN.1371

Rubber coated handle for models 7626-7635-9433

Mod. KIN.1369

Rubber coated handle for models 7626-7635-9433

Mod. KIN.1367

Rubber coated handle for models 7626-7635-9433

Mod. KIN.1365

Rubber coated handle for models 7626-7635-9433

Mod. KIN.1224

transparent polycarbonate shipping label holders for mod. 5218-5221-7626-7635-7726-7745-9433

Mod. KIN.0969

Transparent PC name tag for mod. 4209-4216-4412-4419-4820-5218-5221-5325-5326-5822-5823-5833-7626-7630-7635-7641-7726-7745-7814-9413-9433-10826-10840-11413-13513-13527-15416-MUB65

Download

Product data sheet condensed

Product data sheet complete

High res. picture: case open

High res. picture: case closed

Technical Drawings

Certifications

Certificate 7635 - IP67-DS-ST-ITA-ING-PU

Ask Our Case Specialist
