7745.B

EAN: 8024482180564

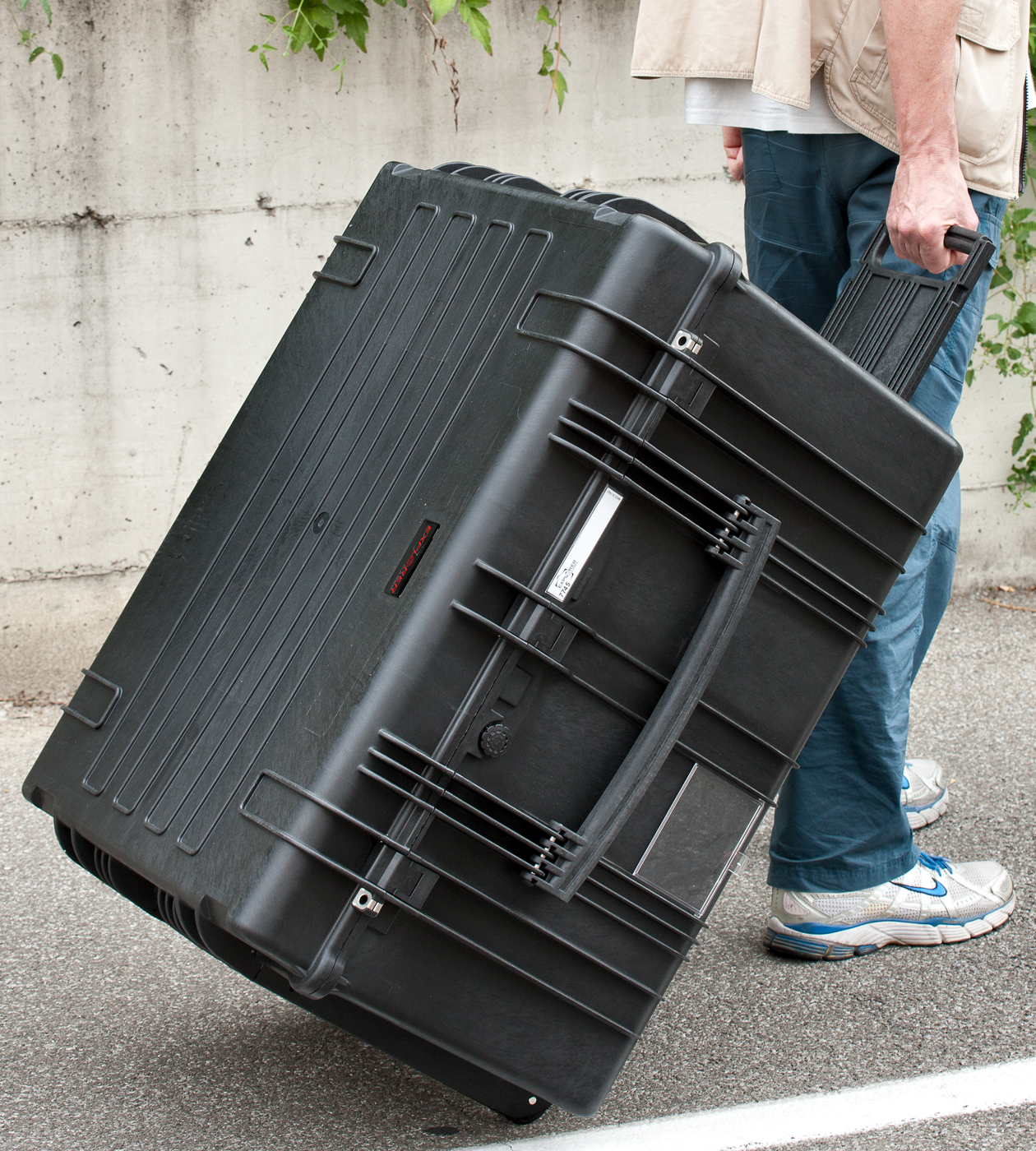

Light, water and dust tight cases. Floating and submersible until one meter (certified IP 67). Shipping label holder, two man lift side handles and retractable handle. Self-oiling free running wheels. Only for mod. 7745X.B: AIBOX Ready waterproof case with plastic interior racking, able to contain up to 19 AIBOXES in the 30, 60 or 95 mm. available depths.

Models

7745X.B

black organizers ready

7745.O E

orange empty

7745.O

orange w/pre-cubed foam

7745.G E

mil. green empty

7745.G

mil. green w/pre-cubed foam

7745.B E

black empty

7745.B

black w/pre-cubed foam

Technical Specifications
Features
Accessories
Spare Parts

Internal dimensions

L Length 30 5/16 in

W Width 22 13/16 in

D Depth 17 11/16 in

Lid 3 9/16 in

Base 14 3/16 in

External dimensions

L Length 32 15/16 in

W Width 25 1/4 in

D Depth 19 1/4 in

Other data

Weight Empty 34.17 lbs

Weight With Foam 43.65 lbs

Weight With Custom Foam lbs

Volume 52.83 gal

Bouyancy lbs/max

Operating Temperature °F min -27.4 / max +194

Internal dimensions

L Length 770 mm

W Width 580 mm

D Depth 450 mm

Lid 90 mm

Base 360 mm

External dimensions

L Length 836 mm

W Width 641 mm

D Depth 489 mm

Other data

Weight Empty 15.50 Kg

Weight With Foam 19.80 Kg

Weight With Custom Foam Kg

Volume 200 lt

Bouyancy Kg/max

Operating Temperature °C min -33 / max +90

AUTOMATIC VALVE

AUTOMATIC VALVE

Automatic pressure release valve.

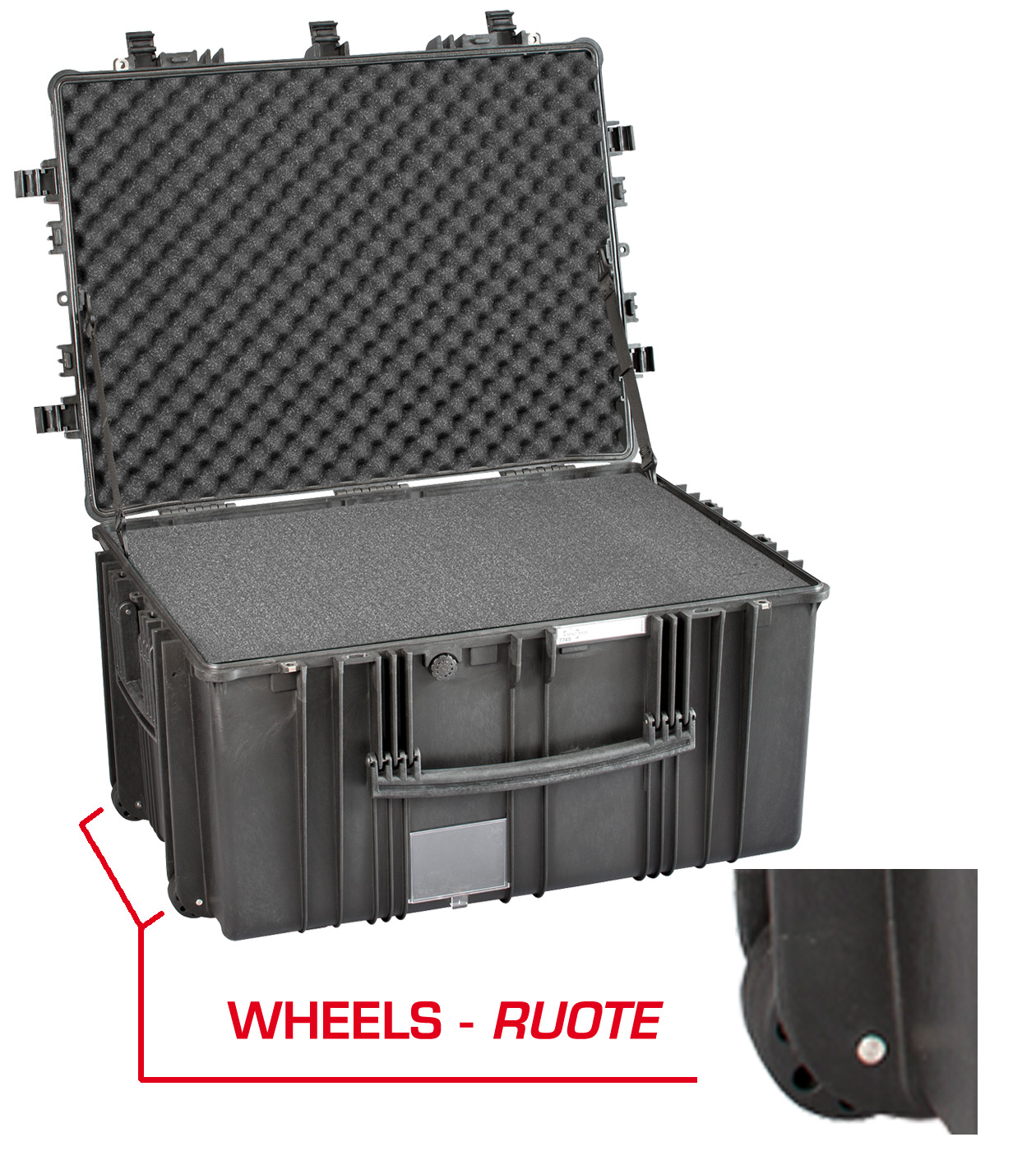

SELF OILING FREE RUNNING WHEELS

SELF OILING FREE RUNNING WHEELS

TWO MAN LIFT SIDE HANDLES

TWO MAN LIFT SIDE HANDLES

STAINLESS STEEL REINFORCED PADLOCKABLE POINTS

STAINLESS STEEL REINFORCED PADLOCKABLE POINTS

4 stainless steel clip-covers on the two frontal outer padlock points, to grant a better resistance to abrasion.

ABILITY TO STACK

ABILITY TO STACK

The special design of the bottom and the lid feet, grants a perfect stackability.

SHIPPING LABEL HOLDER (7745)

SHIPPING LABEL HOLDER (7745)

Polycarbonate removable label

Mod. LIDFOAM.77

Mod. LIDFOAM.77

CONVOLUTED FOAM SET FOR CASE 7726 AND 7745

Mod. FOAM.7745

FOAM SET FOR CASE 7745

Mod. TOP ENVELOPE 15

Mod. TOP ENVELOPE 15

PROTECTIVE SLEEVE FOR PC 15"-15.6"

Mod. TOP ENVELOPE 13

Mod. TOP ENVELOPE 13

PROTECTIVE SLEEVE FOR PC 13"-13.3"

Mod. PANEXPL77

LID PANEL WITH ORGANIZED POUCHES

Mod. DRN77

PADDED DIVIDER FOR DRONE FOR 7745

Mod. COV77

TOP COVER FOR DIV77 AND DIV7745

Mod. DIV7745

PADDED DIVIDER FOR 7745

Mod. DIV77

PADDED DIVIDER FOR 7726-7745

Mod. EXPL PADLOCK

Mod. EXPL PADLOCK

PATENTED HEAVY DUTY BRASS PADLOCK WITH KEYS

Mod. EXPL COMBILOCK

Mod. EXPL COMBILOCK

PATENTED COMBINATION PADLOCK

Mod. KIT.EXPL.PLUGS

Mod. KIT.EXPL.PLUGS

BLIND INSERT

Mod. EXPL TSA.DIGILOCK

Mod. EXPL TSA.DIGILOCK

TSA APPROVED PADLOCK WITH COMBINATION

Mod. KIT SUPP.EXPL.

Mod. KIT SUPP.EXPL.

METAL BRACKET - KIT SUPP. EXPL

Mod. KIT SUPP.PLAST.

Mod. KIT SUPP.PLAST.

PLASTIC BRACKET

Mod. KIN.1214

Metal clips for mod. 3005-4209-16-4412-19-4820-5140-5218-21-5325-26-5822-23-33-7626-30-35-41-7726-45-7814-9413-33-10826-40-11413-13513-27-15416

Mod. KIN.1388

Polyurethane o-ring seal for models 7726 and 7745

Mod. KIN.1370

Side handle for mod. 5822-5823-5833-7626-7630-7635-7641-7726-7745-13513-13527

Mod. KIN.1368

Side handle for mod. 5822-5823-5833-7626-7630-7635-7641-7726-7745-13513-13527

Mod. KIN.1366

Side handle for mod. 5822-5823-5833-7626-7630-7635-7641-7726-7745-13513-13527

Mod. KIN.1364

Side handle for mod. 5131-7626HL-7635HL-7814HL

Mod. KIN.1224

transparent polycarbonate shipping label holders for mod. 5218-5221-7626-7635-7726-7745-9433

Mod. KIN.0969

Transparent PC name tag for mod. 4209-4216-4412-4419-4820-5218-5221-5325-5326-5822-5823-5833-7626-7630-7635-7641-7726-7745-7814-9413-9433-10826-10840-11413-13513-13527-15416-MUB65

Mod. KIN.0425

Mod. KIN.0881

Mod. KIN.0446

Easy-opening latch for models from 3818 up

Mod. KIN.0435

Easy-opening latch for models from 3818 up

Mod. KIN.0434

Easy-opening latch for models from 3818 up

Mod. KIN.0522

Wheels for models 5326-5823-5833-7630-7641-7726-7745

Mod. KIN.0411

Side handle for mod. 7641-7726-7745

Mod. KIN.0422

Side handle for mod. 7641-7726-7745

Mod. KIN.0421

Side handle for mod. 7641-7726-7745

Mod. KIN.0424

Mod. KIN.0883

Easy-opening latch for models from 3818 up

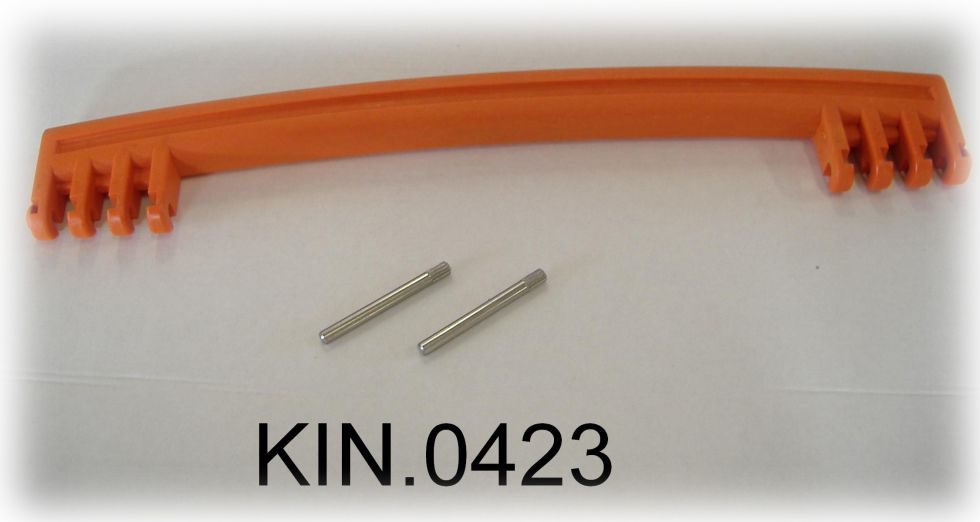

Mod. KIN.0423

Download

Product data sheet condensed

Product data sheet complete

High res. picture: case open

High res. picture: case closed

Technical Drawings

Certifications

Certificate 7745 - IP67-DS-ST ITA-ING PU
