Home / Products / Mod. 9413 / 9413.B E

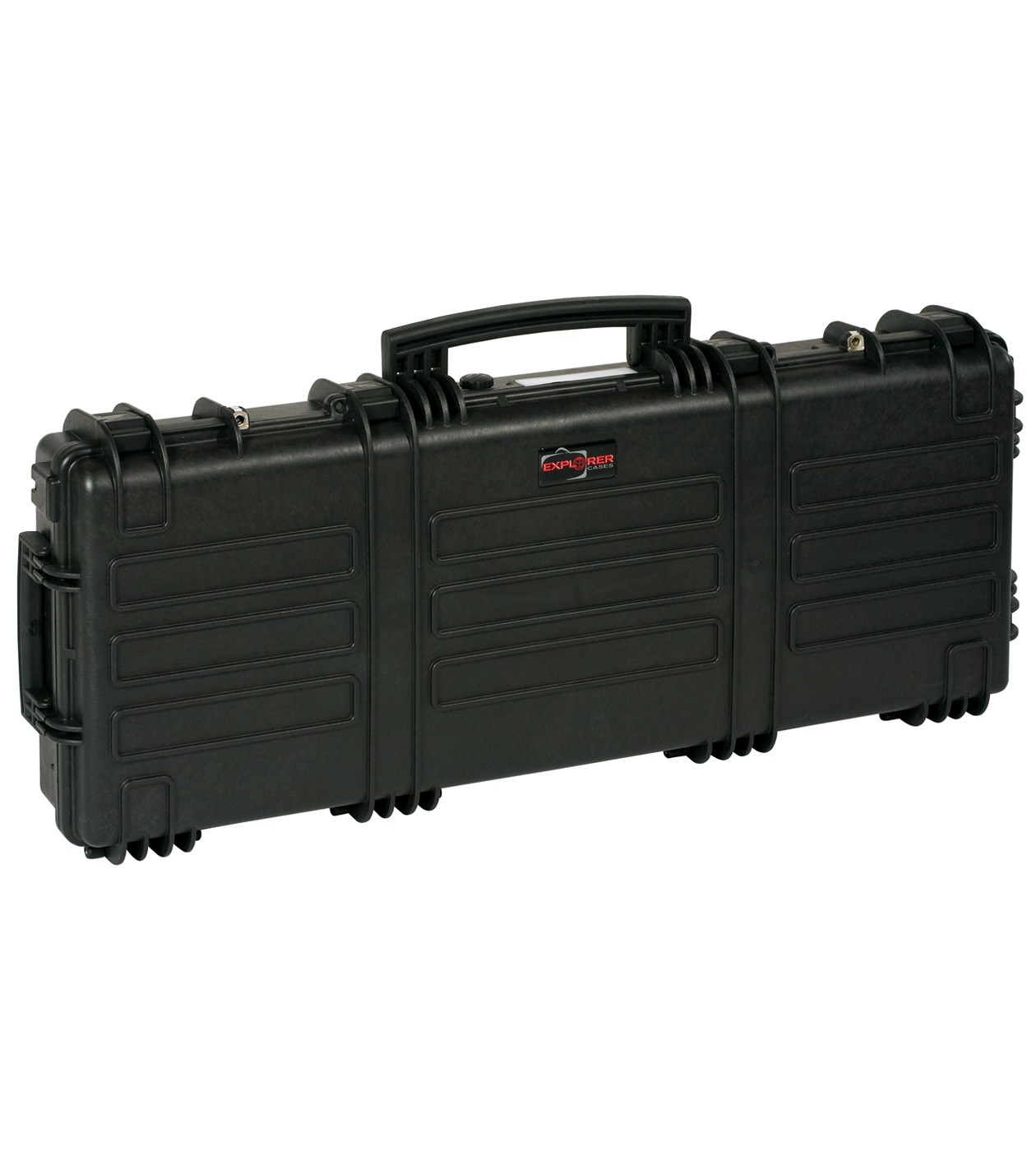

9413.B E

EAN: 8024482175942

Short gun cases designed to accommodate rifles and accessories. Double action latches and PU gasket. Wheels with bearings.

Models

9413.GGB

mil. green with gun bag

9413.GFF

mil. green w/high density full foam

9413.G E

mil. green empty

9413.GCV

mil. green w/convoluted foam

9413.G

mil. green w/pre-cubed foam

9413.DGB

des. sand with gun bag

9413.DFF

des. sand w/high density full foam

9413.D E

des. sand empty

9413.DCV

des. sand w/convoluted foam

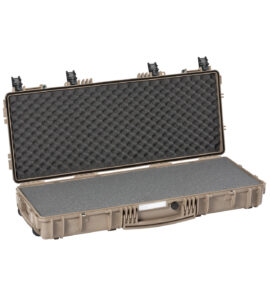

9413.D

des. sand w/pre-cubed foam

9413.BGB

black with gun bag

9413.BFF

black w/high density full foam

9413.B E

black empty

9413.BCV

black w/convoluted foam

9413.B

black w/pre-cubed foam

Technical Specifications
Features
Accessories
Spare Parts

Internal dimensions

L Length 36 15/16 in

W Width 13 7/8 in

D Depth 5 3/8 in

Lid 1 11/16 in

Base 3 11/16 in

External dimensions

L Length 38 15/16 in

W Width 16 5/16 in

D Depth 6 3/16 in

Other data

Weight Empty 14.77 lbs

Weight With Foam 17.19 lbs

Weight With Custom Foam lbs

Volume 11.96 gal

Bouyancy lbs/max

Operating Temperature °F min -27.4 / max +194

Internal dimensions

L Length 939 mm

W Width 352 mm

D Depth 137 mm

Lid 43 mm

Base 94 mm

External dimensions

L Length 989 mm

W Width 415 mm

D Depth 157 mm

Other data

Weight Empty 6.70 Kg

Weight With Foam 7.80 Kg

Weight With Custom Foam Kg

Volume 45.30 lt

Bouyancy Kg/max

Operating Temperature °C min -33 / max +90

AUTOMATIC VALVE

AUTOMATIC VALVE

Automatic pressure release valve.

CORROSION PROOF METAL HINGES WITH LID STAY FEATURES

CORROSION PROOF METAL HINGES WITH LID STAY FEATURES

INTERNAL SLOTS

Internal slots for optional panel mounting brackets or panel mounting rings

LARGE FRONT HANDLE

LARGE FRONT HANDLE

JAM FREE LATCHES WITH EASY-OPENING MECHANISM

JAM FREE LATCHES WITH EASY-OPENING MECHANISM

(from model 3818 on)

SEALING O-RING

(Art. NEOSEAL + nr. art.)

PVC WATERPROOF I. D. REMOVABLE LABEL

PVC WATERPROOF I. D. REMOVABLE LABEL

(Art. LABELCOVER + nr. art.)

OPTIONAL SHOULDER STRAP (universal)

OPTIONAL SHOULDER STRAP (universal)

(art. SHOULDERKIT.U)

TWO MAN LIFT SIDE HANDLES

TWO MAN LIFT SIDE HANDLES

WHEELS WITH BEARINGS

WHEELS WITH BEARINGS

Mod. GSLEEVE 94

Mod. GSLEEVE 94

PADDED GUN BAG FOR CASE 9413

Mod. TOP ENVELOPE 15

Mod. TOP ENVELOPE 15

PROTECTIVE SLEEVE FOR PC 15"-15.6"

Mod. TOP ENVELOPE 13

Mod. TOP ENVELOPE 13

PROTECTIVE SLEEVE FOR PC 13"-13.3"

Mod. HBAG94

PADDED TWIN GUN BAG FOR CASE 9413

Mod. SHOULDERKIT.U

Mod. SHOULDERKIT.U

ADJUSTABLE SHOULDER KIT

Mod. BACKPACK KIT

Mod. BACKPACK KIT

HANDY BACKPACK CARRYING SYSTEM FOR GUNBAGS

Mod. GBAG 94

PADDED GUN BAG FOR CASES 9413-9433

Mod. EXPL PADLOCK

Mod. EXPL PADLOCK

PATENTED HEAVY DUTY BRASS PADLOCK WITH KEYS

Mod. KIT.DL

DIGITAL LOCK FOR CASES 9413, 9433, 11413, 13513, 13527, 15416, 10826 AND 10840

Mod. EXPL COMBILOCK

Mod. EXPL COMBILOCK

PATENTED COMBINATION PADLOCK

Mod. KIT.EXPL.PLUGS

Mod. KIT.EXPL.PLUGS

BLIND INSERT

Mod. EXPL TSA.DIGILOCK

Mod. EXPL TSA.DIGILOCK

TSA APPROVED PADLOCK WITH COMBINATION

Mod. KIT SUPP.EXPL.

Mod. KIT SUPP.EXPL.

METAL BRACKET - KIT SUPP. EXPL

Mod. KIT SUPP.PLAST.

Mod. KIT SUPP.PLAST.

PLASTIC BRACKET

Mod. LIDFOAM.94

Mod. LIDFOAM.94

CONVOLUTED FOAM SET FOR CASE 9413-9433

Mod. FOAM.9413

FOAM SET FOR CASE 9413

Mod. KIN.1214

Metal clips for mod. 3005-4209-16-4412-19-4820-5140-5218-21-5325-26-5822-23-33-7626-30-35-41-7726-45-7814-9413-33-10826-40-11413-13513-27-15416

Mod. KIN.1283

Grey trigger pull release latch for models 7814-9413-9433-11413-13513-13527

Mod. KIN.1371

Rubber coated handle for models 7626-7635-9433

Mod. KIN.1369

Rubber coated handle for models 7626-7635-9433

Mod. KIN.1367

Rubber coated handle for models 7626-7635-9433

Mod. KIN.1365

Rubber coated handle for models 7626-7635-9433

Mod. KIN.1379

Handle for mod. 9413 (front handle) and mod. 10826-10840 (lateral short handle)

Mod. KIN.0969

Transparent PC name tag for mod. 4209-4216-4412-4419-4820-5218-5221-5325-5326-5822-5823-5833-7626-7630-7635-7641-7726-7745-7814-9413-9433-10826-10840-11413-13513-13527-15416-MUB65

Mod. KIN.0545

Wheels for models 9413-11413-13513

Mod. KIN.0419

Side handle for models 9413-11413

Mod. KIN.0428

Side handle for models 9413-11413

Mod. KIN.0416

Handle (mod. 9413 front handle – mod. 10826-10840 lateral short handle)

Mod. KIN.0417

Handle (mod. 9413 front handle – mod. 10826-10840 lateral short handle)

Mod. KIN.0882

Side handle for models 9413-11413

Mod. KIN.0865

Download

Product data sheet condensed

Product data sheet complete

High res. picture: case open

High res. picture: case closed

Technical Drawings

Certifications

Certificate 9413 - IP67-DS-ST ITA-ING PU

Ask Our Case Specialist
